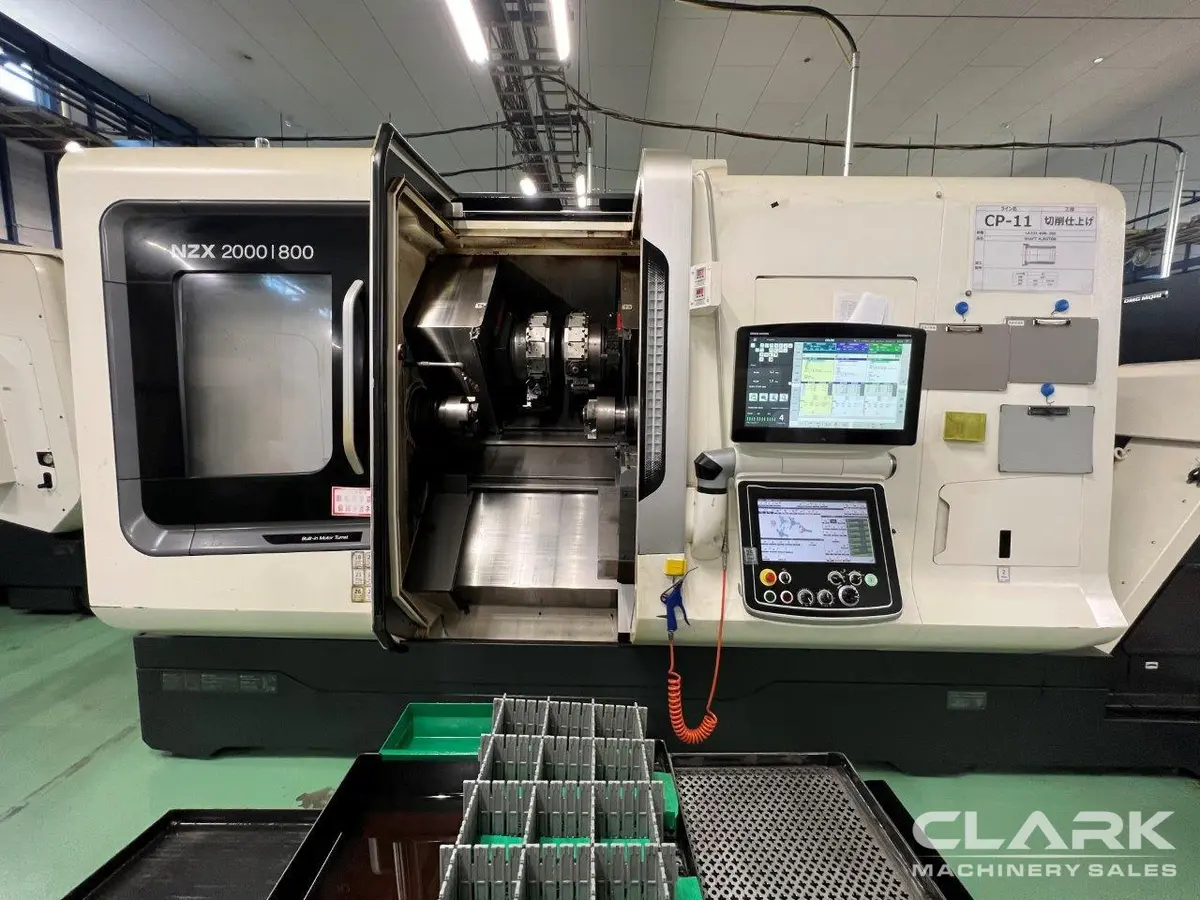

2019 DMG MORI NZX2000/800STY3
CNC Lathes Multi-Axis
This late model DMG Mori NZX2000/800STY3 has three turrets, all with Y-axis. Machine comes with 2.5" bar capacity, Celos control and high pressure coolant.
| SWING OVER BED | 31.5" |
| MAX CUTTING DIAMETER | 12.5" |
| MAX CUTTING LENGTH | 31.8" |
| DISTANCE BETWEEN CENTERS | 44.4" |
| X-AXIS TRAVEL | 8.3" |
| Y-AXIS TRAVEL | 4.3" |
| Z-AXIS TRAVEL | 11.8" |
| CHUCK SIZE | 8" |
| BAR CAPACITY | 2.5" |
| SPINDLE BORE | 2.9" |
| SPINDLE NOSE | A2-6 |
| SPINDLE MOTOR | 33 hp |
| SPINDLE SPEED | 5,000 RPM |
| SUB SPINDLE | Yes |
| SUB SPINDLE - CHUCK SIZE | 8" |
| SUB SPINDLE - BAR CAPACITY | 2.5" |
| SUB SPINDLE - SPINDLE BORE | 2.9" |
| SUB SPINDLE - SPINDLE NOSE | A2-6 |
| SUB SPINDLE - SPINDLE MOTOR | 33 hp |
| SUB SPINDLE - SPINDLE SPEED | 5,000 RPM |
| SUB SPINDLE / W-AXIS TRAVEL | 34.3" |
| TURRET 2 - X-AXIS TRAVEL | 8.3" |
| TURRET 2 - Z-AXIS TRAVEL | 31.9" |
| TURRET CAPACITY | 16 |
| LIVE MILLING | Yes |
| LIVE MILLING SPEED | 12,000 RPM |
| LIVE MILLING MOTOR | 10 hp |
| TURRET 2 CAPACITY | 16 |
| Y-AXIS | Yes |
| Dimensions | 199.3" X 111.6" X 91.3" |
| Weight | 21,120 LBS |
CELOS (F32IB) CNC CONTROL
21.5" COLOR ERGOLINE TOUCH TFT
TWIN SPINDLES
(3) TURRETS WITH Y-AXIS
(2) MICRO CENTRIC MBS 200 COLLET CHUCKS
CHIP BLASTER CHIP CHILLER HIGH PRESSURE COOLANT SYSTEM
COOLANT GUN
CHUCK TOP COOLANT
AIR PURGE (LEFT & RIGHT SPINDLE)
AIR BLOW FOR TOOL TIP (T1,T2,T3)
X-AXIS DIRECT SCALE FEEDBACK (X1,X2,X3)
CHIP CONVEYOR (SIDE EXIT SCRAPER TYPE)
ETHERNET CAPABILITY
AUTOMATIC DOOR
TOOL PRESETTER (LEFT & RIGHT SPINDLE)
(5) EXTERNAL M-CODES
3D COORDINATE CONVERSION
TOOL RETRACT AND RECOVER
HOBBING FUNCTION
X-AXIS DIRECTION JIS/ISO
C-AXIS HIGH-PRECISION INDEXING
4 COLOR SIGNAL LIGHT
BUILT IN WORK LIGHT
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
