2012 HAAS DS-30SS
CNC Lathes Multi-Axis

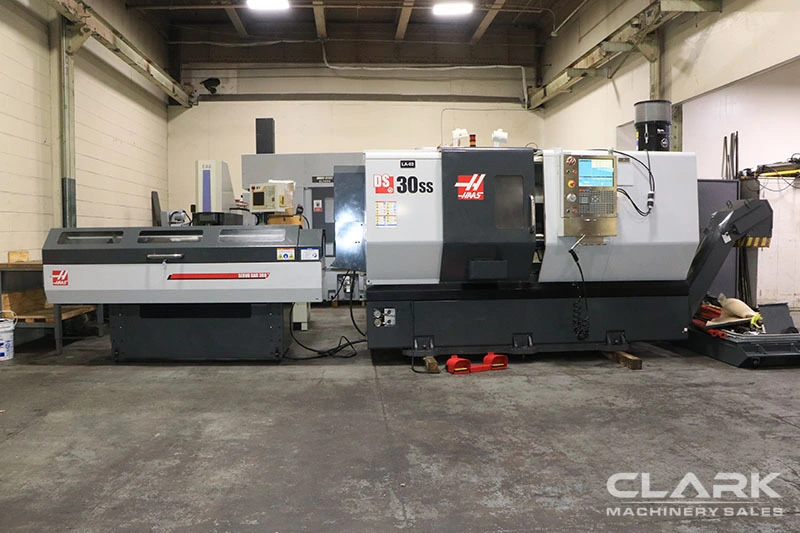

2012 HAAS DS-30SS CNC Lathe, sub-spindle, 30 hp, 4,800 RPM, 12-station/24 indexable turret. Includes HAAS barfeeder, tool eye, HENNIG chip conveyor. Immediate availability.
| SWING OVER BED | 31.75" |
| SWING OVER CROSS SLIDE | 20.75" |
| MAX CUTTING DIAMETER | 16" |
| MAX CUTTING LENGTH | 26.11" |
| X-AXIS TRAVEL | 12.5" |
| Z-AXIS TRAVEL | 26" |
| CHUCK SIZE | 8" |
| BAR CAPACITY | 2" |
| SPINDLE BORE | 2.44" |
| SPINDLE NOSE | A2-6 |
| SPINDLE MOTOR | 30 hp |
| SPINDLE SPEED | 4,800 RPM |
| SUB SPINDLE | Yes |
| SUB SPINDLE - SPINDLE NOSE | A2-5 |
| SUB SPINDLE - SPINDLE MOTOR | 20 hp |
| SUB SPINDLE - SPINDLE SPEED | 4,800 RPM |
| TURRET CAPACITY | 12 STATION (24 TOTAL POSITIONS) |
| Dimensions | 130" X 67" X 72" |
| Weight | 16,000 LBS |
HAAS CNC CONTROL
HAAS BARFEEDER - MODEL BAR 48B WITH SPINDLE LINERS
ROYAL COLLET CHUCKS FOR MAIN & SUB
SUB SPINDLE
12-STATION TURRET WITH 24 TOTAL POSITIONS
TOOL EYE
HIGH PRESSURE COOLANT
PARTS CATCHER
HENNIG CHIP CONVEYOR
ROYAL MIST FILTER
AUTO CHIP BLAST
RIGID TAPPING
SPINDLE ORIENTATION
HIGH INTENSITY LIGHTING
MISCELLANEOUS TOOLING
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** MACHINE IS A 2-AXIS TURRET WITH SUB-SPINDLE. GREAT FOR 2-AXIS PRODUCTION WORK.
