| TABLE LENGTH | 46" | 1,168.4 mm |
| TABLE WIDTH | 20" | 508 mm |
| TABLE CAPACITY | 2,970 lb | 1,347.2 kg |
| X-AXIS TRAVEL | 40" | 1,016 mm |
| Y-AXIS TRAVEL | 20" | 508 mm |
| Z-AXIS TRAVEL | 20" | 508 mm |
| SPINDLE SPEED | 10,000 RPM | 10,000 RPM |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 20 | 20 |
| RAPID TRAVERSE - X AXIS | 1,102 in/min. | 28 m/min. |
| ROTARY OR TRUNNION | Yes | Yes |
| APPROX MACHINE WEIGHT | 9,039 lb | 4,100 kg |
| Weight | 9039 LBS | 9039 LBS |

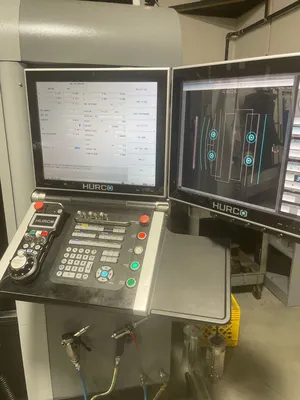

WINMAX CNC CONTROL

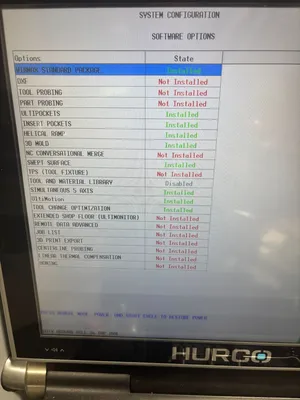

WINMAX STANDARD PACKAGE
SIMULTANEOUS 5-AXIS CAPABILITY IN CONTROL
COOLANT RING
SECOND SCREEN
ULTIMOTION
ULTIPOCKETS
INSERT POCKETS
TOOL CHANGE OPTIMIZATION
INSERT POCKETS
HELICAL RAMP
3D MOLD
SWEPT SURFACE

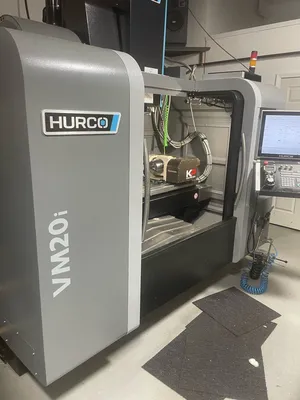

NOTE: KOMA ROTARY TABLE SEEN IN PICTURES NOT INCLUDED IN SALE

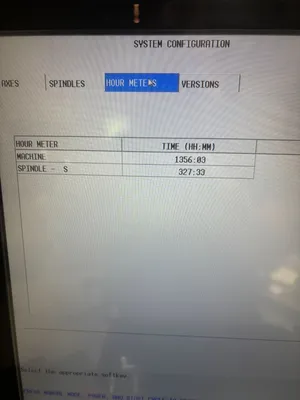

HOURS OF USE AS OF 9/15/2025:
* MACHINE TIME: 1,356 HOURS
* SPINDLE TIME: 327 HOURS
COST FOR ABOVE SYSTEM IF PURCHASED NEW: $110,000
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
