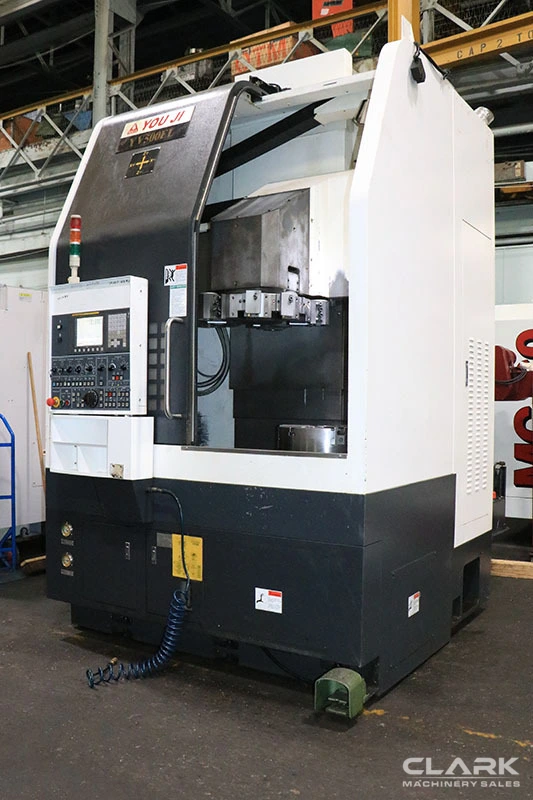

2018 YOU-JI YV-500EL | Boring Mills & VTLs

Sell Your YOU-JI YV-500EL
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your YOU-JI YV-500EL

Overview

Type:
Boring Mills & VTLs
Manufacturer:
YOU-JI
Model:
YV-500EL
Year:
2018
Stock #:
498896
Status:
For Sale

Description

Used YOU JI YV-500EL, 2018 Boring Mill & VTL in good condition. Max swing: 29.5", cutting diameter: 31", chuck size: 18", max weight: 2,640 lb, Z-axis travel: 24.4", spindle speed: 2,000 RPM, 50 hp motor, 10 tool positions. Equipped with FANUC 0i TF CNC, chip conveyor, 575 PSI coolant.

MAX SWING29.5"749.3 mm
MAX CUTTING DIAMETER31"787.4 mm
CHUCK SIZE18"457.2 mm
MAX WEIGHT ON TABLE2,640 lb1,197.5 kg
Z-AXIS TRAVEL24.4"619.76 mm
SPINDLE SPEED2,000 RPM2,000 RPM
SPINDLE MOTOR50 hp37.3 kW
TOOL POSITIONS (ATC)1010
Dimensions116" X 71" X 131"116" X 71" X 131"
Weight26400 LBS26400 LBS

FANUC 0i TF CNC CONTROL
18" 3-JAW CHUCK
CHIP CONVEYOR
575 PSI COOLANT PRESSURE

** AVAILABLE FOR IMMEDIATE INSPECTION &PURCHASE
