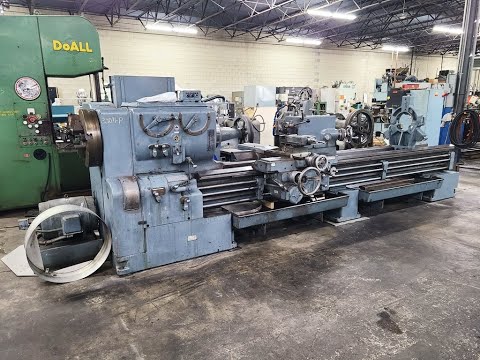

1965 36" X 120" LEBLOND HOLLOW SPINDLE LATHE
ConditionUsed
1 available
1965 LeBlond Hollow Spindle Lathe, 36" x 120", ideal for oil field work. Features 9.25" spindle bore, 20 hp motor, rapid traverse, and multiple chucks. Comes with full set of (4) chucks of varying sizes. Lightly used, available now.
SWING.................... 36"
DISTANCE BETWEEN CENTERS. 120"
BED WIDTH................ 24"
OVERALL BED LENGTH....... 144"
(18) SPINDLE SPEEEDS..... 10 - 362 RPM
(60) FEEDS............... .0045 - .269 THOUSANDTHS PER REVE
(60) INCH THREADS........ 1 - 60 THREADS PER INCH
HOLE THROUGH SPINDLE..... 9.25"
SPINDLE NOSE............. USES FLAT BACK CHUCKS W/ 2 DIFFERENT BOLT HOLE DIAMETERS FOR 3&4 JAW CHUCKS
TAPER IN TAILSTOCK....... #5 MORES
TAILSTOCK TRAVEL......... 20"
APPROX MACHINE DIMENSIONS 228" X 72" X 74"
(2) 21" 3-JAW CHUCKS WITH 9.25" HOLES
(2) 21" 4-JAW CHUCKS WITH 9.25" HOLES (CUSHMAN BRAND)
(1) 25" FACE PLATE
11" HOLD DIAMETER BRONZE BUSHING TYPE STEADY REST
QUCK CHANGE TOOL POST (NO HOLDERS)
2-SPEED TAILSTOCK WITH THRU HOLE
TAPER ATTACHMENT (BED CLAMP IS MISSING)
RAPID TRAVERSE TO CARRIAGE & CROSS SLIDE
HARD REPLACEABLE BED WAYS IN GOOD CONDITION
(2) ROLL OUT REMOVEABLE CHIP PANS
INDEPENDENT FLOOR MOUNTED MAIN SPINDLE MOTOR
20 HP MAIN MOTOR
WIRED FOR 3 PHASE, 60 CYCLE, 220/440 VOLTS
CURRENTLY WIRED FOR 440 VOLTS
NOTE: MACHINE CAME OUT OF GOVERNMENT FACILITY. LIGHTLY USED.
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
