2005 HAAS TL-2, TAILSTOCK 5500 HOURS

2005 HAAS TL-2, TAILSTOCK 5500 HOURS

Sell Your HAAS TL-2
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your HAAS TL-2

Overview

Type:
CNC Lathes 2-Axis
Manufacturer:
HAAS
Model:
TL-2
Condition:
Very Good
Year:
2005
Stock #:
499125
Status:
For Sale

Description

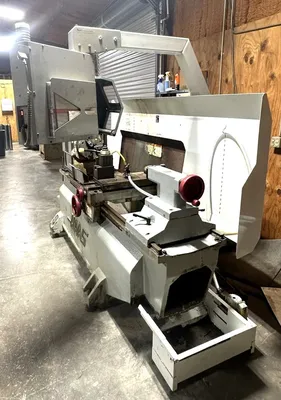

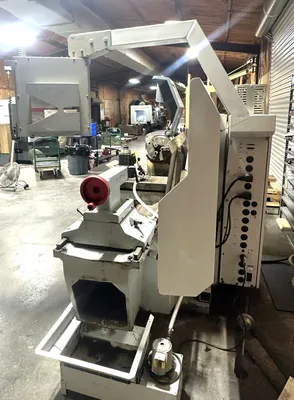

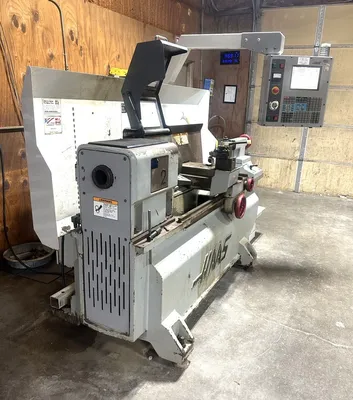

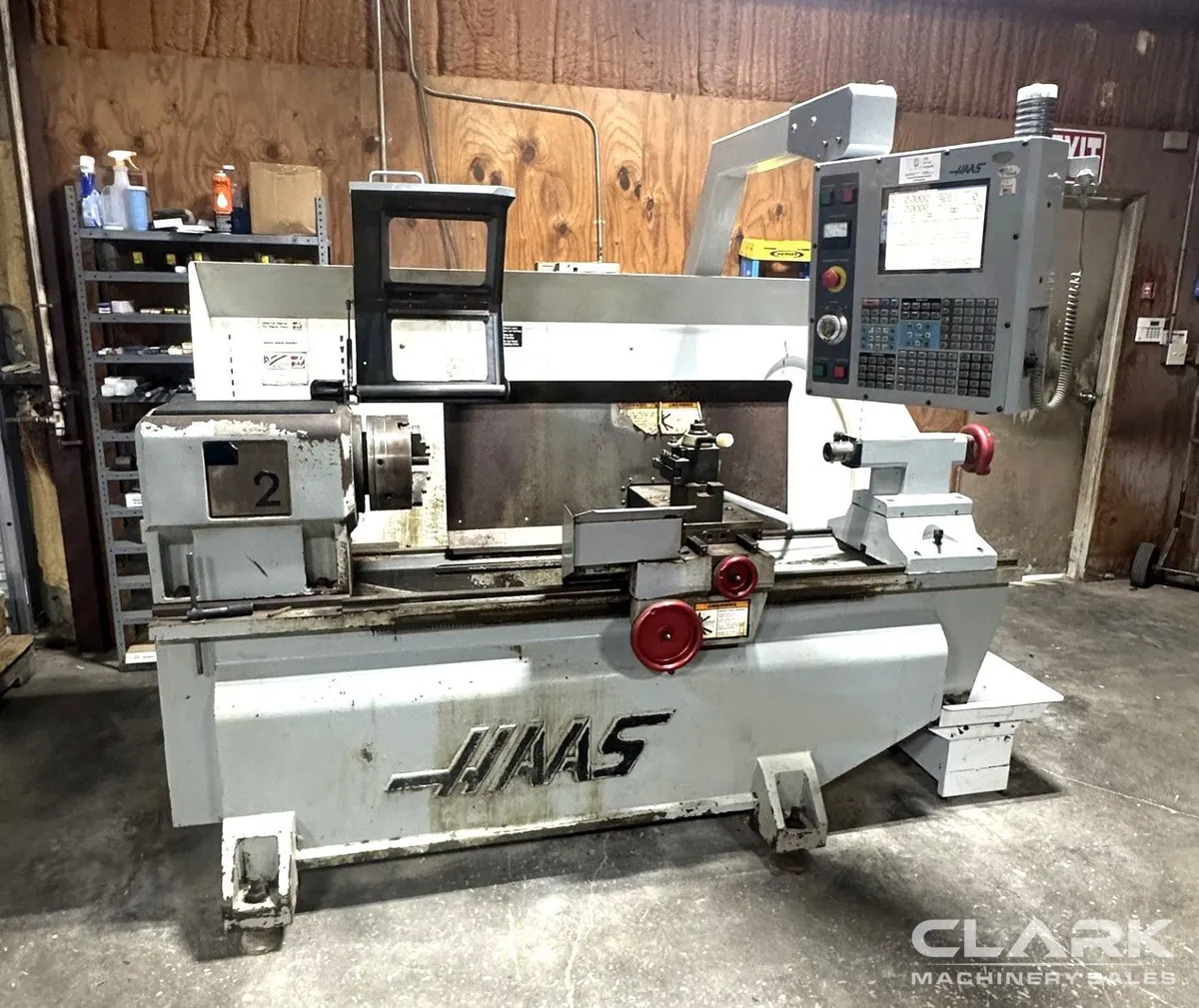

5,500 Spindle Hours, 3" Bore, 10" Chuck, Tailstock, Tool Post, Handwheels. This well maintained 2005 Haas TL-2 toolroom cnc lathe also includes tooling as pictured. 2006 Haas SL-20 also located in the same facility.

MAX SWING16"406.4 mm
SWING OVER CROSS SLIDE11"279.4 mm
MAX CUTTING DIAMETER16"406.4 mm
MAX CUTTING LENGTH48"1,219.2 mm
X-AXIS TRAVEL8"203.2 mm
CHUCK SIZE10"254 mm
SPINDLE BORE3"76.2 mm
SPINDLE NOSEA2-6A2-6
SPINDLE MOTOR12 hp8.9 kW
SPINDLE SPEED2,000 RPM2,000 RPM
RAPID TRAVERSE RATE X-AXIS150 in/min.381 cm/min.
RAPID TRAVERSE RATE Z-AXIS150 in/min.381 cm/min.
Dimensions109"L in x 69"W x 83"L109"L in x 69"W x 83"L
Weight4,600 lbs4,600 lbs

TAILSTOCK
TOOL POST
3" BORE

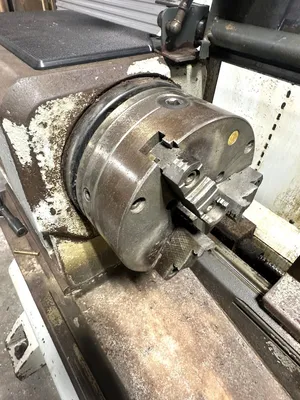

10" MANUAL 3-JAW CHUCK

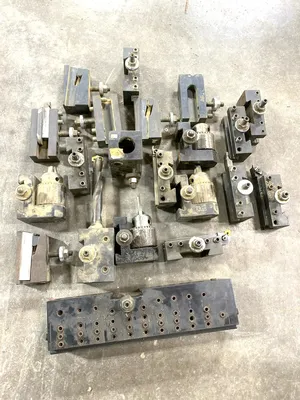

** TOOLING AS PICTURED INCLUDED!

** ORIGINAL OWNER

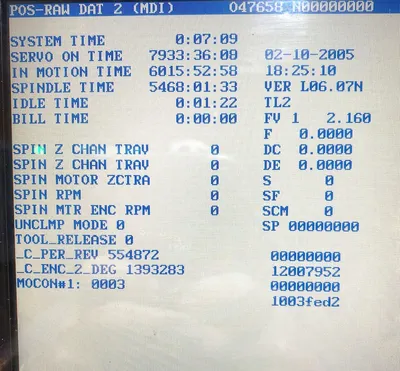

** AS OF MARCH, 2026 - SPINDLE TIME: 5,500 HOURS

** CUTTING PRIMARILY 4140 & PLASTICS
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
