2011 SMTCL VMC850B & 4TH AXIS ROTARY TABLE

2011 SMTCL VMC850B & 4TH AXIS ROTARY TABLE

Sell Your SMTCL VMC850B
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your SMTCL VMC850B

Overview

Type:
Vertical Machining Centers
Manufacturer:
SMTCL
Model:
VMC850B
Year:
2011
Stock #:
499178
Status:
For Sale

Description

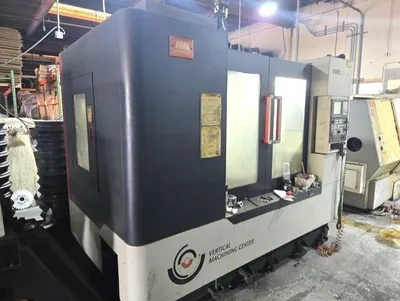

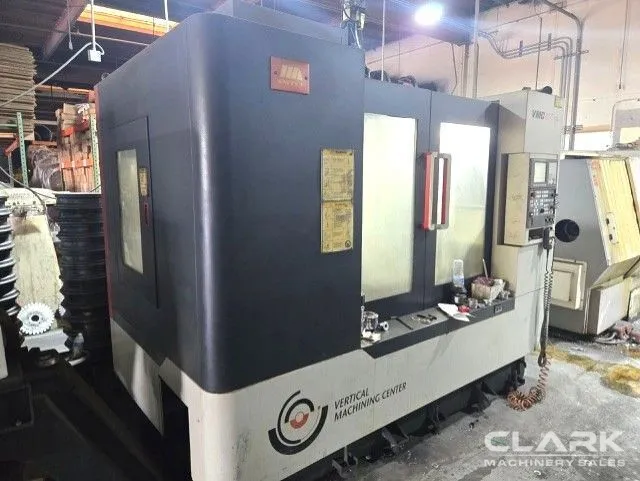

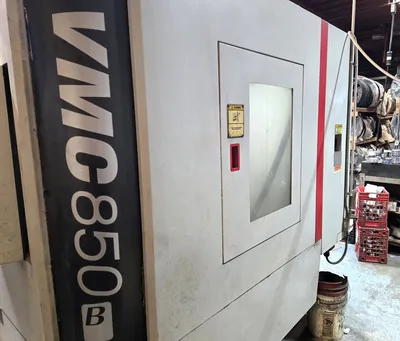

1,999 Cutting Hours, 4th Axis Rotary Table w/10" Chuck, Fanuc Control, 10,000 RPM, CAT 40, 20 ATC, Chip Conveyor. This 2011 SMTCL VMC850B cnc vertical machining center is under power, ready for immediate inspection and purchase.

TABLE LENGTH39.4"1,000.8 mm
TABLE WIDTH19.7"500.38 mm
TABLE CAPACITY1,100 lb499 kg
X-AXIS TRAVEL33.4"848.36 mm
Y-AXIS TRAVEL22"558.8 mm
Z-AXIS TRAVEL25.5"647.7 mm
DISTANCE FROM WORK FACE TO SPINDLE31.4"797.56 mm
SPINDLE SPEED10,000 RPM10,000 RPM
SPINDLE MOTOR20 hp14.9 kW
SPINDLE TAPERCAT 40CAT 40
TOOL CAPACITY (ATC)2020
RAPID TRAVERSE - X AXIS1,260 in/min.32 m/min.
RAPID TRAVERSE - Y AXIS1,260 in/min.32 m/min.
RAPID TRAVERSE - Z-AXIS1,181 in/min.30 m/min.
CUTTING FEEDRATE384 ipm
ROTARY OR TRUNNIONYesYes

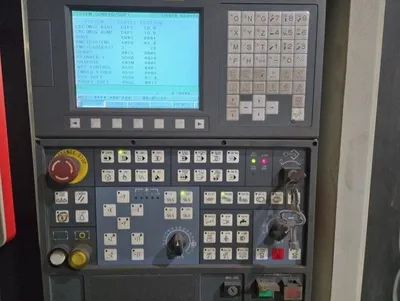

FANUC SERIES 0iMD CNC CONTROL

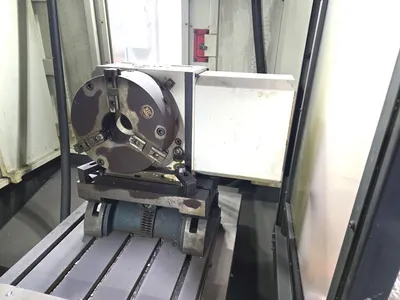

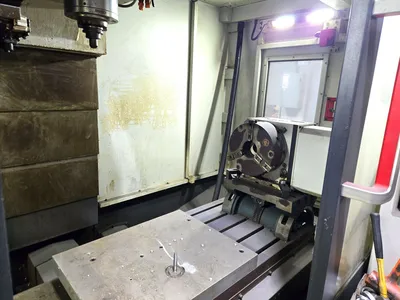

4TH AXIS SMTCL ROTARY TABLE WITH 10" CHUCK
4TH AXIS DRIVE & WIRING

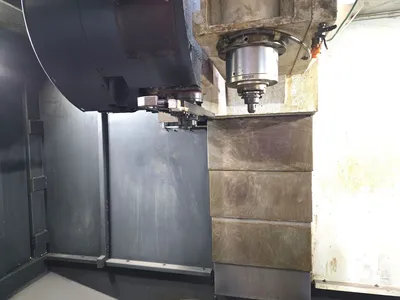

10,000 RPM CHILLED SPINDLE
SIDEMOUNT 20 ATC
CHIP CONVEYOR
RIGID TAPPING

** SUBPLATE AS PICTURED INCLUDED
** ASSORTMENT OF TOOLHOLDERS INCLUDED

** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY ALUMINUM

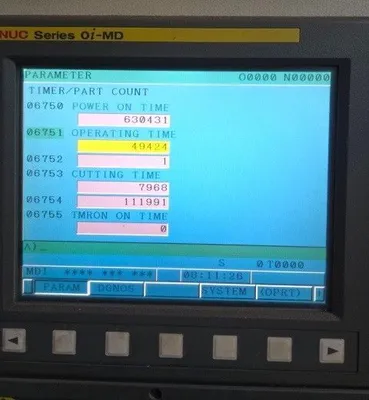

** AS OF JUNE, 2025 - CUTTING TIME HOURS: 1,999
** MACHINE MANUFACTURED DATE: NOVEMBER, 2011
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
