| SWING OVER BED | 31.75" | 806.45 mm |
| MAX CUTTING DIAMETER | 18" | 457.2 mm |
| MAX CUTTING LENGTH | 23" | 584.2 mm |
| X-AXIS TRAVEL | 9.4" | 238.76 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 2.0" | +/- 2.0" |
| Z-AXIS TRAVEL | 32.5" | 825.5 mm |
| CHUCK SIZE | 12" | 304.8 mm |
| BAR CAPACITY | 4" | 101.6 mm |
| SPINDLE NOSE | A2-8 | A2-8 |
| SPINDLE MOTOR | 40 hp | 29.8 kW |
| SPINDLE SPEED | 3,200 RPM | 3,200 RPM |
| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 6,000 RPM | 6,000 RPM |
NEXTGEN CNC CONTROL
12" SAMCHULLY HYDRAULIC CHUCK
Y-AXIS
LIVE MILLING (UPGRADED TO 6,000 RPM)
HIGH PRESSURE COOLANT (300 PSI)
BELT TYPE CHIP CONVEYOR
PARTS CATCHER
PROGRAMMABLE HYDRAULIC TAILSTOCK
(1) AXIAL DRIVEN HOLDER
(1) RADIAL DRIVEN HOLDER
MISC. BORING AND STICK HOLDERS
AUTOMATIC TOOL PRESETTER
1 GB MEMORY
CHIP STRAINER
OIL SKIMMER
EARLY POWER FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAAS CONNECT
HAAS CONNECT
LOW VOLTAGE TRANSFORMER
MACROS
RIGID TAPPING
SPINDLE ORIENTATION
VISUAL PROGRAMMING SYSTEM
WIFI
NOTES ON MACHINE:
*** NEW SPINDLE INSTALLED ON 3/24/2025

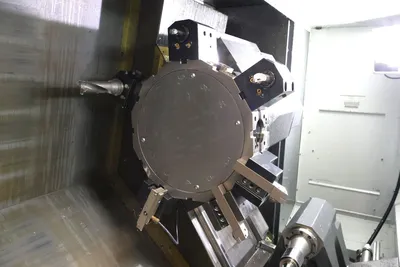

*** HAAS TECHNICIAN PERFORMED INSTALL AND REALIGNMENT OF TURRET
*** TURRET SURFACE AFFECTED NEAR POSITION #2
*** MACHINE BEING USED DAILY CUTTING QUALITY PARTS
HOURS OF USE ON NEW SPINDLE AS OF 4/3/2025:
* POWER ON TIME: 585 HOURS
* CYCLE START TIME: 9 HOURS
* FEED CUTTING TIME: 8 HOURS
REPLACEMENT COST FOR ABOVE MACHINE IF PURCHASED NEW: $175,000
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
