| SWING OVER BED | 29.5" | 749.3 mm |
| MAX CUTTING DIAMETER | 14.75" | 374.65 mm |
| MAX CUTTING LENGTH | 25.6" | 650.24 mm |
| X-AXIS TRAVEL | 11.75" | 298.45 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 4" (+/- 2") | 4" (+/- 2") |
| Z-AXIS TRAVEL | 26.25" | 666.75 mm |
| CHUCK SIZE | 15" | 381 mm |
| BAR CAPACITY | 4" | 101.6 mm |
| SPINDLE BORE | 4.4" | 111.76 mm |
| SPINDLE NOSE | A2-11 | A2-11 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 3,300 RPM | 3,300 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 10" | 254 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-8 | A2-8 |
| SUB SPINDLE - SPINDLE MOTOR | 20 hp | 14.9 kW |
| SUB SPINDLE - SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| TURRET CAPACITY | 12 | 12 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 4,000 RPM | 4,000 RPM |
MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER)
LNS QUICK LOAD SERVO S3 MAGAZINE BAR FEEDER (5’)
Y-AXIS
LIVE MILLING
SUB SPINDLE
HAINBUCH COLLET CHUCK (MAIN)

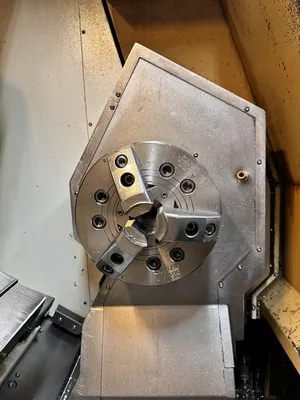

15”, 3-JAW ATS (400-128) HYDRAULIC CHUCK (MAIN)
10” 3-JAW KITAGAWA (B-210) HYDRAULIC CHUCK (SUB)
MAZAK SUPERFLOW T8-1000 HIGH-PRESSURE COOLANT SYSTEM (1,000 PSI)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
PARTS CONVEYOR
(7) LIVE TOOL HOLDERS
SEE PHOTOS FOR FULL LIST OF MAZATROL CONTROL OPTIONS
** AS OF APRIL 2025, CUTTING TIME – 9,616 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $350,000+
** MACHINE CUT PRIMARILY ALUMINUM & CARBON STEEL
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** FULL LIST OF MAZATROL CONTROL OPTIONS SHOWN IN PHOTOS
** MIST COLLECTOR SHOWN IN PHOTOS IS NOT INCLUDED WITH THE MACHINE
** ALL TOOL HOLDERS SHOWN IN THE TURRET WILL GO WITH THE MACHINE (NOT THE INSERTS)
