| SWING OVER SADDLE | 22" | 558.8 mm |
| MAX CUTTING DIAMETER | 16.9" | 429.26 mm |
| MAX CUTTING LENGTH | 24.8" | 629.92 mm |
| X-AXIS TRAVEL | 90" | 2,286 mm |
| Z-AXIS TRAVEL | 13" | 330.2 mm |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2" | 50.8 mm |
| SPINDLE BORE | 3" | 76.2 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,200 RPM | 4,200 RPM |

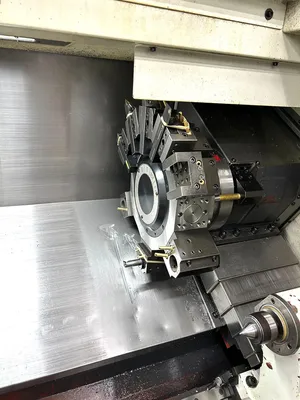

| TURRET CAPACITY | 12 | 12 |
| LIVE MILLING | Yes | Yes |
| Dimensions | 103″ x 71″ x 69″ | 103″ x 71″ x 69″ |
| Weight | 7,500 lbs | 7,500 lbs |
FANUCT Oi-TF CNC CONTROL
LIVE TOOLING, C-AXIS
8", 3-JAW HYDRAULIC CHUCK
TAILSTOCK
TOOL PRESETTER
DIRECT BELT DRIVE
LINEAR GUIDE WAYS
STEEL WAY COVERS
42 GALLON COOLANT TANK
AUTOMATIC LUBRICATION SYSTEM
MIST COLLECTOR
ASSORTMENT OF TOOLING & COLLETS INCLUDED
(2) LIVE TOOL HOLDERS INCLUDED
** ORIGINAL OWNER
** AS OF JULY, 2025 - CUTTING TIME HOURS: 4,005
** MACHINE CUTTING PRIMARILY ALUMINUM 7075 & SS
** MACHINE INSTALLATION DATE: 2019
** MACHINE MANUFACTURED DATE: DECEMBER, 2018
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
