Used 2000 KIWA KNH-400 | Horizontal Machining Centers

Sell Your KIWA KNH-400
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your KIWA KNH-400

Overview

Type:
Horizontal Machining Centers
Manufacturer:
KIWA
Model:
KNH-400
Year:
2000
Stock #:
499593
Status:
For Sale

Description

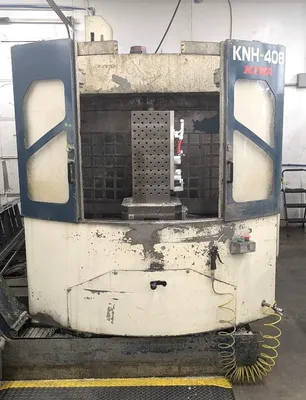

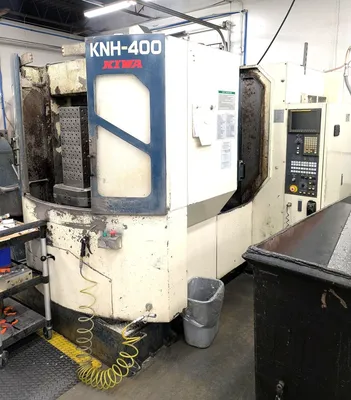

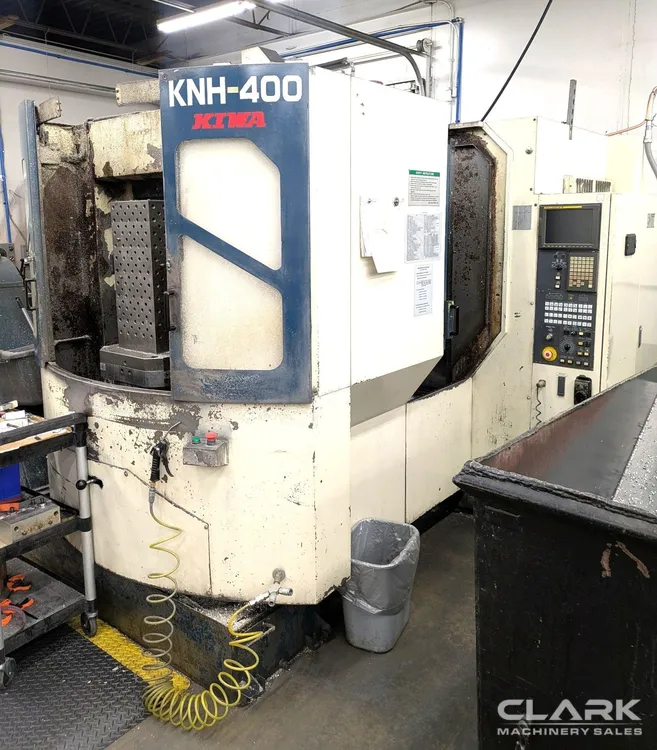

Full 4th Axis, Dual Pallet Changer, 10,000 RPM, CAT 40, 64 ATC. This 2000 Kiwa KNH-400 cnc horizontal machining center is equipped with a Fanuc control, coolant system, and chip conveyor. Identical sister unit also available.

PALLET WIDTH15.75"400.05 mm
PALLET LENGTH15.75"400.05 mm

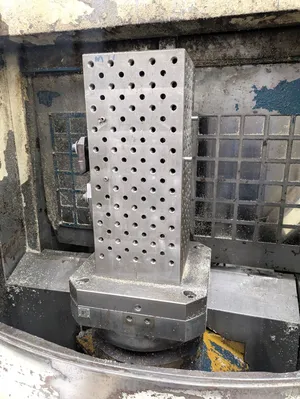

PALLET INDEXINGFULL 4THFULL 4TH
NUMBER OF PALLETS22
MAX WORKPIECE WEIGHT880 lb399.2 kg
X-AXIS TRAVEL23.6"599.44 mm
Y-AXIS TRAVEL23.6"599.44 mm
Z-AXIS TRAVEL19.7"500.38 mm
SPINDLE SPEED10,000 RPM10,000 RPM
SPINDLE MOTOR25 hp18.6 kW
SPINDLE TAPERCAT 40CAT 40
TOOL POSITIONS (ATC)6464
RAPID TRAVERSE RATE1,968 in/min.4,998.7 cm/min.

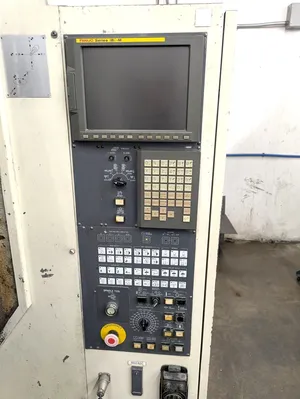

FANUC 18iM CNC CONTROL
FULL 4TH AXIS
10,000 RPM SPINDLE
64 ATC
COOLANT SYSTEM
CHIP CONVEYOR

** MACHINE CUTTING PRIMARILY ALUMINUM 7075 & SS
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
