| SWING OVER BED | 21" | 533.4 mm |
| MAX CUTTING DIAMETER | 11.75" | 298.45 mm |
| MAX CUTTING LENGTH | 22.5" | 571.5 mm |
| X-AXIS TRAVEL | 8.4" | 213.36 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 2" | +/- 2" |
| Z-AXIS TRAVEL | 22.5" | 571.5 mm |
| CHUCK SIZE | 10" | 254 mm |
| BAR CAPACITY | 3" | 76.2 mm |
| SPINDLE BORE | 3.5" | 88.9 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 3,400 RPM | 3,400 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 5" | 127 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| TURRET CAPACITY | 24 | 24 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 6,000 RPM | 6,000 RPM |

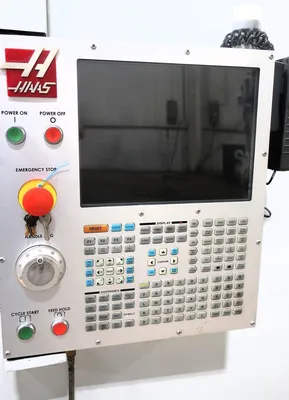

HAAS NEXTGEN CONTROL
Y-AXIS
LIVE MILLING (6,000 RPM UPGRADE)
SUB SPINDLE

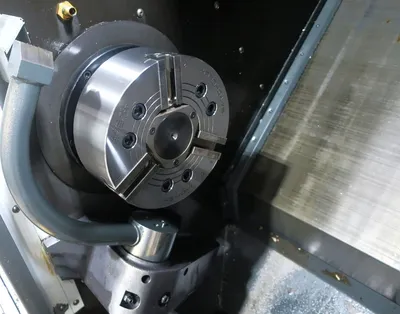

10”, 3-JAW SAMCHULLY (HS-10VI) HYDRAULIC CHUCK (MAIN)

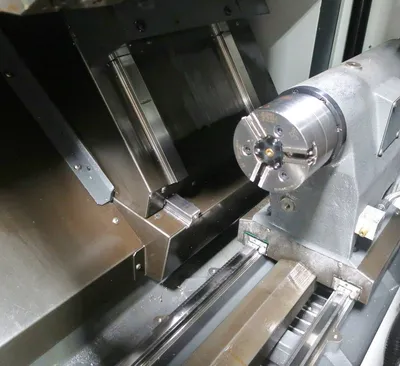

5”, 3-JAW SAMCHULLY (HS-05) HYDRAULIC CHUCK (SUB)
AUTOMATIC TOOL PRESETTER

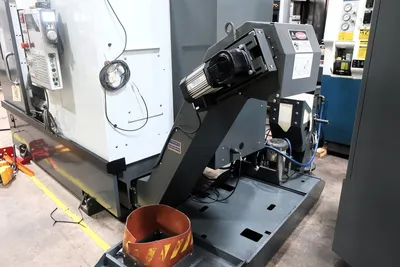

CHIP CONVEYOR
AUTO DOOR

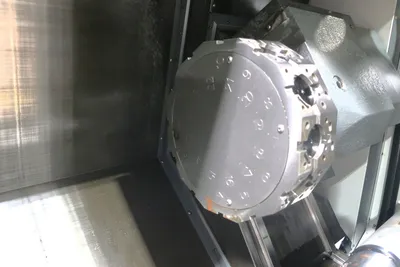

24-STATION BMT65 TURRET
HIGH-PRESSURE COOLANT (300 PSI)
AUXILIARY COOLANT FILTRATION SYSTEM
AUTOMATIC COOLANT REFILL SYSTEM

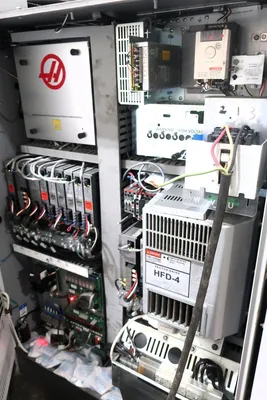

CNC CONTROL CABINET COOLER
COOLANT TANK OIL SKIMMER
CHIP TRAY FILTER KIT
AUTO JET AIR BLAST
REMOTE JOG HANDLE
EARLY POWER-FAILURE DETECTION MODULE
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPAY M-CODE (M130)
(8) SPARE M FUNCTIONS
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT
ETHERNET
64MB EXPANDED MEMORY
HAASCONNECT: REMOTE MONITORING
WIFI CONNECTIVITY
WIFI CAMERA

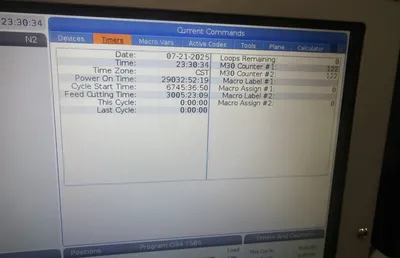

** AS OF JULY 2025, CUTTING TIME – 3,005 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $200,000
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** NO TOOL HOLDERS ARE AVAILABLE WITH THE MACHINE
** (2) IDENTICAL MACHINES AVAILABLE IN THE SAME FACILITY
** MACHINE IS PROBE READY, BUT THERE IS NO PROBE WITH THE MACHINE
This equipment is currently unavailable. Similar equipment available now is shown below.
