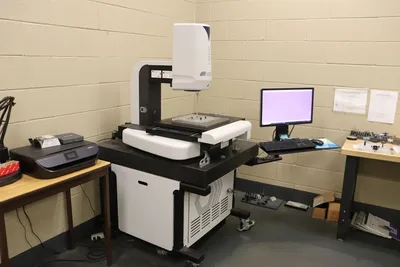

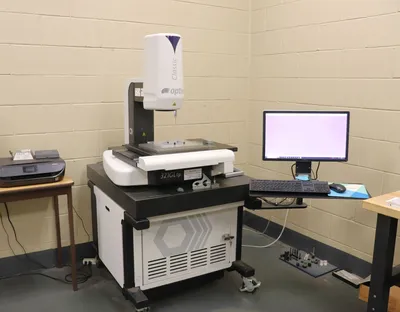

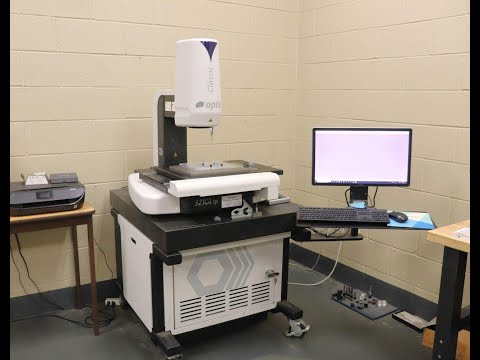

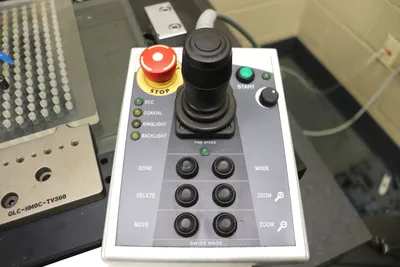

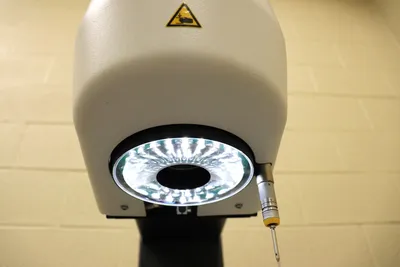

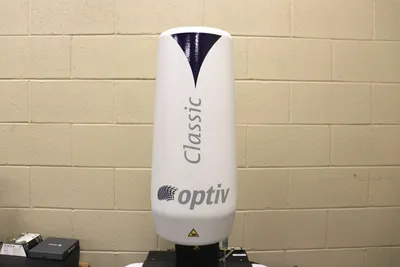

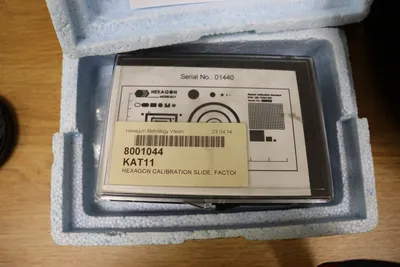

2009 HEXAGON OPTIVE CLASSIC 321 GL TP

MEASURING RANGE SINGLE SENSOR:
300MM (11.81") X 200MM (7.87") X 150MM (5.91")

MUTUAL MEASURING RANGE:
230MM (9.06") X 200MM (7.87") X 150MM (5.91")

FEED RATE IN THE X/Y/Z AXIS: 230/200/150 MM
MAXIMUM FEED SPEED IN THE X,Y,Z AXIS: 160 MM/S
MAXIMUM WORKPIECE WEIGHT: 20 KG
MEASURING SYSTEM: INCREMENTAL, OPTOELECTRONIC LENGTH MEASURING SYSTEM
MEASUREMENT RESOLUTION: 0.05 µM

MEASUREMENT ACCURACY IN X,Y AXIS (OPTICAL SENSOR): EX, EY = (1.6 + L/250) µM
MEASUREMENT ACCURACY IN XY AXIS (OPTICAL SENSOR): EXY = (2.0 + L/250) µM
MEASUREMENT ACCURACY IN X,Y AXIS (TOUCH-TRIGGER PROBE): EX, EY = (2.0 + L/250) µM
MEASUREMENT ACCURACY IN XY AXIS (TOUCH-TRIGGER PROBE): EXY = (2.5 + L/250) µM
MEASUREMENT ACCURACY IN Z AXIS (TOUCH-TRIGGER PROBE): EZ = (2.9 + L/200) µM

FIELD OF VIEW WITH STANDARD LENS: FROM 1.13 X 0.85 MM TO 6.4 X 4.8 MM
MAXIMUM M5551405 POWER CONSUMPTION: 120 M5551405 W
PERMISSIBLE AMBIENT TEMPERATURE GRADIENT: 0.8 °C/H, 1.0 °C/D, 0.6 °C/M
AMBIENT TEMPERATURE: 20 °C ± 1 °C

POWER SUPPLY: 110-240 ± 10 % V; 50/60 HZ
DIMENSIONS (L X W X H): 705 X 986 X 890 MM
WEIGHT OF MACHINE: 170 KG
