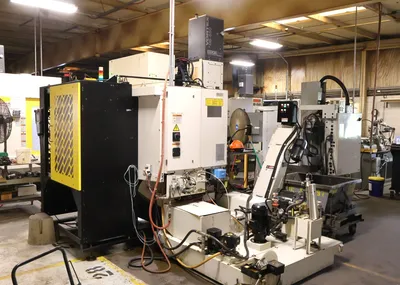

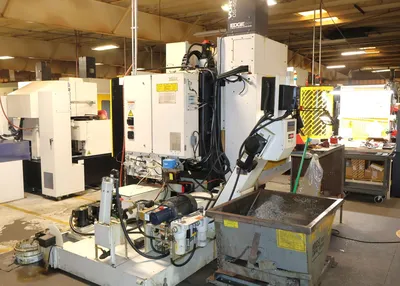

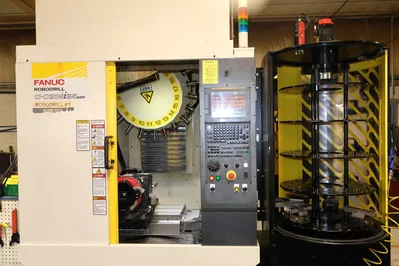

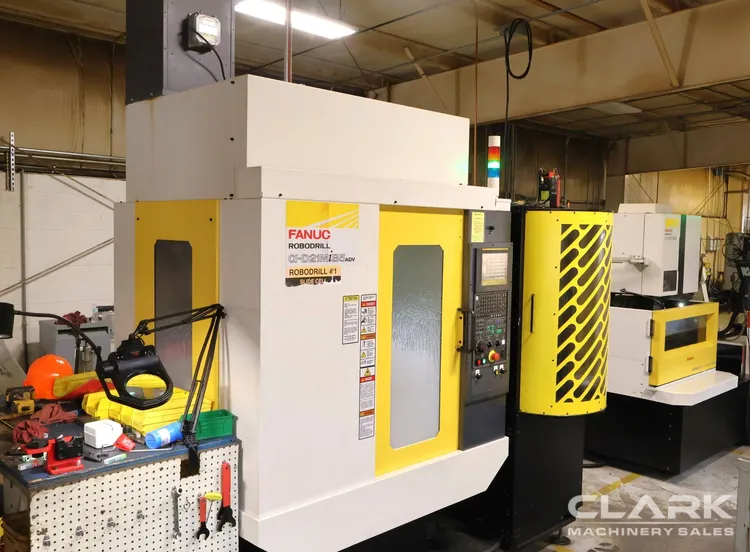

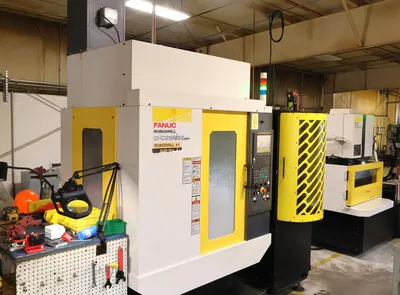

2019 FANUC ROBODRILL ALPHA D21MiB5 ADV W/PLUS-K60

FANUC SERIES 31I-MODEL B5 CNC CONTROL

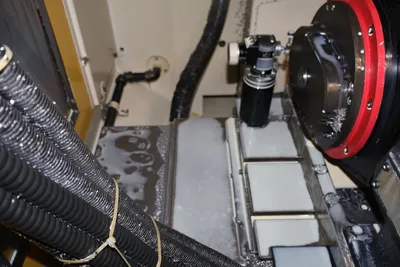

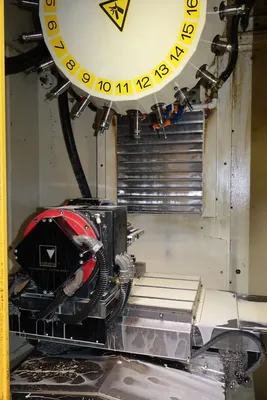

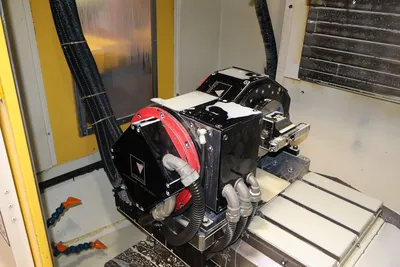

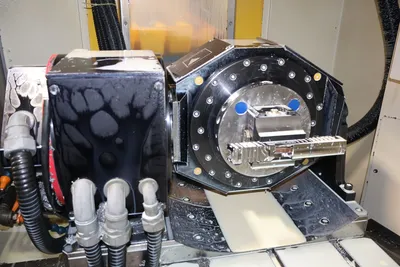

HABERLE DTT 5-AXIS DUAL TORQUE TRUNNION TABLE
PLUS-K60 AUTOMATION SYSTEM
FANUC LR MATE 200ID 6-AXIS ARTICULATING ARM INDUSTRIAL GRADE ROBOT

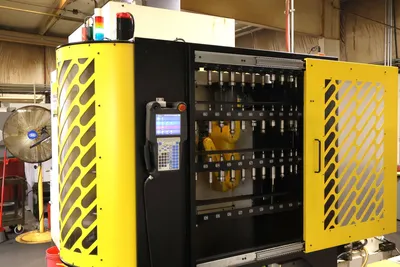

(4) TOOL RACKS - EACH HOLDING 11 TOOL POSITIONS FOR A TOTAL OF 44 EXTRA TOOL POSITIONS
MISC TOOL HOLDERS AND LANG FIXTURES INCLUDED IN SALE
RENISHAW OTS TS 27R TOOL PROBE
RENISHAW SPINDLE PROBE
BBT-30 SPINDLE TAPER WITH BIG PLUS DUAL CONTACT SPINDLE
SERVO DRIVEN 21 POSITION BI-DIRECTIONAL TOOL CHANGER (NEW DESIGN)
HENNIG LEFT SIDE DISCHARGE CHIP CONVEYOR

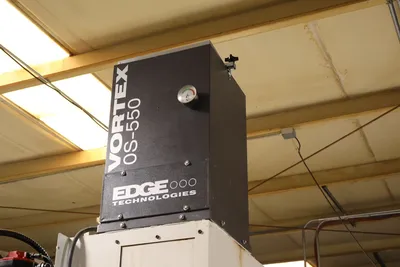

EDGE TECHNOLOGIES VORTEX 0S-550 MIST COLLECTOR

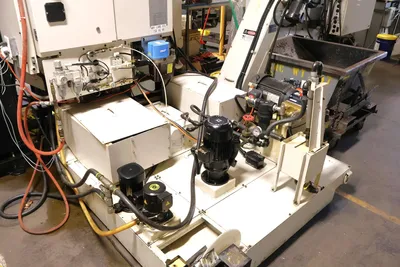

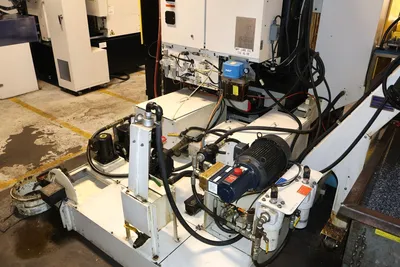

LNS CHIPBLASTER HIGH PRESSURE COOLANT SYSTEM
SPIDER COOL
ETHERNET
PCMIA SLOT
ADDITIONAL I/O UNIT
I/O DEVICE EXTERNAL CONTROL
FAST DATA SERVER FUNCTION WITH 2G
A1 CONTOUR CONTROL II
UP TO 1000 BLOCK LOOK AHEAD
NO Z-AXIS WAY INTERFERENCE IN Y-AXIS
NANO CNC SYSTEM
ULTRA PRECISE 32,000,000 PULSES/REV ENCODERS
1.5 G ACCELERATION
COOLANT SYSTEM - 200 LITER

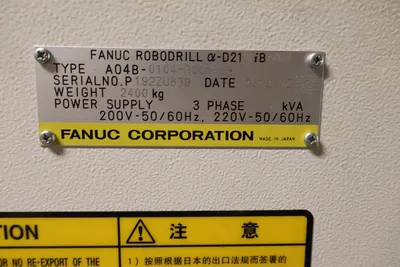

MACHINE ELECTRICS: 200V-50/60HZ, 3PH, 11KVA

AUTOMATION CELL DESCRIPTION:

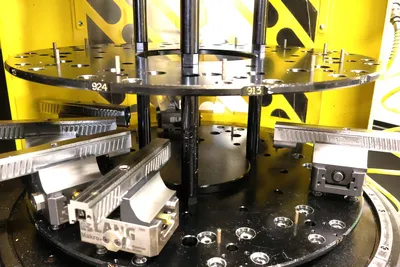

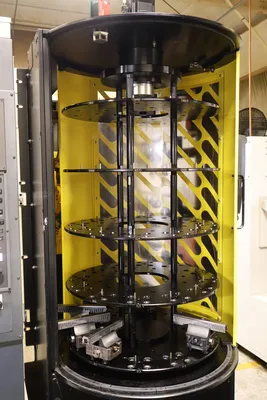

"THE PLUS-K60 AUTOMATION SYSTEM BY METHODS IS AN EASY TO USE PRE-ENGINEERED ROBOTIC AUTOMATION SYSTEM FOR THE MEDIUM BED ADV FANUC ROBODRILL WITH A HABERLE 5-AXIS TABLE. THIS SYSTEM IS DESIGNED FOR MINIMAL TO NO SETUPSMAKING IT IDEAL TO AUTOMATICALLY PROCESS A MISTURE OF MID TO LOW VOLUME JOBS. THE HEART OF THIS INNOVATIVE SYSTEM ARE THE EXTENDED TOOL STORAGE RACKS FOR HOLDING EXTRA TOOLS AND THE ROTARY STORAGE CAROUSEL DESIGNED TO BOTH STORE WORKPIECE CARRIERS IN CONJUNCTION WITH THE FANUC ROBOT TO UNLOAD AND LOAD TOOLS AND WORKPIECE CARRIERS INTO AND OUT OF THE MACHINE. THE SYSTEM COMES WITH FOUR TOOLHOLDER RACKS ADDING 44 TOOL POSITIONS TO THE ROBODRILL FOR A TOTAL OF 65 TOOOLS AND 5 ROWS OF PALLET/PART RECEIVERS ADDING 60 HOLDING POSITIONS FOR PARTS.

AUTOMATION CELL SPECS:
* OUTSIDE DIMENSIONS OF ATTACHED CELL: 67" X 30" X 83"H
* UNIT WEIGHT: 1,200 LBS
* MAX PALLET SIZE: 6.3" X 4" X 4.7"
* MAX PALLET + PART WEIGHT: 13 LBS

ROBOT SYSTEM:
FANUC LR MATE 200ID 6-AXIS ARTICULATING ARM INDUSTRIAL GRADE ROBOT WITH R-30IB MATE CONTROLLER INCLUDING:
* END OF ARM TOOLING SYSTEM INCLUDING: (2) PNEUMATIC, PARALLEL CLOSE, TWO JAW GRIPPERS WITH CLOSET POSITION SENSOR
* ROBOT ELECTRICS: 200-230V/ 1PH, 50/60 HZ, 1.2 KVA

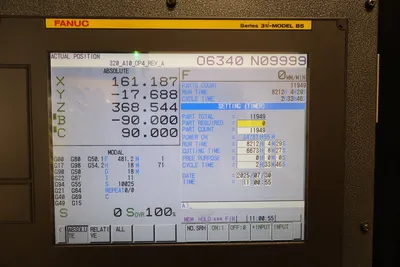

HOURS OF USE AS OF 7/30/2025 (AS PICTURED):
* POWER ON: 34,781 HOURS
* RUN TIME: 8,212 HOURS
* CUTTING: 6,673 HOURS

TOTAL PURCHASE PRICE OF ABOVE EQUIPPED SYSTEM WHEN PURCHASED NEW: $495,000

** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
