| SWING OVER SADDLE | 9.1" | 231.14 mm |
| MAX CUTTING DIAMETER | 9" | 228.6 mm |
| MAX CUTTING LENGTH | 27.38" | 695.45 mm |
| DISTANCE BETWEEN CENTERS | 38.5" | 977.9 mm |
| X-AXIS TRAVEL | 6.5" | 165.1 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 3.93" (+/- 1.96") | 3.93" (+/- 1.96") |
| Z-AXIS TRAVEL | 27.5" | 698.5 mm |
| C-AXIS INDEXING | FULL C-AXIS (MAIN & SUB) | FULL C-AXIS (MAIN & SUB) |
| BAR CAPACITY | 2.625" | 66.675 mm |
| SPINDLE BORE | 2.99" | 75.946 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 787 in/min. | 20 m/min. |
| RAPID TRAVERSE RATE - Y-AXIS | 295.3 in/min. | 7.5 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,575 in/min. | 40 m/min. |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - BAR CAPACITY | 2.6" | 66.04 mm |
| SUB SPINDLE - SPINDLE BORE | 2.9" | 73.66 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-6 | A2-6 |
| SUB SPINDLE - SPINDLE MOTOR | 30.3 hp | 22.6 kW |
| SUB SPINDLE - SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| SUB SPINDLE / W-AXIS TRAVEL | 30.1" | 764.54 mm |
| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT55 | BMT55 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| LIVE MILLING MOTOR | 7.5 hp | 5.6 kW |
| TURRET 2 CAPACITY | 12 | 12 |
| TURRET 2 TYPE | BMT55 | BMT55 |
| TURRET 2 - X-AXIS TRAVEL | 7.48" | 189.99 mm |
| TURRET 2 - Z-AXIS TRAVEL | 28.34" | 719.84 mm |

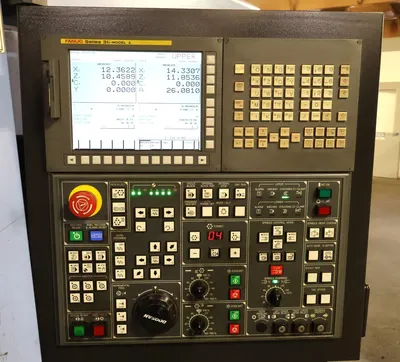

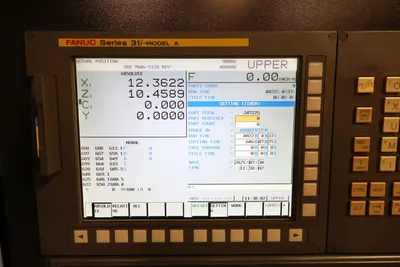

FANUC 31i-MODEL A CNC CONTROL

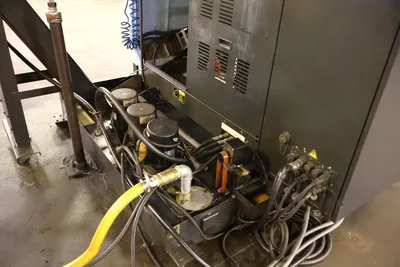

LNS CHIPBLASTER J2-60, 1000 PSI, DUAL OUTLET (NEW: 2021)

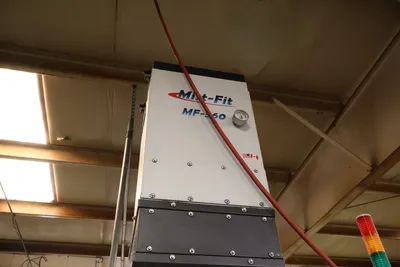

MIST-FIT 560 MIST COLLECTOR (NEW: 2021)

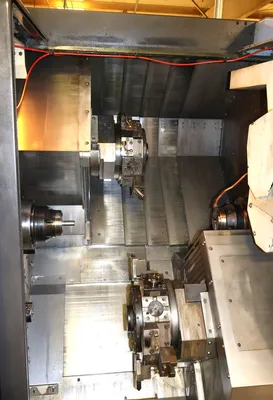

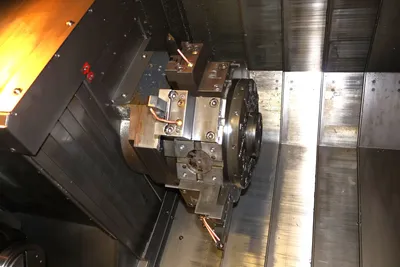

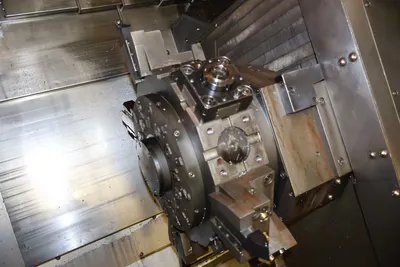

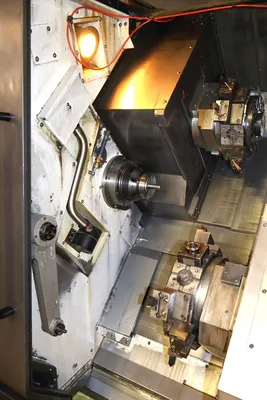

UPPER & LOWER TURRETS
SUB SPINDLE
Y-AXIS (UPPER)
LIVE MILLING
COLLET CHUCKS ON MAIN & SUB SPINDLE
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR (RIGHT SIDE)
PARTS EJECTOR
LNS TURBO HB CHIP CONVEYOR

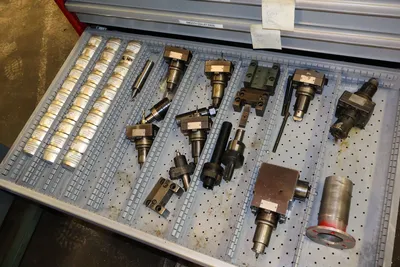

MISC LIVE AND STATIONARY TOOL HOLDERS

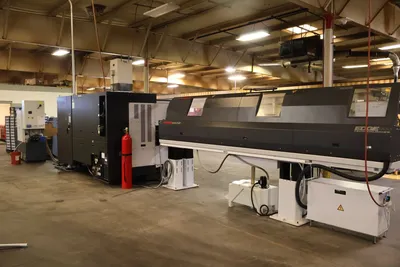

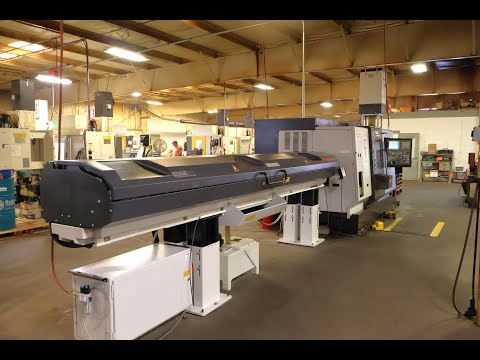

** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

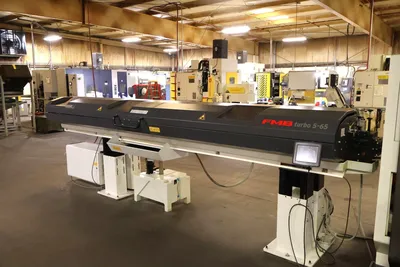

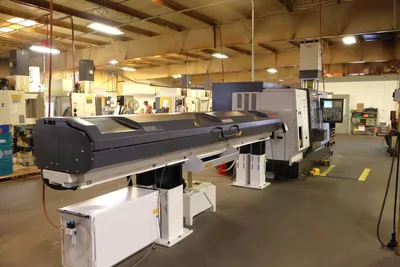

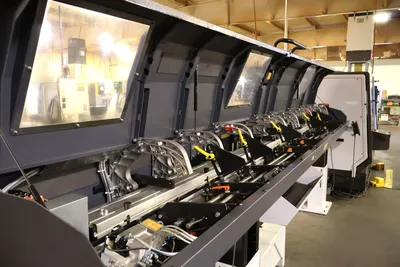

**** NOTE: FMB TURBO 5-65 12' CAPACITY BARFEED IS NO LONGER INCLUDED IN SALE OF MACHINE
REPLACEMENT COST FOR ABOVE EQUIPPED SYSTEM IF PURCHASED NEW: $310,000
