| TABLE LENGTH | 39.37" | 1,000 mm |
| TABLE WIDTH | 18.11" | 459.99 mm |
| X-AXIS TRAVEL | 30" | 762 mm |
| Y-AXIS TRAVEL | 18.11" | 459.99 mm |
| Z-AXIS TRAVEL | 18.11" | 459.99 mm |
| SPINDLE SPEED | 15,000 RPM | 15,000 RPM |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE TAPER | CAT 40 (BIG PLUS) | CAT 40 (BIG PLUS) |
| TOOL CAPACITY (ATC) | 32 | 32 |

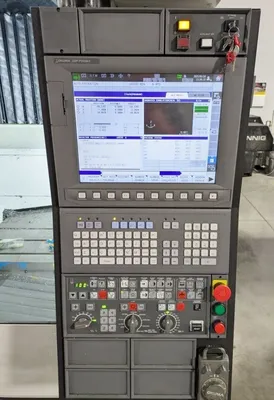

OKUMA OSP-P300MA CONTROL (TOUCH SCREEN)

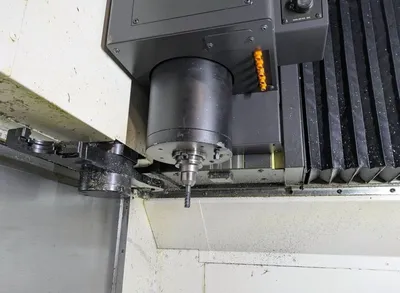

15,000 RPM SPINDLE (CAT40 BIG PLUS)
PREPPED FOR HIGH-PRESSURE THROUGH-SPINDLE COOLANT

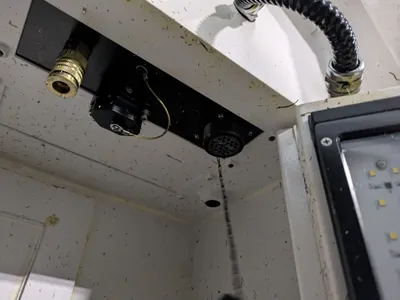

4TH AXIS INTERFACE

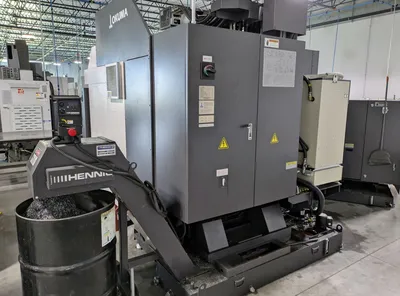

CHIP CONVEYOR (HENNIG)
REMOTE JOG HANDLE
THERMAL COMPENSATION SYSTEM (CASTING & SPINDLE)
AUTOMATIC RETURN TO CYCLE
AUTOMATIC POWER SHUT OFF
REAL-TIME 3D SIMULATION
TOOL LIFE MANAGEMENT
SPINDLE LOAD MONITOR
SYNCHRONIZED TAPPING
HI-CUT PRO
MAC MAN
(4) USB PORTS
ETHERNET

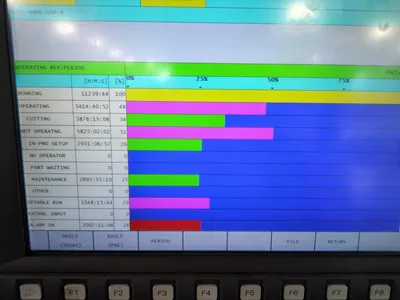

** AS OF AUGUST 2025, CUTTING TIME - 3,876 HOURS
** MACHINE HAS CUT PRIMARILY ALUMINUM & STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $150,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
