2013 KITAMURA MYCENTER-4XT, 4+1 5-AXIS

2013 KITAMURA MYCENTER-4XT, 4+1 5-AXIS

Sell Your KITAMURA MYCENTER 4XT
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your KITAMURA MYCENTER 4XT

Overview

Type:
Vertical Machining Centers
Manufacturer:
KITAMURA
Model:
MYCENTER 4XT
Year:
2013
Stock #:
499707
Status:
For Sale

Description

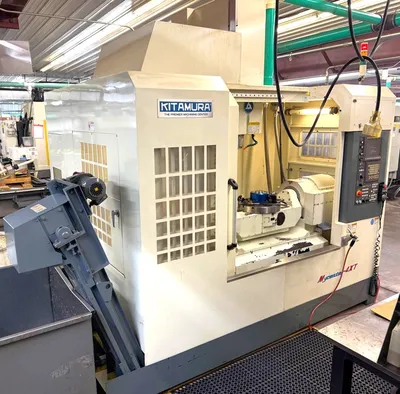

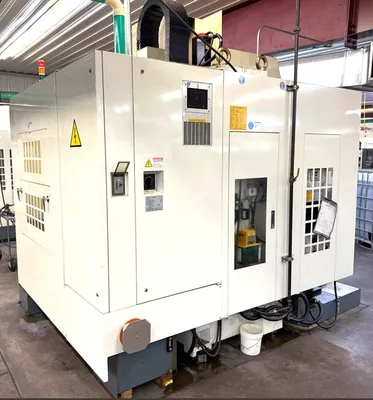

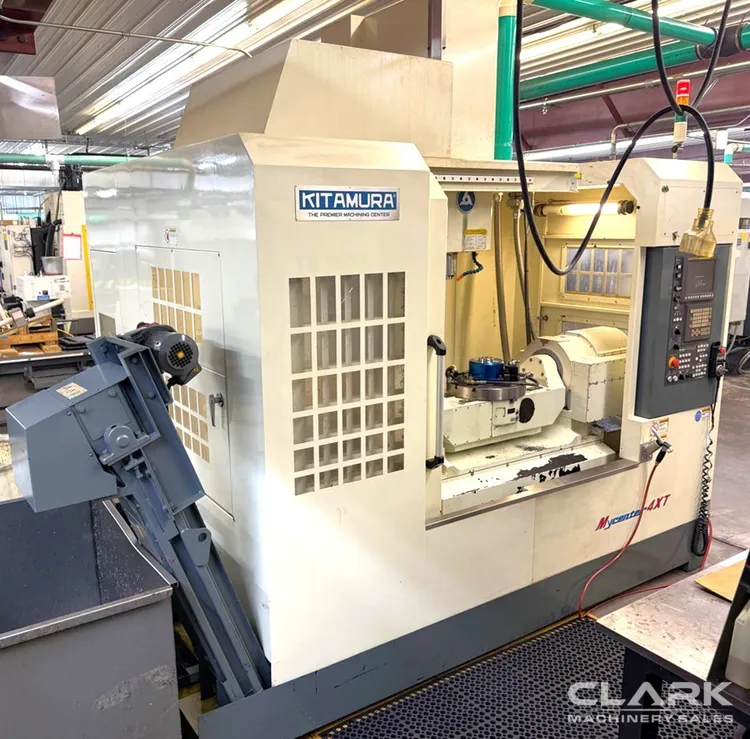

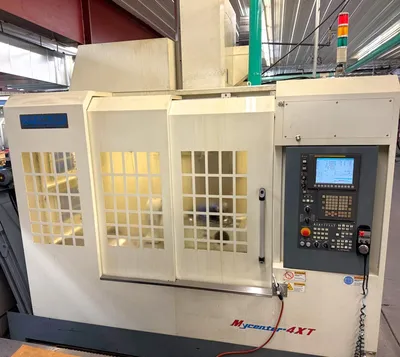

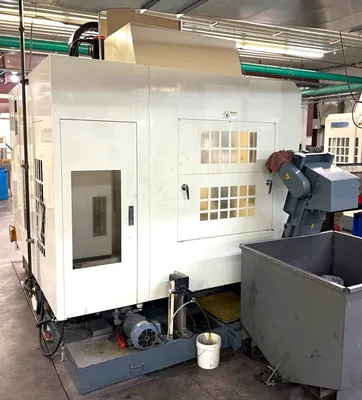

This Kitamura MyCenter-4XT vertical machining center has a built-in trunnion table for 5-axis work. This vertical mill offers high speed rapids and solid box guideways, in addition to high-pressure through-spindle coolant. The machine has been lightly used, with only 7,551 cutting hours.

TABLE LENGTH23.6"599.44 mm
TABLE WIDTH14.3"363.22 mm
X-AXIS TRAVEL31.5"800.1 mm
Y-AXIS TRAVEL24"609.6 mm
Z-AXIS TRAVEL20"508 mm
A-AXIS ROTATION-42/+120-42/+120
C-AXIS ROTATION360360
SPINDLE SPEED15,000 RPM15,000 RPM
SPINDLE MOTOR35 hp26.1 kW
SPINDLE TAPERCAT 40 (BIG PLUS)CAT 40 (BIG PLUS)
TOOL CAPACITY (ATC)3030
RAPID TRAVERSE - X AXIS1,417 in/min.36 m/min.
RAPID TRAVERSE - Z-AXIS1,417 in/min.36 m/min.
ROTARY OR TRUNNIONYesYes

FANUC 0i-MD CONTROL

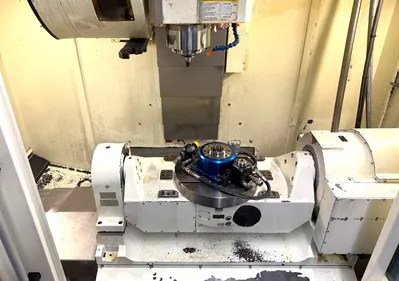

BUILT-IN 4TH/5TH AXIS TRUNNION TABLE
4 AXES SIMULTANEOUS CONTROL (4 + 1)
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (220 PSI)
15,000 RPM SPINDLE
CHIP CONVEYOR
SPINDLE CHILLER
BOX WAY (4 BOX WAYS ON Y-AXIS)

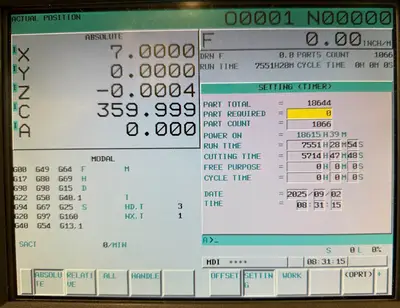

** AS OF 09/02/2025, CUTTING TIME – 7,551 hours

** MACHINE CUT PRIMARY ALUMINUM
** REPLACEMENT COST, AS EQUIPPED - $250,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
