2013 HAAS VF-2SS, 5,949 HOURS, 5C INDEXER
Sold

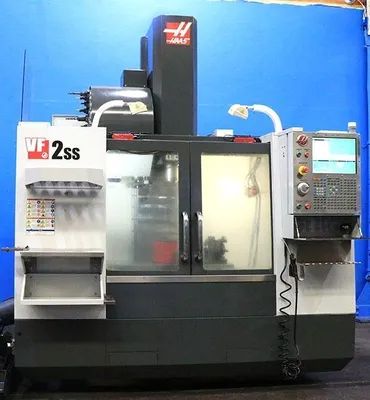

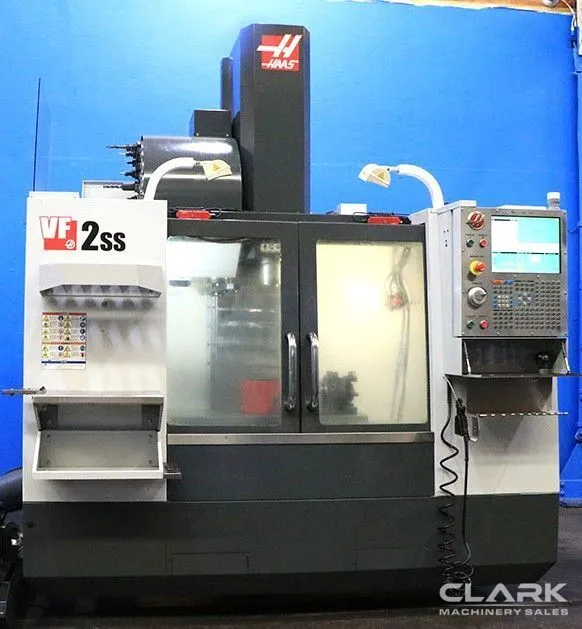

2013 HAAS VF-2SS, 5,949 HOURS, 5C INDEXER

Sell Your HAAS VF-2SS
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-2SS
Condition:
Very Good
Year:
2013
Stock #:
499735

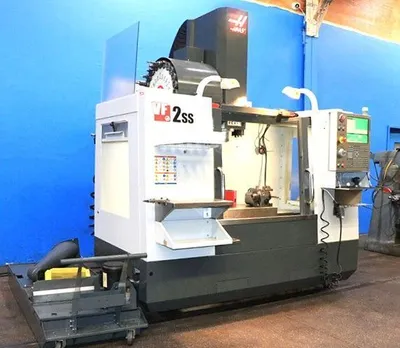

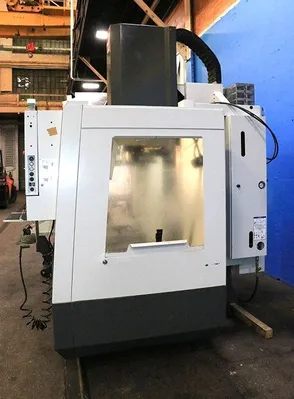

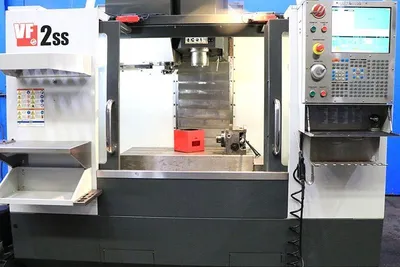

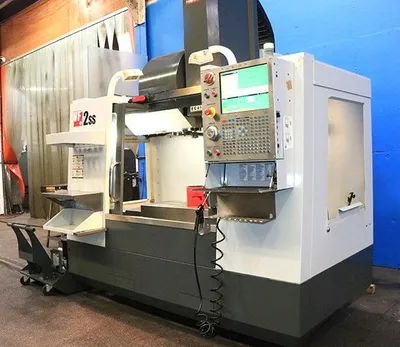

5,949 Spindle Hours, 4th Axis Ready, 5C 4th Axis Collet Closer, Renishaw Probe, 12,000 RPM. This very clean 2013 Haas VF-2SS vertical machining center is also equipped with high speed machining, programmable coolant, and very clean.

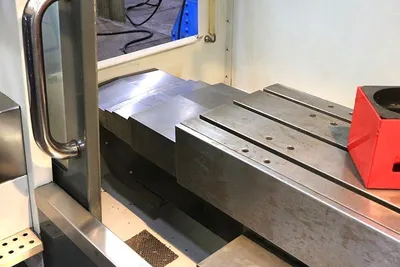

TABLE LENGTH36"914.4 mm
TABLE WIDTH14"355.6 mm
TABLE CAPACITY1,500 lb680.4 kg
X-AXIS TRAVEL30"762 mm
Y-AXIS TRAVEL16"406.4 mm
Z-AXIS TRAVEL20"508 mm
SPINDLE SPEED12,000 RPM12,000 RPM
SPINDLE MOTOR30 hp22.4 kW
SPINDLE TAPERCAT 40CAT 40
TOOL CAPACITY (ATC)2424
RAPID TRAVERSE - X AXIS1,400 in/min.35.6 m/min.
APPROX MACHINE WEIGHT8,000 lb3,628.7 kg
APPROX MACHINE DIMENSIONS89" x 92" x 104"89" x 92" x 104"

4TH AXIS DRIVE & WIRING

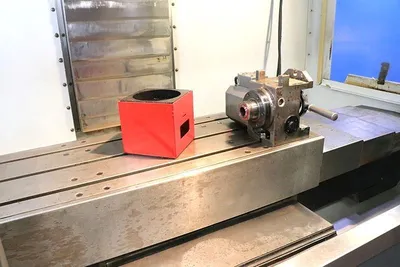

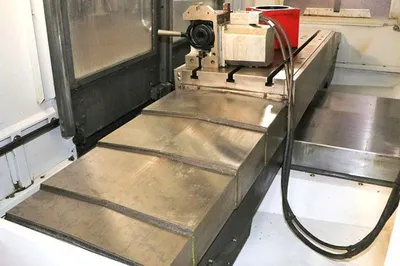

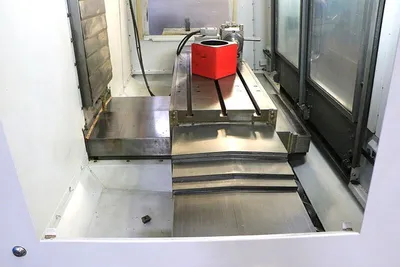

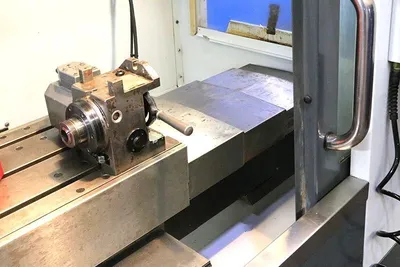

HAAS 5C 4TH AXIS COLLET CLOSER ($12,600 OPTION)

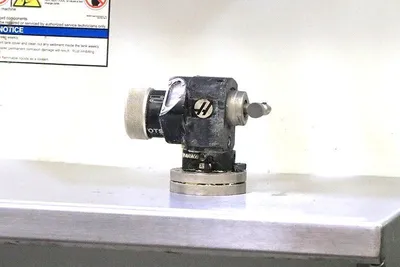

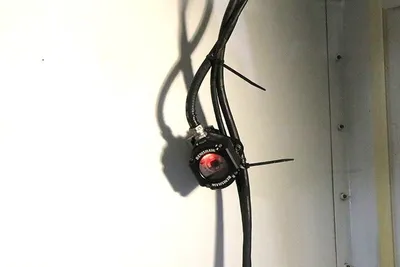

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

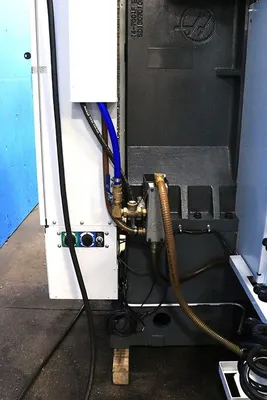

PROGRAMMABLE COOLANT (P-COOL)
HIGH SPEED MACHINING (HSM)

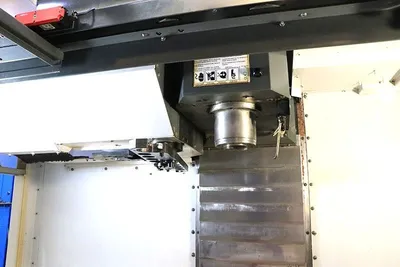

12,000 RPM SPINDLE

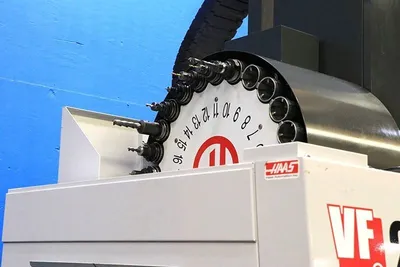

SIDE-MOUNT TOOL CHANGER (24 ATC)
COORDINATE ROTATION & SCALING
SPINDLE ORIENTATION
INTUITIVE PART PROGRAMMING
MACROS
QUICK CODE
ADVANCED TOOL MANAGEMENT
COOLANT SYSTEM

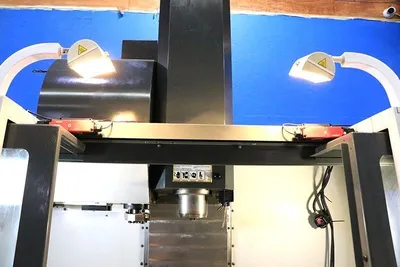

HIGH INTENSITY LIGHTING (HIL)
RIGID TAPPING

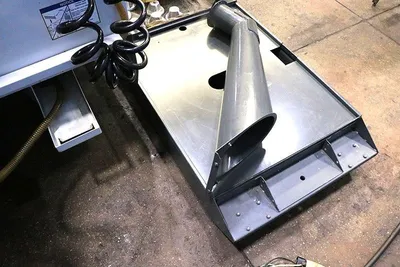

CHIP AUGER

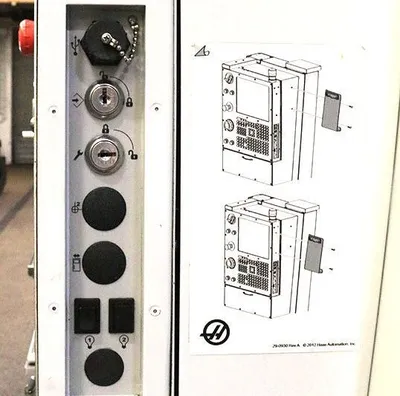

USB PORT

** MANUFACTURED DATE: OCTOBER, 2013

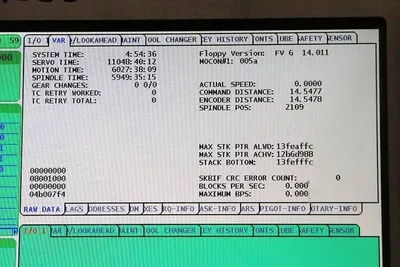

** AS OF SEPTEMBER, 2025 - SPINDLE TIME HOURS: 5,949

** REPLACEMENT COST NEW FOR ABOVE EQUIPPED MACHINE: $114,500
** UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
