| SWING OVER BED | 33.5" | 850.9 mm |
| MAX CUTTING DIAMETER | 16.53" | 419.86 mm |
| MAX CUTTING LENGTH | 50.6" | 1,285.2 mm |
| X-AXIS TRAVEL | 11.5" | 292.1 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 5.12"(±2.6") | 5.12"(±2.6") |
| Z-AXIS TRAVEL | 53.1" | 1,348.7 mm |
| C-AXIS INDEXING | FULL C-AXIS | FULL C-AXIS |
| CHUCK SIZE | 12" | 304.8 mm |
| BAR CAPACITY | 4" | 101.6 mm |
| SPINDLE BORE | 4.5" | 114.3 mm |
| SPINDLE NOSE | A2-11 | A2-11 |
| SPINDLE MOTOR | 35 hp | 26.1 kW |
| SPINDLE SPEED | 2,800 RPM | 2,800 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 1,181 in/min. | 30 m/min. |
| RAPID TRAVERSE RATE - Y-AXIS | 393.7 in/min. | 10 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,181 in/min. | 30 m/min. |
| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| LIVE MILLING MOTOR | 10 hp | 7.5 kW |
| Dimensions | 178" x 81" x 91" | 178" x 81" x 91" |
| Weight | 17,637 lbs | 17,637 lbs |
FANUC 0i-PLUS CONTROL W/iHMi TOUCH SCREEN
GUIDE I CONVERSATIONAL PROGRAMMING
Y-AXIS
LIVE MILLING
LONG BED (50")
12", 3-JAW HYDRUALIC CHUCK
TOOL PRESETTER
PROGRAMMABLE TAILSTOCK
RENISHAW RLP40 PROBE (RADIO LATHE PROBE) & RMI RECEIVER

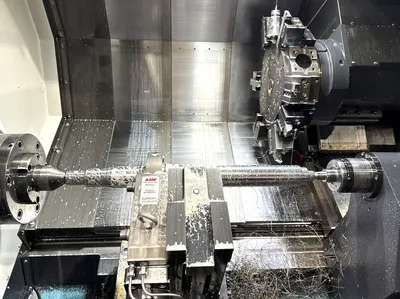

LNS AUTOBLOCK SELF-CENTERING HYDRAULIC STEADY REST
PROGRAMMABLE POSITIONING BRACKET FOR HYRDAULIC STEADY REST

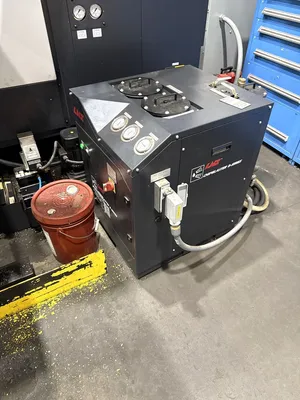

1,000 PSI CHIPBLASTER B-SERIES
LNS FOX MIST COLLECTOR (WS2-1020)
TURBO SIDE DISCHARGE CHIP CONVEYOR
AUTO DOOR (DOUBLE DOOR PNUEMATIC)
CAST IRON SLANT BED
BOX WAYS
** ORIGINAL OWNER
** AS OF SEPTEMBER, 2025 - CUTTING TIME HOURS: 2,159
** MACHINE MANUFACTURED DATE: JUNE, 2023
** FULL REPLACEMENT COST, AS EQUIPPED - $340,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
