| SWING OVER BED | 30.7" | 779.78 mm |
| MAX CUTTING DIAMETER | 16" | 406.4 mm |
| MAX CUTTING LENGTH | 20.5" | 520.7 mm |
| X-AXIS TRAVEL | 10.2" | 259.08 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 4.1 (+/- 2") | 4.1 (+/- 2") |
| Z-AXIS TRAVEL | 23.2" | 589.28 mm |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.6" | 66.04 mm |
| SPINDLE BORE | 3" | 76.2 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 25 hp | 18.6 kW |
| SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 6" | 152.4 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE MOTOR | 20 hp | 14.9 kW |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |

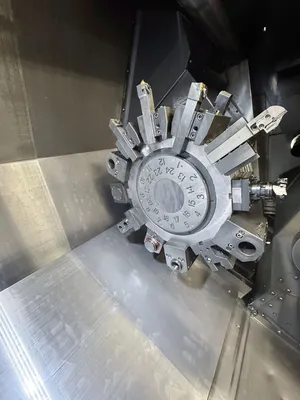

| TURRET CAPACITY | 12 STATIONS (24 INDEX POSITIONS) | 12 STATIONS (24 INDEX POSITIONS) |
| TURRET TYPE | BMT55 | BMT55 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| LIVE MILLING MOTOR | 7.5 hp | 5.6 kW |

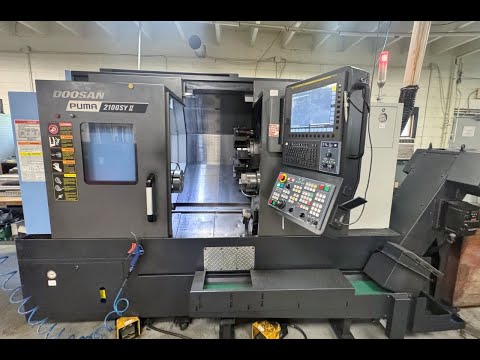

DOOSAN-FANUC i SERIES CONTROL (FANUC 0i-PLUS)
Y-AXIS
LIVE MILLING
SUB SPINDLE

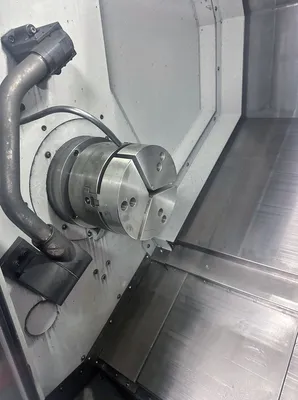

8”, 3-JAW HYDRAULIC CHUCK (MAIN)

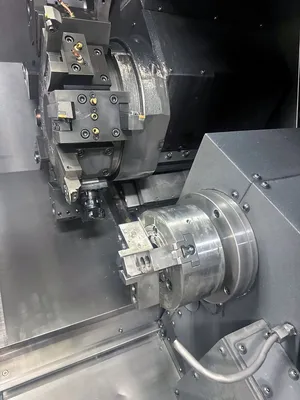

6”, 3-JAW HYDRAULIC CHUCK (SUB)

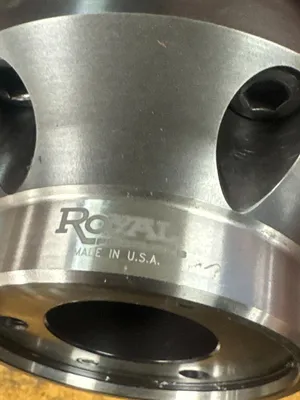

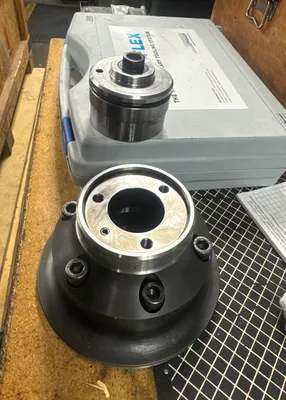

ROYAL COLLET CHUCK (SUB)
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
CHIP CONVEYOR

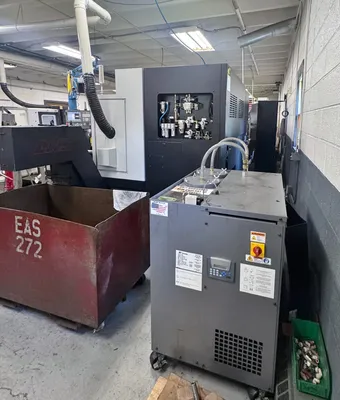

MP SYSTEMS HIGH-PRESSURE COOLANT UNIT

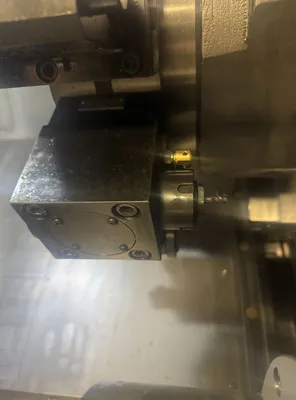

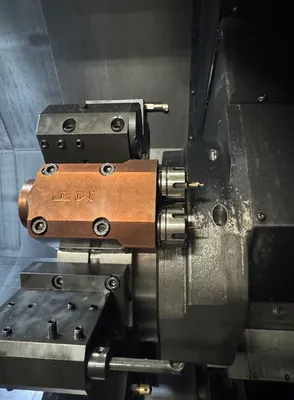

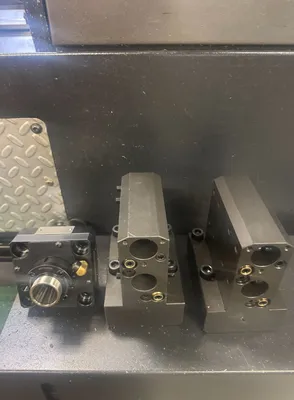

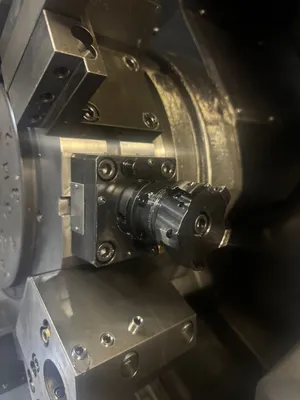

(2) RADIAL LIVE TOOL HOLDERS (1 DOUBLE SIDED)
(2) AXIAL LIVE TOOL HOLDERS

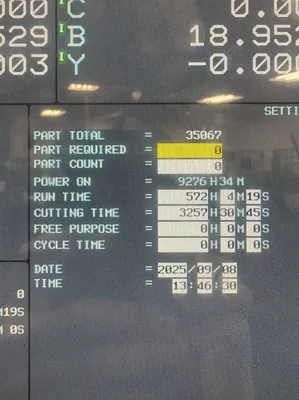

** AS OF SEPTEMBER 2025, CUTTING TIME – 3,257 HOURS
** MACHINE CUT PRIMARILY CAST IRON
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
