| TABLE LENGTH | 28" | 711.2 mm |
| TABLE WIDTH | 15" | 381 mm |
| X-AXIS TRAVEL | 21.7" | 551.18 mm |
| Y-AXIS TRAVEL | 16.1" | 408.94 mm |
| Z-AXIS TRAVEL | 18.1" | 459.74 mm |
| SPINDLE SPEED | 11,000 RPM | 11,000 RPM |
| SPINDLE MOTOR | 15 hp | 11.2 kW |
| SPINDLE TAPER | BT 40 | BT 40 |
| TOOL CAPACITY (ATC) | 20 | 20 |
| MAX RAPIDS | 1,181 in/min. | 30 m/min. |
| CUTTING FEEDRATE | 394 ipm |

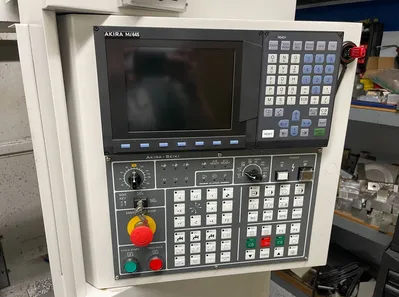

AKIRA MI645 CONTROL (MITSUBISHI)
11,000 RPM SPINDLE (BT40)

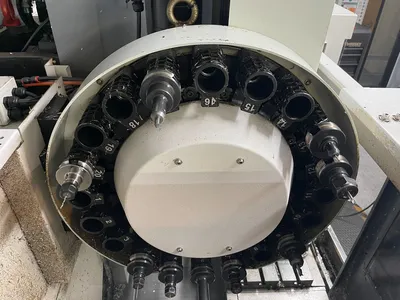

SIDE-MOUNT TOOL CHANGER (20 ATC)
4TH AXIS READY
CHIP AUGER
RIGID TAPPING
USB PORT
(2) KURT VISES

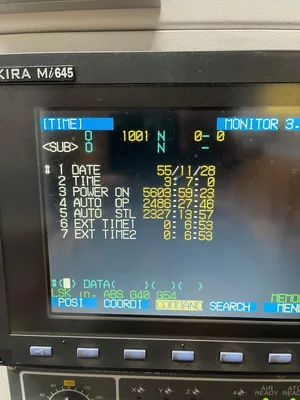

** AS OF OCTOBER 2025, OPERATING TIME - 2,486 HOURS
** MADE IN TAIWAN
** BUILT IN 11/2017, AS A 2018 MODEL
** MACHINE CUT PRIMARILY ALUMINUM & DELRIN
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** 4TH AXIS CONTROL BOX SHOWN IN PHOTOS IS NOT INCLUDED
** TOOL HOLDERS SHOWN IN PHOTOS ARE NOT INCLUDED WITH THE MACHINE. VISES ARE INCLUDED
