| SWING OVER BED | 21" | 533.4 mm |
| MAX CUTTING DIAMETER | 11.75" | 298.45 mm |
| MAX CUTTING LENGTH | 22.5" | 571.5 mm |
| X-AXIS TRAVEL | 8.4" | 213.36 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | ±2" | ±2" |
| Z-AXIS TRAVEL | 22.5" | 571.5 mm |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.5" | 63.5 mm |
| SPINDLE BORE | 3.5" | 88.9 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 4,000 RPM | 4,000 RPM |
HAAS NEXTGEN CONTROL

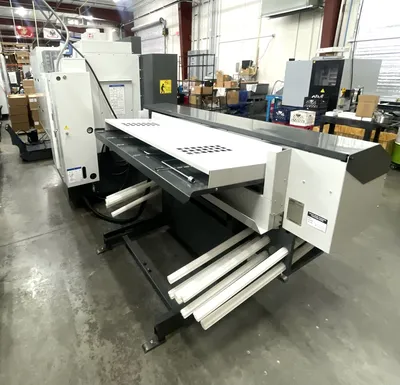

HAAS BAR FEEDER (2021)
Y-AXIS
LIVE MILLING
8”, 3-JAW SAMCHULLY HYDRAULIC CHUCK
8" HQCBD-65 COLLET CHUCK
PARTS CATCHER

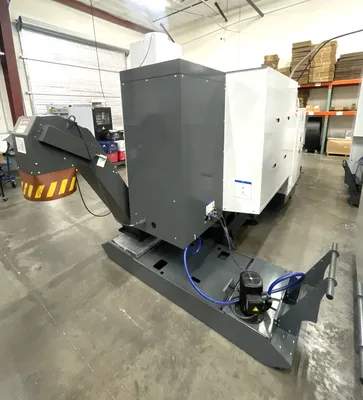

CHIP CONVEYOR
COOLANT MIST CONDENSER
SPINDLE ORIENTATION
RIGID TAPPING
MEDIA DISPLAY
WIRELESS NETWORKING
COMPENSATION TABLES
ETHERNET
USB PORT
1GB MEMORY
LIVE TOOL HOLDERS INCLUDED:
(2) RADIAL - RIGHT ANGLE
(2) AXIAL - STRAIGHT
** ORIGINAL OWNER
** AS OF OCTOBER, 2025 - SPINDLE TIME: 435 HOURS
** MACHINE CUTTING PRIMARILY STEEL BARREL NUTS & ALUMINUM
** MACHINE INSTALLATION DATE: Q1, 2022
** MACHINE MANUFACTURED DATE: OCTOBER, 2021
** REPLACEMENT PRICE NEW AS EQUIPPED: $153,500
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
