2018 MITUTOYO CRYSTA-APEX S7106

Sell Your MITUTOYO CRYSTA-APEX S7106
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your MITUTOYO CRYSTA-APEX S7106

Overview

Type:
Coordinate Measuring Machines
Manufacturer:
MITUTOYO
Model:
CRYSTA-APEX S7106
Year:
2018
Stock #:
499976
Status:
For Sale

Description

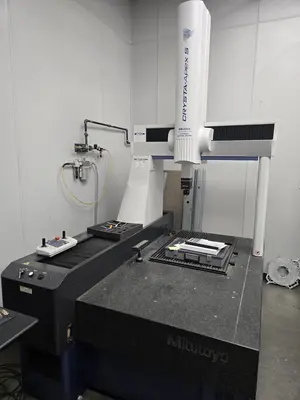

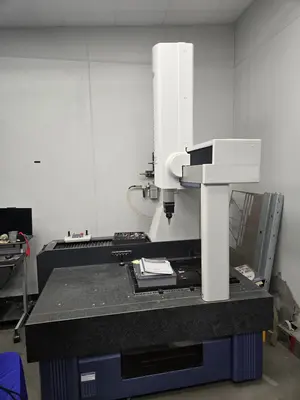

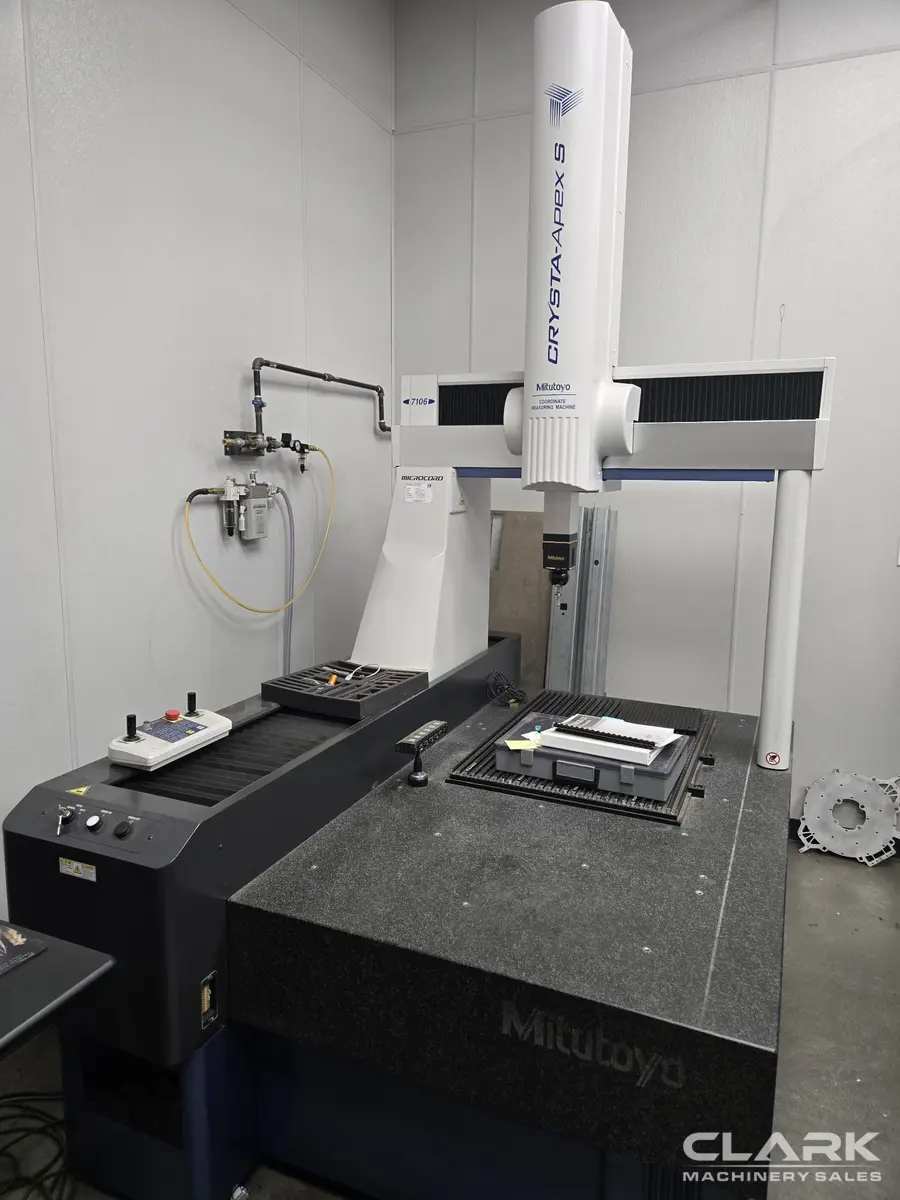

2018 Mitutoyo Crysta-Apex S 7.10.6 is a high accuracy bridge type coordinate measuring machine with a 700 x 1000 x 600 mm measuring range, ideal for precision inspection in small to midsize parts. It combines fast motion, sub micron resolution, and robust thermal compensation, making it a strong choice for aerospace, medical, and high precision job shops.

X-AXIS MEASURING RANGE27.6"701.04 mm
Y-AXIS MEASURING RANGE39.4"1,000.8 mm
Z-AXIS MEASURING MACHINE23.6"599.44 mm
APPROX MACHINE DIMENSIONS1470(W) x 65(D) x 2730(H)1470(W) x 65(D) x 2730(H)

RENISHAW TP20 PROBE

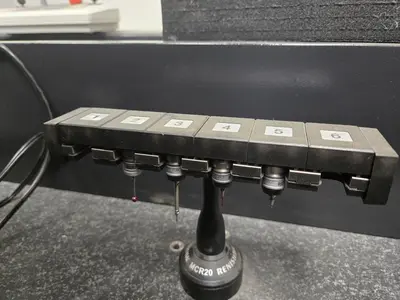

RENISHAW MCR20 MODULE CHANGING RACK
DRIVE SPEED:
- CNC MODE: 0.315 - 11.8 IPS
- MAX. SPEED: 20.43 IPS
- J/S MODE:
-- HIGH SPEED: 0 - 3.15 IPS
-- LOW SPEED: 0 - 0.118 IPS
-- FINE SPEED: 0.002 IPS
MAX. MEASURING SPEED: 0.315 IPS
MAX. DRIVE ACCELERATION:
- EACH AXIS: 52.48 IPS
- MAX. COMBINED: 90.9 IPS
AIR SUPPLY:
- PRESSURE: 58 PSI
- CONSUMPTION: 1.76 CFM
- AIR SOURCE: 3.53 CFM

** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
