| PALLET WIDTH | 15.75" | 400.05 mm |
| PALLET LENGTH | 15.75" | 400.05 mm |
| X-AXIS TRAVEL | 22" | 558.8 mm |
| Y-AXIS TRAVEL | 25" | 635 mm |
| Z-AXIS TRAVEL | 22" | 558.8 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL POSITIONS (ATC) | 50 | 50 |
| Control | CNC (CNC) | CNC (CNC) |

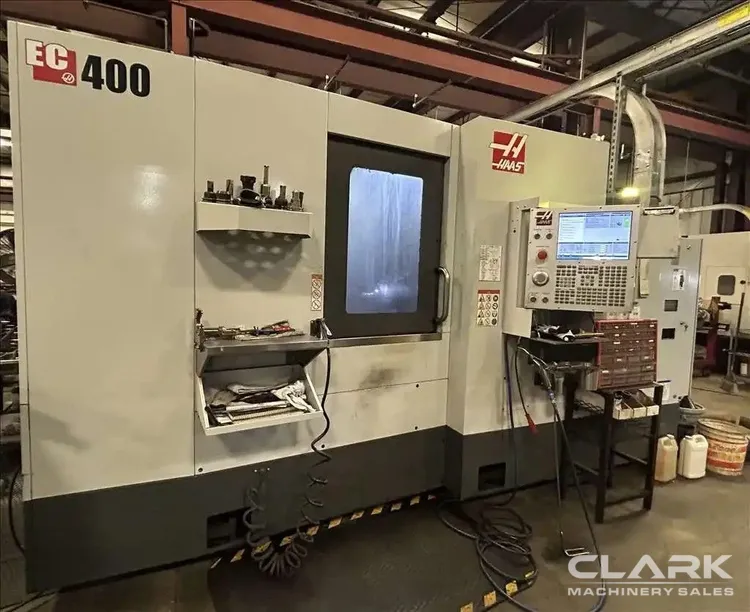

w/ HAAS Control
22"X, 25"Y, 22"Z,
CAT 40 Spindle Taper
50-ATC
Through Spindle Coolant
12,000 RPM Max Spindle Speed
1,400 IPM Rapids
Coolant
Chip Conveyor
(Tombstones NOT Included. CAT 40 Tool Holders Currently in/on the Machine Are Included)
