| MAX CUTTING DIAMETER | 11.02" | 279.91 mm |
| MAX CUTTING LENGTH | 14.96" | 379.98 mm |
| X-AXIS TRAVEL | 8.7" | 220.98 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 1.97" | +/- 1.97" |
| Z-AXIS TRAVEL | 15.75" | 400.05 mm |
| C-AXIS INDEXING | FULL C-AXIS | FULL C-AXIS |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.56" | 65.024 mm |
| SPINDLE BORE | 2.87" | 72.898 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 15 hp | 11.2 kW |
| SPINDLE SPEED | 4,500 RPM | 4,500 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 6" | 152.4 mm |
| SUB SPINDLE - SPINDLE MOTOR | 10 hp | 7.5 kW |
| SUB SPINDLE - SPINDLE SPEED | 4,500 RPM | 4,500 RPM |

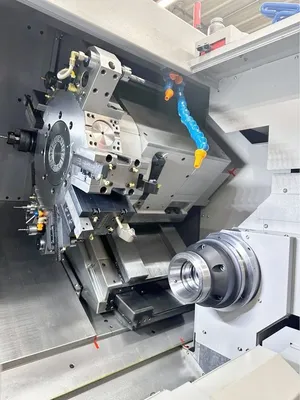

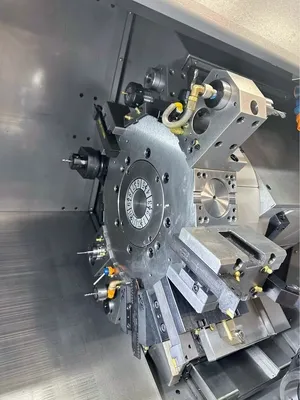

| TURRET CAPACITY | 12 (ALL LIVE CAPABLE) | 12 (ALL LIVE CAPABLE) |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |

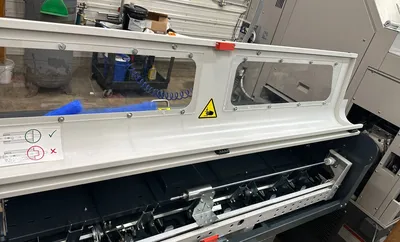

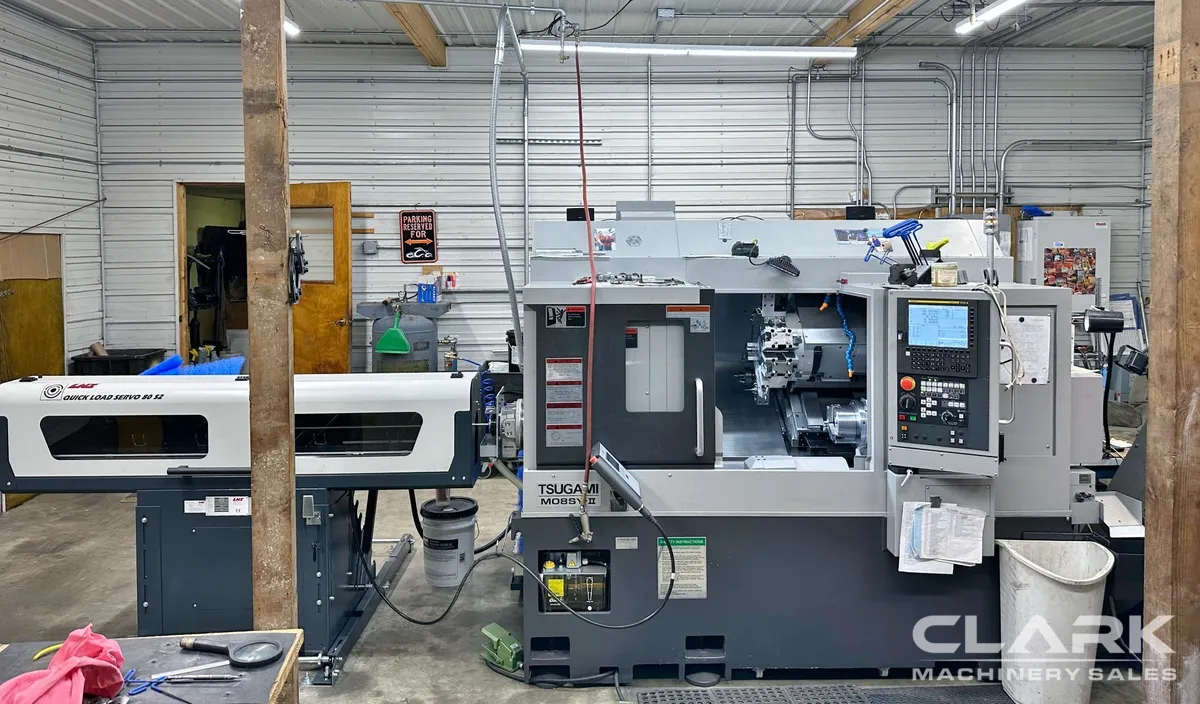

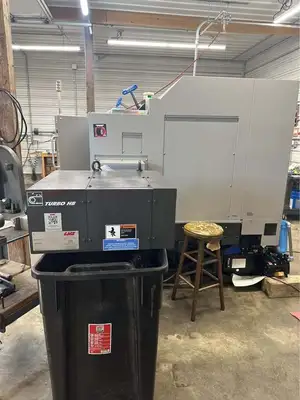

LNS QUICK LOAD SERVO 80 S2 MAGAZINE BAR FEEDER (5’)
FANUC 0i-TF PLUS CONTROL
Y-AXIS
LIVE MILLING
SUB SPINDLE

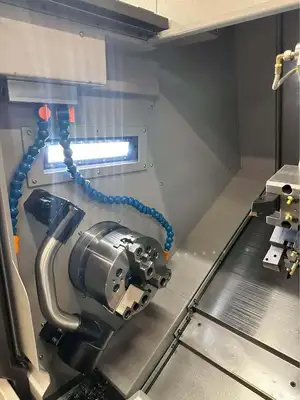

8”, 3-JAW HYDRUALIC CHUCK (MAIN)
6”, 3-JAW HYDRAULIC CHUCK (SUB)
ROYAL QG-65 COLLET CHUCKS (MAIN & SUB)
HIGH-PRESSURE COOLANT (300 PSI)
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
PNEUMATIC PARTS EJECTOR
CHIP CONVEYOR
BOX WAYS ON X & Y AXES

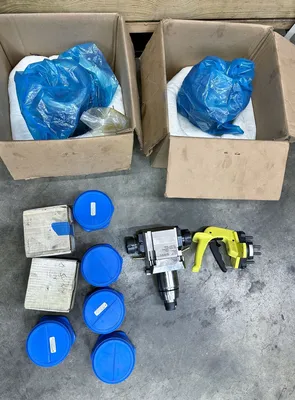

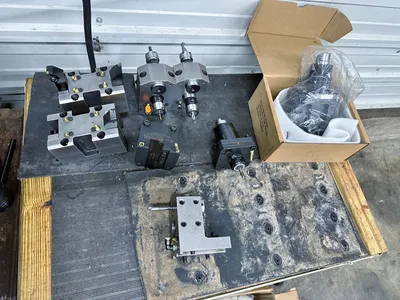

AN ASSORTMENT OF LIVE HOLDERS, STATIC HOLDERS & COLLET ACCESSORIES (SEE PHOTOS)

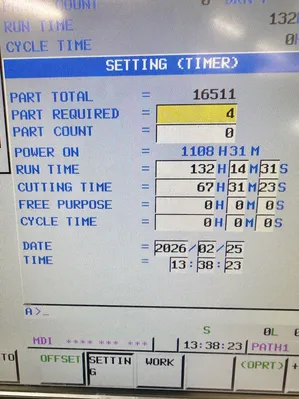

** AS OF MARCH 2026, CUTTING TIME – 67 HOURS
** MACHINE IS LIKE-NEW
** FULL REPLACEMENT COST, AS EQUPPED - $175,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
