Overview
Type:
Swiss Screw Machines
Manufacturer:
STAR
Model:
SV32J-II
Year:
2006
Stock #:
493943
Status:
For Sale
Description

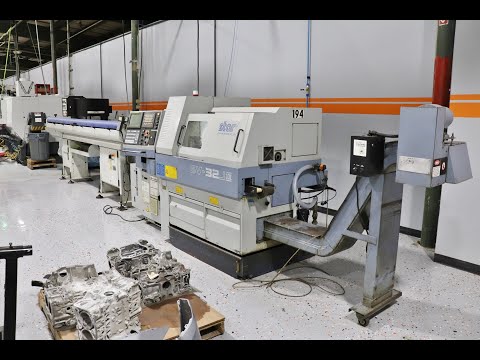

This Star SV32J-II swiss type automatic lathe is ideal for heavy-duty cutting of large diameter parts. It is equipped with Fanuc 18ITB control, Iemca Mini Boss 332-E barfeeder, and 1000 PSI high pressure coolant system.

Specifications
MACHINING DIAMETER1.25"
MAX MACHINING LENGTH5.87"
MAX HEADSTOCK STROKE12.2"
MAIN SPINDLE MOTOR10.2 hp
MAIN SPINDLE INDEXINGFULL C-AXIS
MAIN SPINDLE SPEED7,000 RPM
BACK SPINDLE INDEXINGFULL C-AXIS
BACK SPINDLE SPEED7,000 RPM
TOTAL TOOL CAPACITY (POSITIONS)15
GANG SLIDE TOOL POSITIONS7
TURRET TOOL POSITIONS8
LIVE TOOL SPEEDS6,000 RPM
ControlCNC (FANUC 18ITB)
Weight7040 LBS
Equipped With

C-AXIS ON MAIN AND BACK SPINDLE FANUC 18i-TB CNC CONTROL IEMCA MINI BOSS 332-E MAGAZINE BARFEED 1000 PSI NEW ENGLAND TOOL HIGH PRESSURE COOLANT SYSTEM LONG PART EJECTION PARTS CATCHER PARTS CONVEYOR TURBO SYSTEMS CHIP CONVEYOR 36MM CHANNEL/PUSHER & 17 MM CHANEL/PUSHER TURRET TOOL HOLDERS INCLUDED IN SALE: (8) TOTAL - (2) OF EACH: SINGLE TOOL, DOUBLE TOOL, MAIN TURNING, SUB TURNING (3) BRAND NEW (NEVER USED) DRIVEN CROSS MILLING TOOLS GANG SLIDE: 4 POSITIONS STATIC, 3 POSITIONS LIVE NEW MANUALS INCLUDED: PARTS LIST & OPERATION MANUALS ** MACHINE IS IN PLANT, UNDER POWER. AVAILABLE IMMEDIATELY. * SECOND OWNER OF MACHINE REPLACEMENT COST NEW FOR ABOVE EQUIPPED MACHINE: $290,000

2006 1 1/4" STAR SV32J-II, IEMCA MINI BOSS 332-E

2006 1 1/4" STAR SV32J-II, IEMCA MINI BOSS 332-E
Swiss Screw Machines
