HANSVEDT SM-150B EDM
$3,950.00 USD
Or as low as $78.25 USD/month over 60 months
ConditionUsed
1 available
Or as low as $78.25 USD/month over 60 months

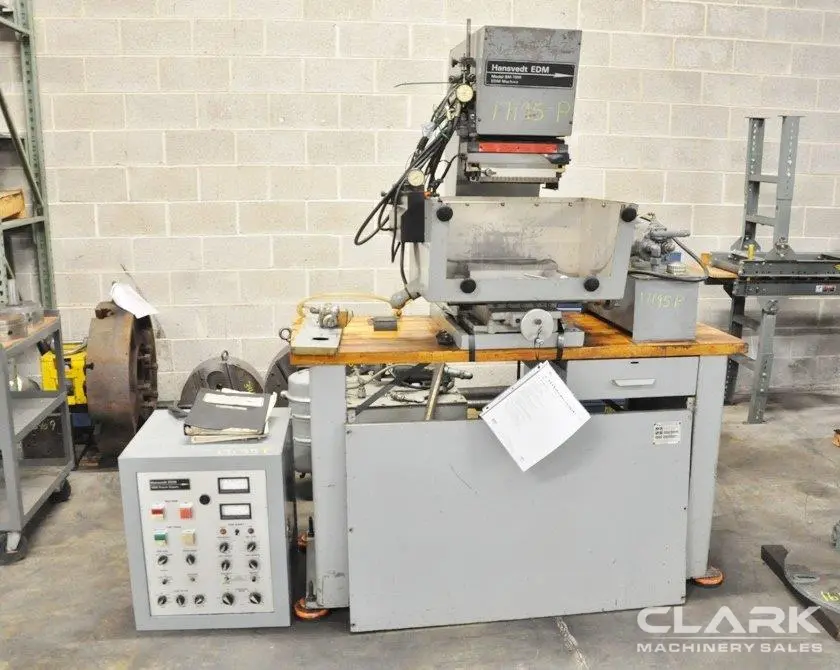

This Hansvedt SM-150B ram EDM system features a 20 amp, 150B power supply and dielectric oil system. This electrical discharge machine features a 13" X 5" platten and 24" X 16" X 11.5" tank.
HANDSVEDT RAM TYPE EDM
SPECIFICATIONS:
WORK TABLE......................... 15" X 9"
TANK SIZE.......................... 24" X 16" X 11.5"
LONGITUDINAL TABLE TRAVEL.......... 8"
CROSS TRAVEL....................... 6"
RAM TRAVEL......................... 6"
MAXIMUM DISTANCE PLATEN TO TABLE... 16"
SIZE OF RAM PLATEN................. 13" X 5"
MAXIMUM ELECTRODE WEIGHT........... 300 LBS
EQUIPPED WITH:
20 AMP, 150B POWER SUPPLY
DIELECTRIC OIL SYSTEM
5" X 10" RAM MOUNTED PERMANENT MAGNETIC CHUCK
6" X 12" PLATEN MOUNTED PERMANENT MAGNETIC CHUCK
MAPLE TOP BENCH
MANUALS
WIRED FOR SINGLE PHASE, 60 CYCLE, 110 VOLTS
DIMENSIONS:
EDM: 40" X 36" X 38"
CONTROL: 20" X 20" X 24"
DIELECTRIC TANK: 22" X 33" X 27"
HYDRAULIC TANK: 9" X 23" X 17"
ASSEMBLED ON BENCH: 76" X 48" X 74"
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
