2011 EDGE TECHNOLOGIES PATRIOT 551

2011 EDGE TECHNOLOGIES PATRIOT 551

Sell Your EDGE TECHNOLOGIES PATRIOT 551
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your EDGE TECHNOLOGIES PATRIOT 551

Overview

Type:
Barfeeds
Manufacturer:
EDGE TECHNOLOGIES
Model:
PATRIOT 551
Year:
2011
Stock #:
490300
Status:
For Sale

Description

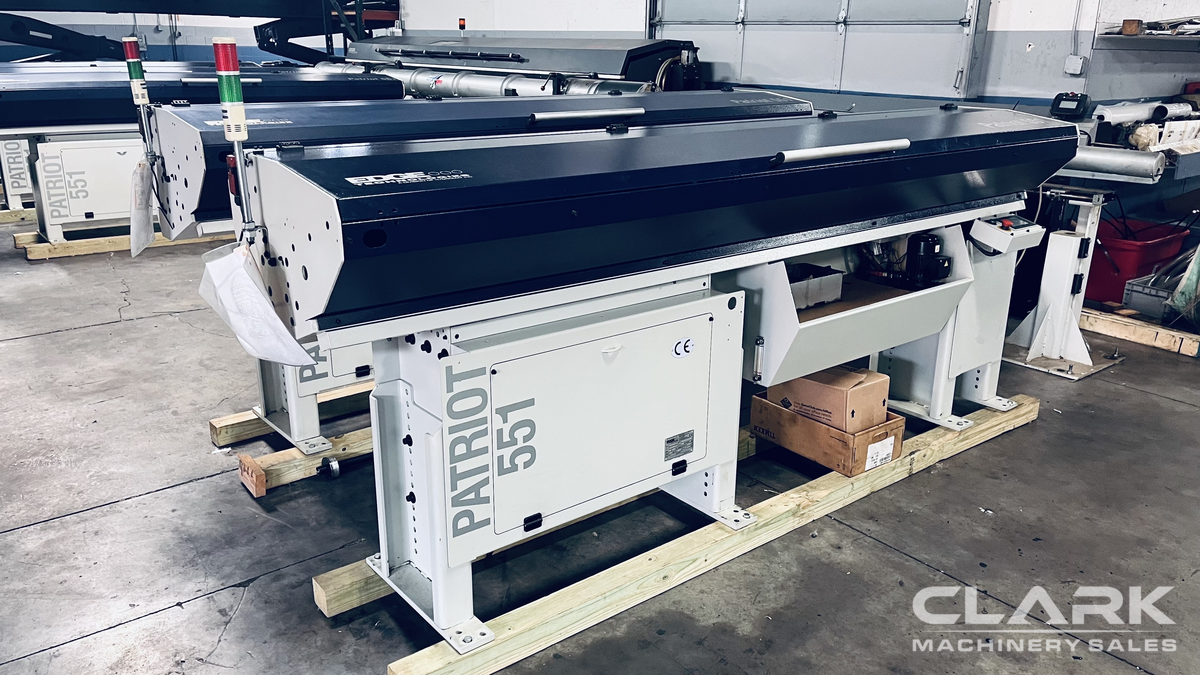

Check out this used 2011 EDGE TECHNOLOGIES PATRIOT 551 barfeed equipment. It has a bar diameter capacity of 2", a max bar length of 8', a maximum remnant length of 16", and a magazine rack capacity of 12". It can load bars in 30 seconds with adjustable feed rates of up to 750 in/min forward and 1000 in/min return. Its dimensions are approximately 128" x 28" x 49" and weighs 2100 lb. This model includes a channel for a 1 5/8" bar and was originally installed on an Okuma Genos L400.

BAR DIAMETER CAPACITY2"50.8 mm
MAX BAR LENGTH8'2.4 m
MAXIMUM REMNANT LENGTH16"406.4 mm
MAGAZINE RACK CAPACITY12"304.8 mm
BAR LOADING CYCLE TIME30 sec.30 sec.
MAX ADJUSTABLE FORWARD FEED RATE750 in/min.19 m/min.
MAX ADJUSTABLE RETURN FEED RATE1,000 in/min.25.4 m/min.
APPROX MACHINE DIMENSIONS128" x 28" x 49"128" x 28" x 49"
APPROX MACHINE WEIGHT2,100 lb952.5 kg

** CONFIGURED WITH A 42MM CHANNEL SET
** REPLACEMENT PRICE NEW: $38,000
** ORIGINALLY INSTALLED ON AN OKUMA GENOS L400
** READY FOR IMMEDIATE INSPECTION, PURCHASE, & REMOVAL
