| SWING OVER BED | 22.4" | 568.96 mm |
| MAX CUTTING DIAMETER | 15.7" | 398.78 mm |
| MAX CUTTING LENGTH | 24.8" | 629.92 mm |
| X-AXIS TRAVEL | 9.8" | 248.92 mm |
| Z-AXIS TRAVEL | 26.8" | 680.72 mm |
| C-AXIS INDEXING | FULL C-AXIS | FULL C-AXIS |
| CHUCK SIZE | 12" | 304.8 mm |
| BAR CAPACITY | 4" | 101.6 mm |
| SPINDLE BORE | 4.5" | 114.3 mm |
| SPINDLE NOSE | A2-11 | A2-11 |
| SPINDLE MOTOR | 35 hp | 26.1 kW |
| SPINDLE SPEED | 2,800 RPM | 2,800 RPM |

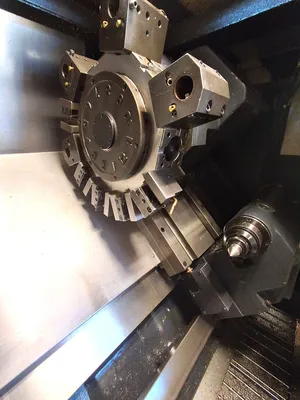

| TURRET CAPACITY | 12 POSITION | 12 POSITION |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 4,000 RPM | 4,000 RPM |
| LIVE MILLING MOTOR | 7.5 hp | 5.6 kW |
MAX CUTTING DIAMETER......... 15.7"
MAX CUTTING LENGTH........... 24.8"
X-AXIS TRAVEL................ 11.1"
Z-AXIS TRAVEL................ 26.8"
C-AXIS INDEXING.............. FULL C-AXIS
CHUCK SIZE................... 12"
BAR CAPACITY................. 4"
SPINDLE BORE................. 4.5"
SPINDLE NOSE................. A2-11
SPINDLE MOTOR................ 35 HP
SPINDLE SPEED................ 2,800 RPM
LIVE MILLING................. YES
LIVE MILLING SPEED........... 4,000 RPM
LIVE MILLING MOTOR........... 7.5 hp

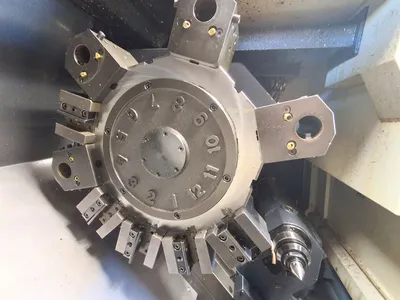

TURRET CAPACITY.............. 12

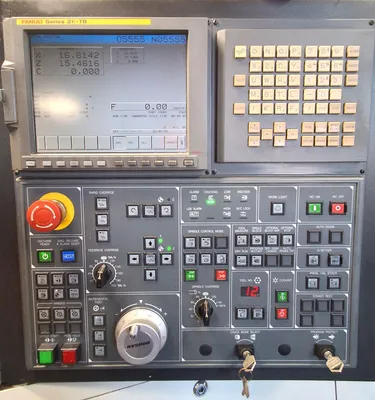

FANUC SERIES 21i-TB CNC CONTROL
LIVE MILLING, FULL C-AXIS

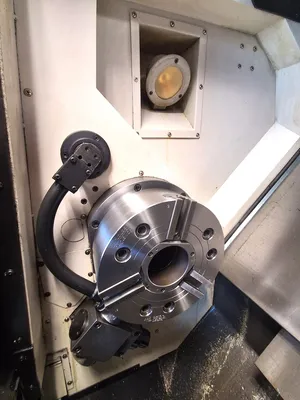

12", 3-JAW SAMCHULLY POWERGRIP HYDRAULIC CHUCK

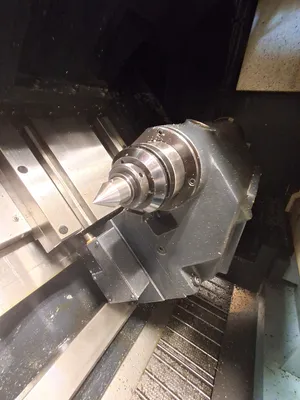

PROGRAMMABLE TAILSTOCK
AUTOMATIC TOOL PRESETTER
PARTS CATCHER

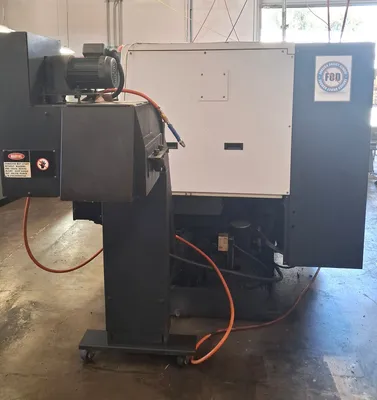

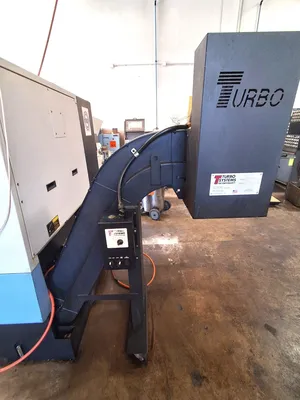

TURBO SYSTEMS CHIP CONVEYOR
COOLANT SYSTEM
ASSORTMENT OF LIVE & STATIC TOOLHOLDERS

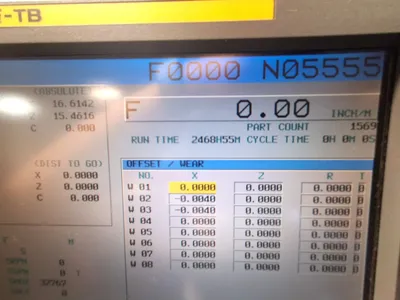

** AS OF SEPTEMBER, 2026 - RUN TIME: 2,468 HOURS
** UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
This equipment has been sold. Similar equipment available now is shown below.
