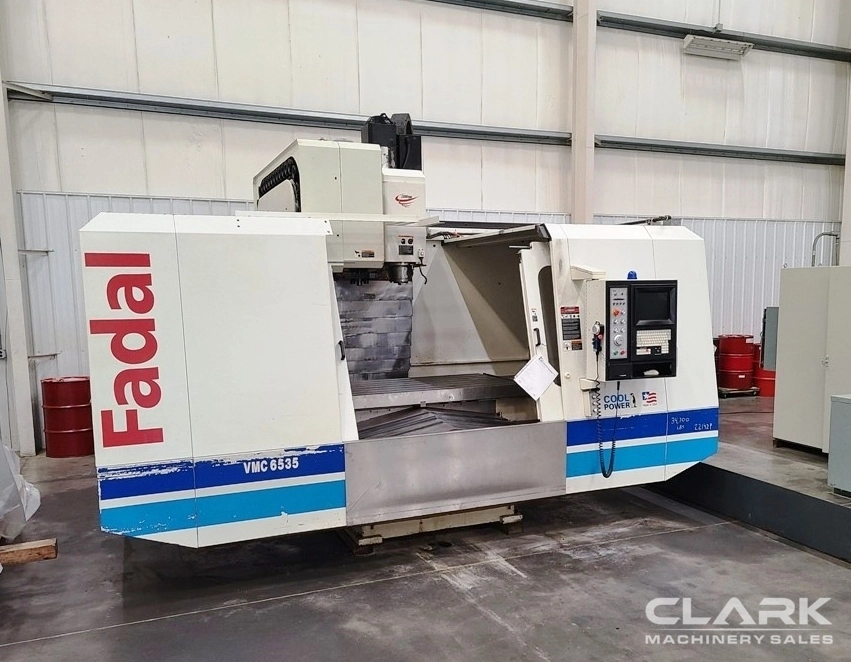

2002 FADAL VMC-6535-50
ConditionUsed
1 available
High performance, all box way Fadal 6535 with 50 taper spindle provides robust cutting and heavy chip removal with chip conveyor. Through spindle coolant is a great advantage on a machine of this size.
FADAL 32MP CNC CONTROL
THROUGH SPINDLE COOLANT
WASH DOWN COOLANT SYSTEM
REMOTE MPG
HIGH TORQUE OPTION
CHIP CONVEYOR
HIGH SPEED CPU
GRAPHICS
RIGID TAPPING
(2) GROUND WAYS PER AXIS (X/Y/Z)
4 WAY SURFACES ON SADDLE
DUAL BALL SCREW SUPPORTS (X/Y/Z)
422K EXPANDED MEMORY
30 AMPS @ 460 VAC
VOLTAGE 480 VAC
COOL POWER
** MACHINE CAN BE SEEN UNDER POWER. AVAILABLE IMMEDIATELY
High performance, all box way Fadal 6535 with 50 taper spindle provides robust cutting and heavy chip removal with chip conveyor. Through spindle coolant is a great advantage on a machine of this size.
Imperial
| TABLE LENGTH | 74.8" |
| TABLE WIDTH | 26.5" |
| TABLE CAPACITY | 4,250 lb |
| X-AXIS TRAVEL | 65" |
| Y-AXIS TRAVEL | 35" |
| Z-AXIS TRAVEL | 34" |
| SPINDLE SPEED | 7,500 RPM |
| SPINDLE MOTOR | 22.5 hp |
| SPINDLE TAPER | CAT 50 |
| TOOL CAPACITY (ATC) | 32 |
| RAPID TRAVERSE - X AXIS | 900 in/min. |
| RAPID TRAVERSE - Z-AXIS | 700 in/min. |
| CUTTING FEEDRATE | 400 ipm |
| APPROX MACHINE DIMENSIONS | 180" LR X 128" FB X 117" HIGH |
| Weight | 34,700 |
FADAL 32MP CNC CONTROL
THROUGH SPINDLE COOLANT
WASH DOWN COOLANT SYSTEM
REMOTE MPG
HIGH TORQUE OPTION
CHIP CONVEYOR
HIGH SPEED CPU
GRAPHICS
RIGID TAPPING
(2) GROUND WAYS PER AXIS (X/Y/Z)
4 WAY SURFACES ON SADDLE
DUAL BALL SCREW SUPPORTS (X/Y/Z)
422K EXPANDED MEMORY
30 AMPS @ 460 VAC
VOLTAGE 480 VAC
COOL POWER
** MACHINE CAN BE SEEN UNDER POWER. AVAILABLE IMMEDIATELY
