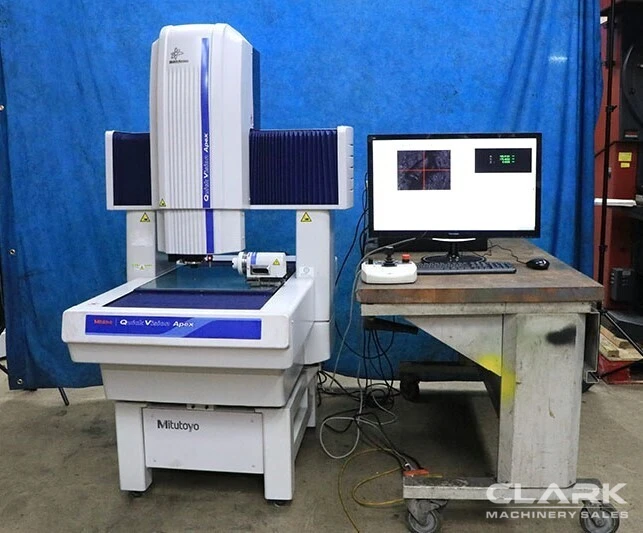

| MEASURING RANGE | 15.75″ x 15.75″ x 9.84″ | 15.75″ x 15.75″ x 9.84″ |
| X&Y AXES DRIVE SPEEDS | 942 in/min. | 23.9 m/min. |
| RESOLUTION OF SCALE | 0.1 μm LINEAR ENCODER | 0.1 μm LINEAR ENCODER |
| OBSERVATION UNIT TYPE | ZOOM (8 POSITIONS) | ZOOM (8 POSITIONS) |
| IMAGE SENSOR | COLOR CMOS CAMERA ILLUMINATION UNIT | COLOR CMOS CAMERA ILLUMINATION UNIT |
| COAXIAL LIGHT | WHITE LED | WHITE LED |
| TRANSMITTED LIGHT | WHITE LED | WHITE LED |
| PRL | 4-QUADRANT FIXED WHITE LED | 4-QUADRANT FIXED WHITE LED |
| SIZE OF STAGE GLASS | 19.41″ x 21.69″ | 19.41″ x 21.69″ |
| MAXIMUM STAGE LOADING | 88 LBS | 88 LBS |
| APPROX MACHINE DIMENSIONS | 55.39″ x 40.43″ x 54.37″ | 55.39″ x 40.43″ x 54.37″ |
| APPROX MACHINE WEIGHT | 1276 LBS | 1276 LBS |
ACCURACY
E1x, E1Y: (1.5+3L/1000) μm
E1Z: (1.5+4L/1000) μm
E2: (2+4L/1000) μm
OBSERVATION UNIT STD: 1X-2X-6X
ACCURACY GUARANTEED TEMPERATUR RANGE: 20±1°C
DELL COMPUTER
WINDOWS 7 PRO OS
MITUTOYO SOFTWARE, QVPAK VERSION 12
HIGH-PERFORMANCE MULTI AUTOFOCUS
MAGNIFIED VISION
RENISHAW PROBE HEAD, USES A TP-20 STYLUS
MITUTOYO QVPSU-600 POWER SUPPLY UNIT
MITUTOYO QV-INDEX CNC UNIT, OPTION NO. 363-002A, SN: 100351602
MULTI-FUNCTION CONTROL BOX, VARIABLE SPEED
CONTROL, JOYSTICK, E-STOP BUTTON & 4-DIGIT STATUS LED
TRACKING FOCUS FEATURE
* LIGHTLY USED. CAME OUT OF MEDICAL FACILITY.
RELACEMENT COST FOR ABOVE EQUIPPED MACHINE: $105,000 + ROTARY TABLE
** SERVICED BY MITUTOYO ON 6/25/2024
** AVAILABLE FOR IMMEDIATE INSPECTION & DELIVERY
This equipment has been sold. Similar equipment available now is shown below.
