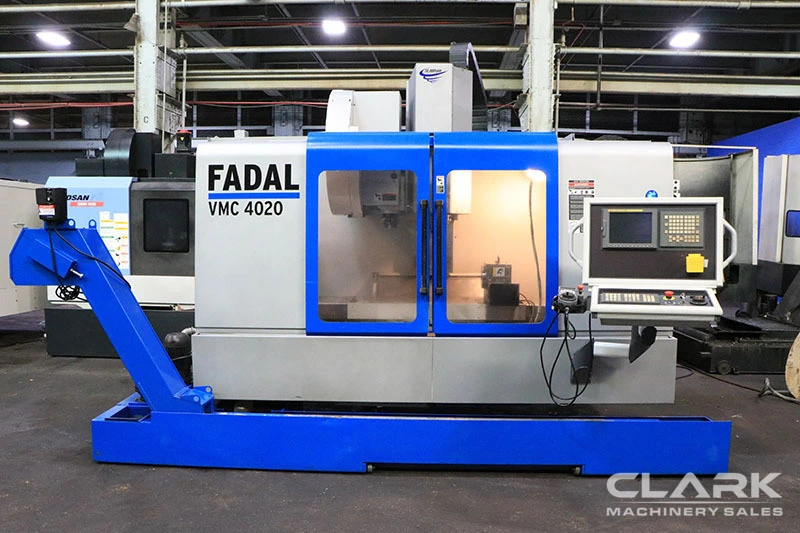

2006 FADAL VMC-4020HT

Sell Your FADAL VMC 4020HT
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Request Financing
Sell Your FADAL VMC 4020HT

Overview

Type:
Vertical Machining Centers
Manufacturer:
FADAL
Model:
VMC 4020HT
Year:
2006
Stock #:
498643
Status:
For Sale

Description

2006 FADAL VMC-4020HT vertical machining center. 48" table, 10K RPM spindle, 24 ATC, 4-axis CNC control. Comes with chip conveyor, rigid tapping, AC servos. Used, ready for immediate purchase.

TABLE LENGTH48"1,219.2 mm
TABLE WIDTH20"508 mm
TABLE CAPACITY3,641 lb1,651.5 kg
X-AXIS TRAVEL40"1,016 mm
Y-AXIS TRAVEL20"508 mm
Z-AXIS TRAVEL20"508 mm
SPINDLE SPEED10,000 RPM10,000 RPM
SPINDLE MOTOR22.5 hp16.8 kW
SPINDLE TAPERCAT 40CAT 40
TOOL CAPACITY (ATC)2424
RAPID TRAVERSE - X AXIS900 in/min.22.9 m/min.
RAPID TRAVERSE - Z-AXIS700 in/min.17.8 m/min.
CUTTING FEEDRATE400 ipm
ROTARY OR TRUNNIONYesYes
APPROX MACHINE WEIGHT11,000 lb4,989.5 kg
APPROX MACHINE DIMENSIONS117" X 94" X 100"117" X 94" X 100"

FANUC 18i-MB5 4-AXIS CNC CONTROL
FADAL 4TH AXIS ROTARY TABLE
10,000 RPM HIGH TORQUE SPINDLE OPTION
DUAL ARM SIDE-MOUNTED TOOL CHANGER (24) STATIONS
CHIP CONVEYOR
BOX WAYS ON ALL AXES
RIGID TAPPING
AC SERVO MOTORS ON ALL AXES
BIJUR AUTOMATIC LUBRICATION SYSTEM
COOLAN & WASHDOWN PUMPS

** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
