Equipment
Turning
CNC Lathes Multi-Axis

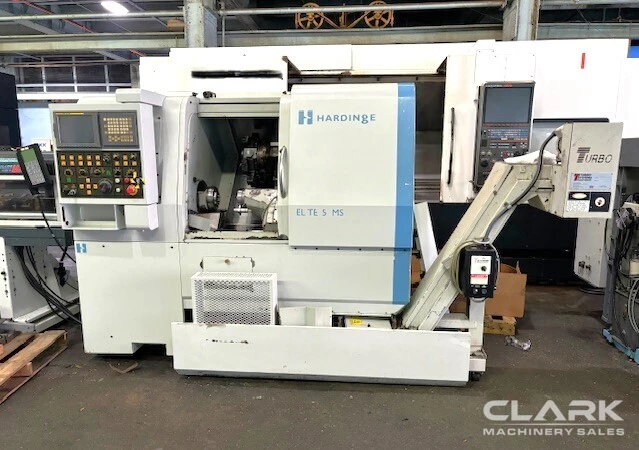

2007 HARDINGE ELITE 51 MS W/BARFEED

2007 HARDINGE ELITE 51 MS W/BARFEED

Sell Your HARDINGE ELITE 51 MS
410.252.5494
Sales@ClarkMachinerySales.com
$39,500.00 USD

Or as low as $782.50 USD/month over 60 months

ConditionUsed
1 available
Sell Your HARDINGE ELITE 51 MS

Overview

Type:
CNC Lathes Multi-Axis
Manufacturer:
HARDINGE
Model:
ELITE 51 MS
Year:
2007
Stock #:
498740
Status:
For Sale

Description

HARDINGE ELITE 51 MS multi-axis CNC Lathe, with LNS Quick Load Servo S3 barfeed, used, swing over bed: 18", max cutting diameter: 11.1", distance between centers: 16", X-axis travel: 5.74", Z-axis travel: 15.98", C-axis indexing: 0.001 degrees, spindle speed: 5,000 RPM, sub spindle speed: 6,000 RPM.

SWING OVER BED18"457.2 mm
MAX CUTTING DIAMETER11.1"281.94 mm
DISTANCE BETWEEN CENTERS16"406.4 mm
X-AXIS TRAVEL5.74"145.8 mm
Z-AXIS TRAVEL15.98"405.89 mm
C-AXIS INDEXING0.001 DEGREES0.001 DEGREES
CHUCK SIZE8"203.2 mm
BAR CAPACITY2"50.8 mm
SPINDLE NOSEA2-6A2-6
SPINDLE MOTOR25 hp18.6 kW
SPINDLE SPEED5,000 RPM5,000 RPM
RAPID TRAVERSE RATE - X-AXIS945 in/min.24 m/min.
RAPID TRAVERSE RATE - Z-AXIS945 in/min.24 m/min.
SUB SPINDLEYesYes
SUB SPINDLE - SPINDLE SPEED6,000 RPM6,000 RPM
TURRET CAPACITY12 STATIONS12 STATIONS
LIVE MILLINGYesYes
LIVE MILLING SPEED5,000 RPM5,000 RPM
LIVE MILLING MOTOR5 hp3.7 kW
Weight7500 LBS7500 LBS

FANUC 18i-TB CNC CONTROL
LNS QUICK LOAD SERVO S3 BAR FEEDER
C-AXIS
SUB SPINDLE
LIVE TOOLING
20C COLLET ON MAIN SPINDLE
15C COLLET ON SUB SPINDLE
TOOL SETTER
HIGH PRESSURE COOLANT
CHIP CONVEYOR
PARTS CATCHER
AIR BLAST
SPINDLE LINERS
PART DETECTOR
MISC. AXIAL AND RADIAL TOOL HOLDERS INCLUDED
ASSORTMENT OF FIXED TOOL HOLDERS

MANUFACTURE DATE: 12/7/2007

** 8750 RUN TIME HOURS
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
