Overview

Type:
CNC Lathes Multi-Axis
Manufacturer:
TAKISAWA
Model:
TS-3000YS
Year:
2022
Stock #:
498815
Status:
For Sale

Description

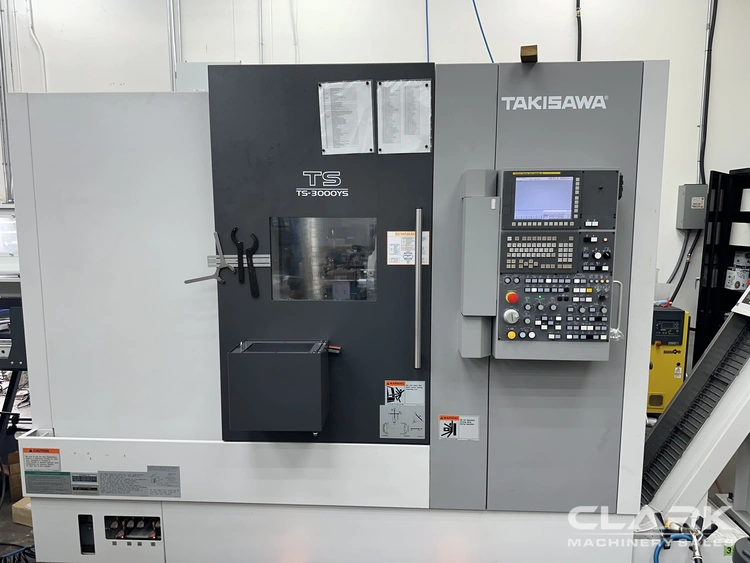

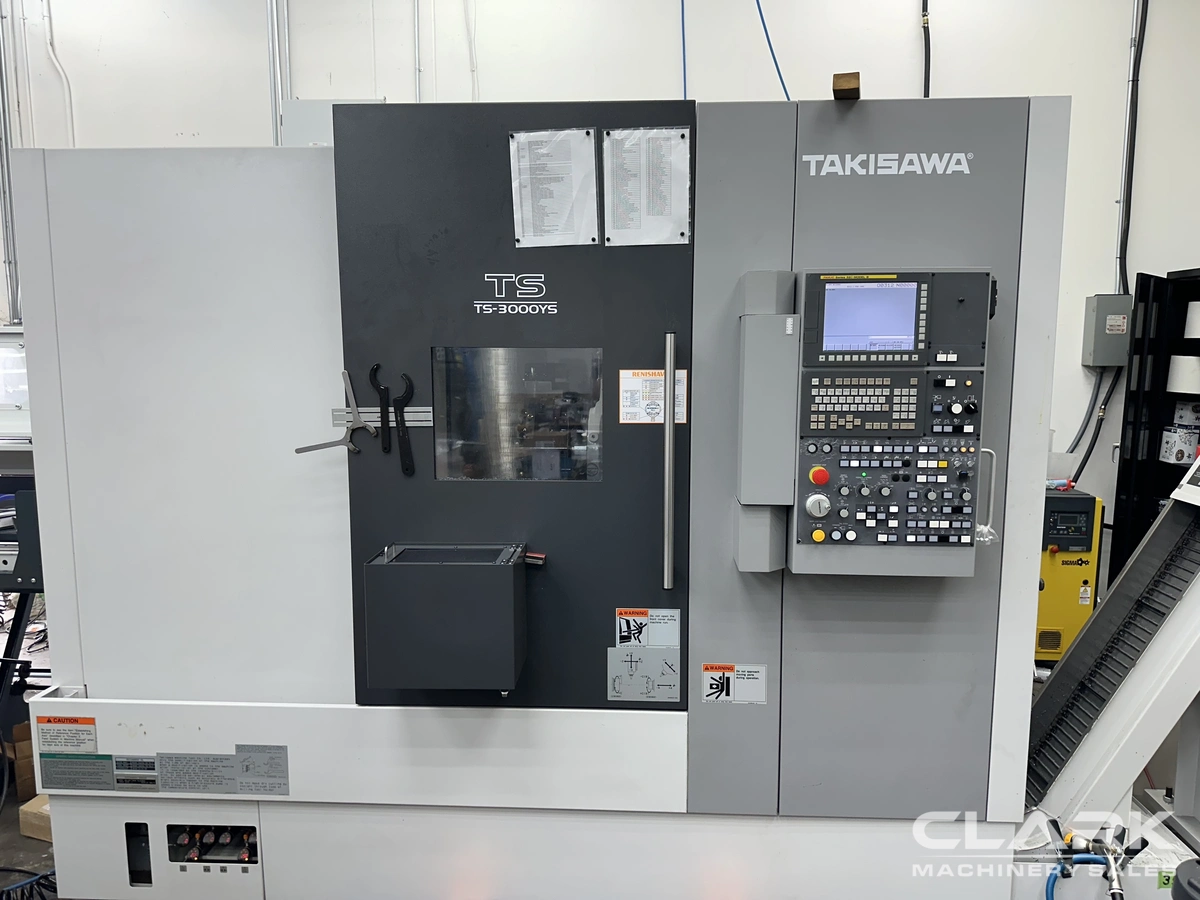

TAKISAWA TS-3000YS, 2022 used CNC Lathes Multi-Axis. Features 11.5” swing over bed, 21.46” max cutting length, and powerful 20 hp spindle motor. Equipped with FANUC 32i Model B CNC Control, sub spindle, Y-axis, C-axis, LNS QLS80 S2 bar feeder, and chip conveyor.

SWING OVER BED11.5"292.1 mm
MAX CUTTING DIAMETER11.5"292.1 mm
MAX CUTTING LENGTH21.46"545.08 mm
X-AXIS TRAVEL10.28"261.11 mm
Y-AXISYesYes
Y-AXIS TRAVEL-1.96" / 2.75"-1.96" / 2.75"
Z-AXIS TRAVEL24.8"629.92 mm
C-AXIS INDEXING0.0010.001
BAR CAPACITY2.64"67.056 mm
SPINDLE BORE3.03"76.962 mm
SPINDLE MOTOR20 hp14.9 kW
SPINDLE SPEED5,000 RPM5,000 RPM
SUB SPINDLEYesYes
SUB SPINDLE - SPINDLE BORE2.09"53.086 mm
SUB SPINDLE - SPINDLE MOTOR14.8 hp11 kW
SUB SPINDLE - SPINDLE SPEED6,000 RPM6,000 RPM
SUB SPINDLE / W-AXIS TRAVEL26.18"664.97 mm
TURRET CAPACITY1212
TURRET TYPEBMTBMT
LIVE MILLINGYesYes
LIVE MILLING SPEED6,000 RPM6,000 RPM
LIVE MILLING MOTOR10 hp7.5 kW
Dimensions86" X 170" X 91"86" X 170" X 91"
Weight15,000 LBS15,000 LBS

FANUC 32i MODEL B CNC CONTROL
SUB SPINDLE
Y-AXIS
C-AXIS
ROYAL QUICK-GRIP 65 COLLET SYSTEMS (MAIN & SUB)
RENISHAW PROBING SYSTEM
LNS QLS80 S2 BAR FEEDER
CHIP CONVEYOR
PARTS CATCHER FOR RIGHT SPINDLE
AIR OR WATER THROUGH THE CENTER OF THE COUNTER SPINDLE
STATIONARY AND DRIVEN TOOLS INCLUDED (AS PICTURED)

HOURS OF USE AS OF 7/2/2024:
- POWER ON: 4,240 HOURS
- RUN TIME: 3,214 HOURS
- CUTTING TIME: 2,042 HOURS

NOTE: MACHINE HAS SEEN VERY LITTLE USE. AVAILABLE IMMEDIATELY
