1981 MITSUI MSG-200-MH
$5,500.00 USD
ConditionUsed
1 available

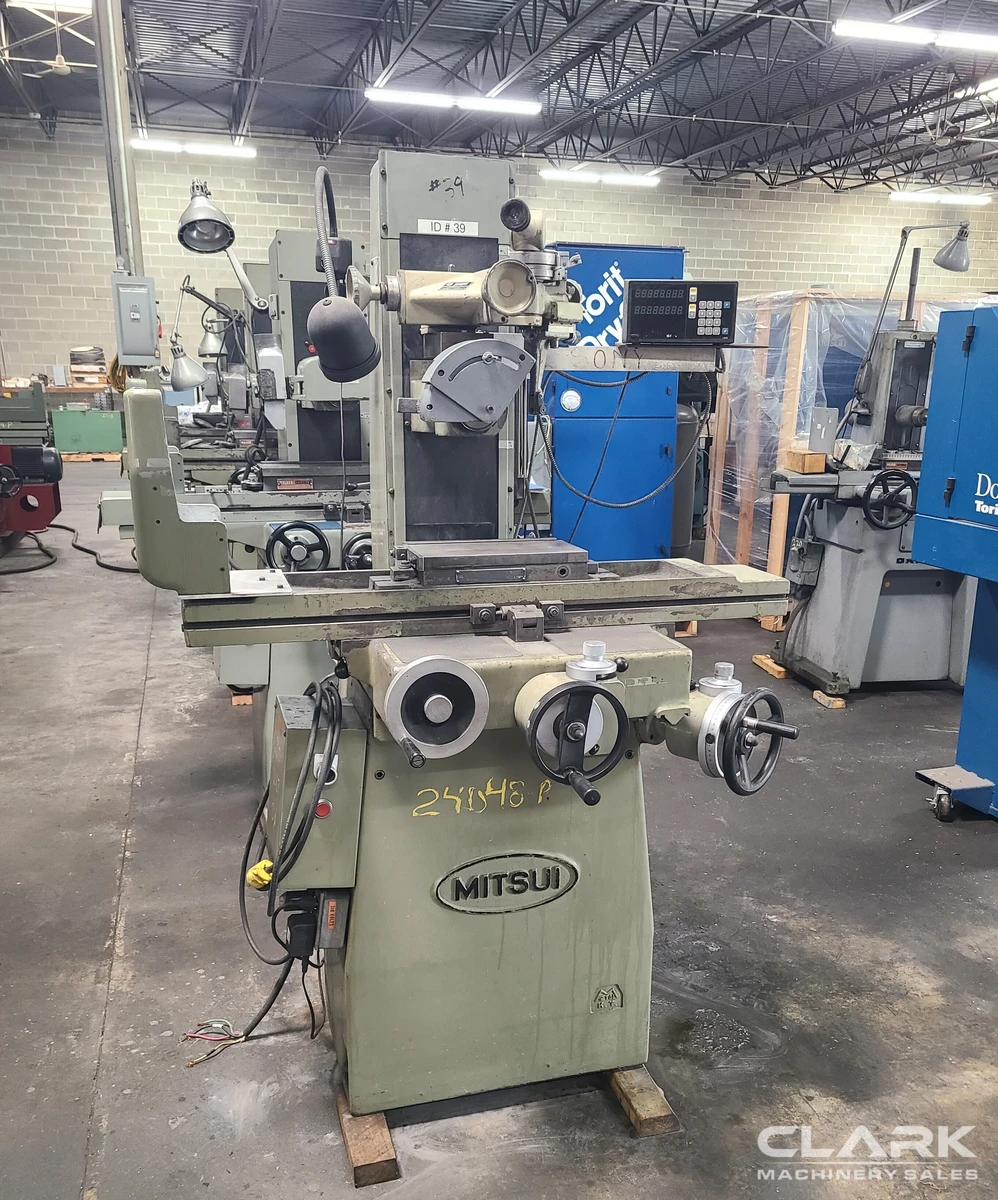

MITSUI MSG-200-MH Surface Grinder (1981 model). Features a 6" x 12" fine pole permanent magnetic chuck, Sony single axis digital readout, fine feed on Y and Z axes (.00005" increments), Optidress wheel dresser, and one-shot lube. Wired for 3-phase, 220V.
DIMENSION OF WORKING SURFACE: 14" x 6-1/4"
MAXIMUM GRINDING LENGTH & WIDTH: 14" x 7"
MAXIMUM HEIGHT FROM TABLE SURFACE TO GRINDING WHEEL SPINDLE CENTER: 15"
MAXIMUM LONGITUDINAL MOVEMENT OF TABLE: 15"
MAXIMUM CROSS MOVEMENT OF TABLE: 8"
TABLE MOVEMENT PER HAND WHEEL REVOLUTION: 4"
HAND WHEEL FOR VERTICAL FEED:
PER ONE REVOLUTION: .05"
PER ONE DIVISION: .0001"
HAND WHEEL FOR CROSS FEED:
PER ONE REVOLUTION: .1"
PER ONE DIVISION: .001"
HEIGHT FROM FLOOR TO TABLE SURFACE: 42"
WHEEL SIZE: 7" DIAMETER x 1/2" WIDTH x 1-1/4" BORE
6" X 12" FINE POLE PERMANENT MAGNETIC CHUCK
SONY SINGLE AXIS DIGITAL READ OUT
FINE FEED ON Y AXIS, .00005" INCREMENTS
FINE FEED ON Z AXIS, .00005" INCREMENTS
OPTIDRESS WHEEL DRESSER
ONE SHOT LUBE
1 WK MAIN MOTOR
WIRED FOR 3 PHASE, 60 CYCLE, 220 VOLTS
* MACHINE CAME OUT OF LOCAL SINGLE SHIFT SHOP.
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
