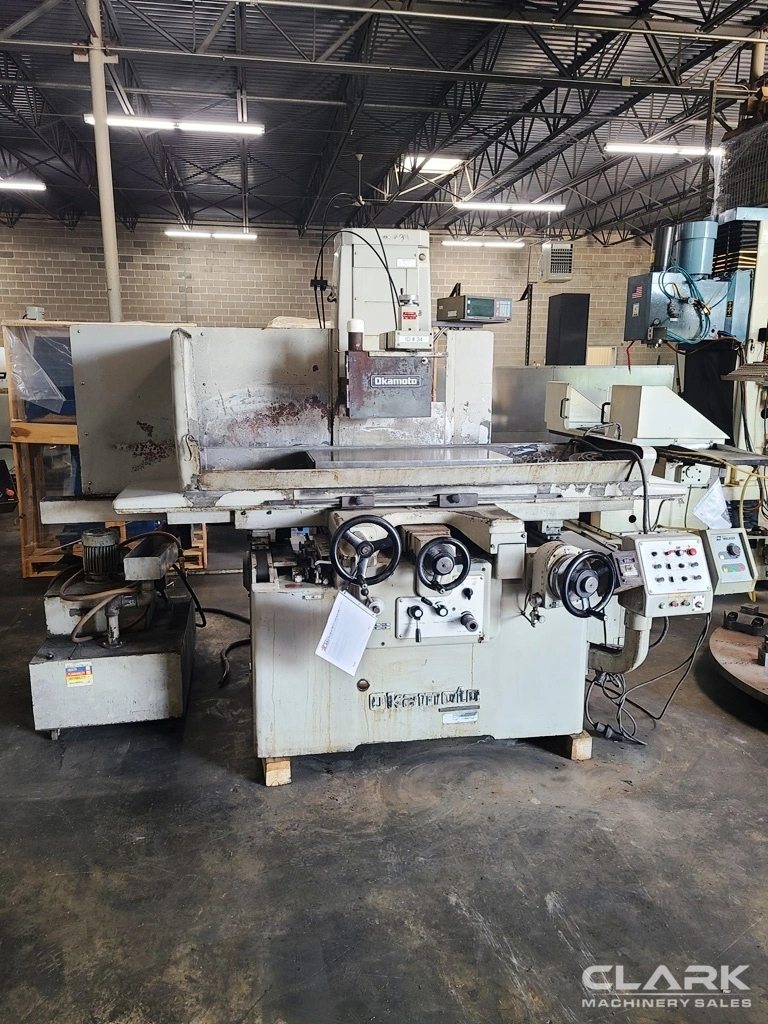

1989 OKAMOTO 1632N | Grinders, Reciprocating Surface

MAXIMUM GRINDING: 16" WIDE x 32" LONG
MAXIMUM VERTICAL CLEARANCE:
14" DIAMETER WHEEL (50 Hz): 20.6"
12" DIAMETER WHEEL (60 Hz): 21.6"
TABLE LOAD CAPACITY: 1,550 LBS

MAXIMUM TABLE TRAVEL (MANUAL): 17.3" x 37.4"
TABLE WORKING SURFACE: 15.7" x 37.4"

LONGITUDINAL MOVEMENT OF TABLE
HYDRAULIC FEED: 10' to 83' PER MINUTE

CROSS MOVEMENT OF SADDLE
HYDRAULIC INTERMITTENT FEED: 0.02" TO 0.8"
HYDRAULIC CONTINUOUS FEED: 8" TO 40" PER MINUTE

HAND FEED PER REVOLUTION: 0.25"
GRADUATION OF HANDWHEEL: 0.001"

VERTICAL MOVEMENT OF WHEELHEAD
AUTOMATIC FEED PER TABLE STROKE: 0.0002" TO 0.0015"
AUTOMATIC FEED PER SADDLE REVERSAL: 0.0002 TO 0.0015"
HAND FEED PER REVOLUTION: 0.05"
MANUAL INCREMENTAL FEED: 0.0001" TO 0.0015"
GRADUATION OF HANDWHEEL: 0.0001"
RAPID FEED (50/60 Hz): 16"/19" PER MINUTE

GRINDING WHEEL DIAMETER (50/60 Hz): 14"/12"
GRINDING WHEEL WIDTH: 1-1/2"
GRINDING WHEEL BORE: 5"
