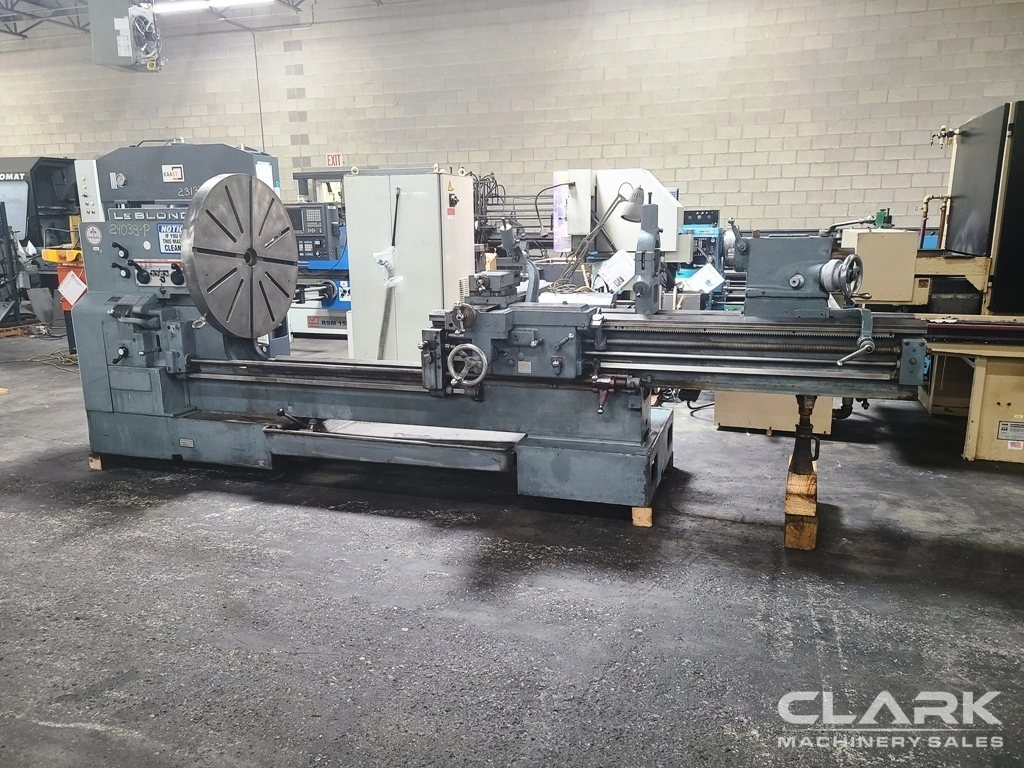

1962 LEBLOND SLIDING GAP BED LATHE 24" x 72"/116"
ConditionUsed
1 available
LEBLOND 24" Regal Sliding Gap Bed CNC Lathe, 1962, used. Max Swing: 26.25", Swing over Cross Slide: 18.25", Swing over Gap: 52.5" (MAX), Distance between Centers: 116" (bed open), Spindle Bore: 2.125", Spindle Motor: 15 hp, Speed: 1,080 RPM. Equipped with face plate, steady rest, taper attachment, and more.
SPINDLE BORE: 2-1/8"
SWING OVER WAYS, BED CLOSED: 26-1/4"
SWING IN GAP: 52-1/2" Maximum
DISTANCE BETWEEN CENTERS, BED CLOSED: 72"
DISTANCE BETWEEN CENTERS, BED OPEN: 116"
(12) SPINDLE SPEEDS: 27 to 1080 RPM
(48) FEEDS: .0036" TO .205" PER REVOLUTION
(48) THREADS: 2 TO 112 TPI
#5 MORSE TAPER IN TAILSTOCK QUILL
TAILSTOCK QUILL DIAMETER: 3-1/8"
TAILSTOCK QUILL TRAVEL: 8"
SWING OVER CROSS SLIDE: 18-1/4"
SPINDLE NOSE: L2
OVERALL LENGTH, BED EXTENDED: 16'
38" DIAMETER FACE PLATE
2-SPEED TAILSTOCK
TAPER ATTACHMENT
15" ROLLER TYPE STEADY REST
12" ROLLER TYPE STEADY REST
7" ROLLER TYPE STEADY REST
FOLLOWER REST
QUICK CHANGE TOOL POST
REMOVABLE CHIP PAN
HARD REPLACEABLE BED WAYS, VERY GOOD CONDITION
THREAD CHASING DIAL
INCH GRADUATED DIALS ON CROSS SLIDE & TOP COMPONENTS
NO BED SUPPORT FOR EXTENDED OPERATION
MISSING (1) BED CLAMP
COOLANT PUMP
WIRED FOR 3 PHASE, 60 HZ, 230/460 VOLTS
15 HP SPINDLE MOTOR
NOTE: MACHINE CAME OUT OF GOVERNMENT FACILITY. LIGHTLY USED.
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
