2017 HYUNDAI WIA I-CUT400TD | Vertical Machining Centers

Sell Your HYUNDAI WIA I-CUT400TD
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your HYUNDAI WIA I-CUT400TD

Overview

Type:
Vertical Machining Centers
Manufacturer:
HYUNDAI WIA
Model:
I-CUT400TD
Year:
2017
Stock #:
498905
Status:
For Sale

Description

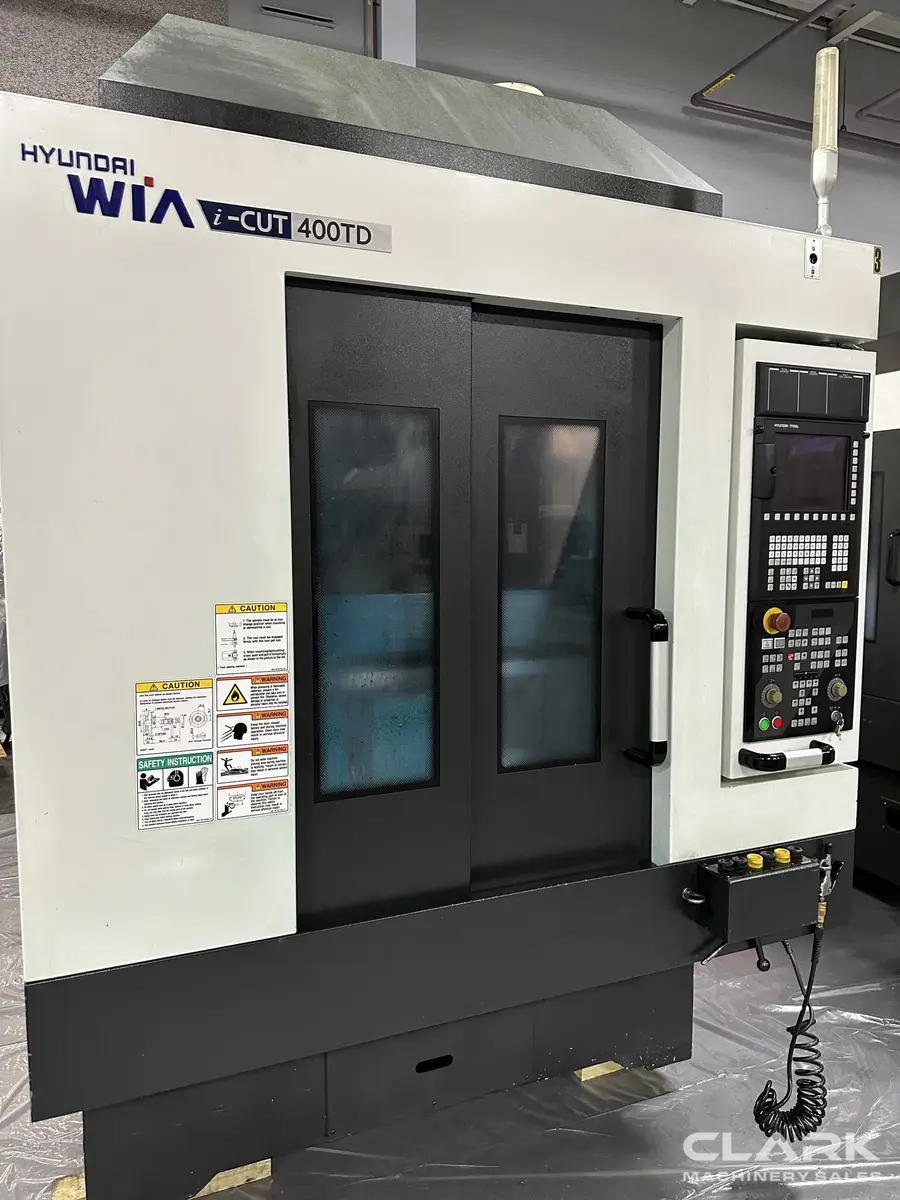

HYUNDAI WIA I-CUT400TD Vertical Machining Center, 2017, used. Key specs: table 25.6"x 15.7", 2 pallets, X/Y/Z travels 20.5"/15.7"/13", 15,000 RPM spindle, 19 hp motor, BT 30 taper, 21-tool ATC. Features: through spindle coolant, manual pulse generator, mist collectors.

TABLE LENGTH25.6"650.24 mm
TABLE WIDTH15.7"398.78 mm
NUMBER OF PALLETS22
TABLE CAPACITY1,100 lb499 kg
X-AXIS TRAVEL20.5"520.7 mm
Y-AXIS TRAVEL15.7"398.78 mm
Z-AXIS TRAVEL13"330.2 mm
SPINDLE SPEED15,000 RPM15,000 RPM
SPINDLE MOTOR19 hp14.2 kW
SPINDLE TAPERBT 30BT 30
TOOL CAPACITY (ATC)2121
MAX RAPIDS2,204 in/min.56 m/min.
APPROX MACHINE WEIGHT10,600 lb4,808.1 kg
APPROX MACHINE DIMENSIONS68" x 116" x 96"68" x 116" x 96"

HYUNDAI-iTROL CONTROL
200 PSI THROUGH SPINDLE COOLANT
REMOTE MANUAL PULSE GENERATOR
RS-232 / ETHERNET
AOF ENVIRONMENTAL SYSTEMS MIST COLLECTORS

** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
