CINCINNATI HORIZONTAL / VERTICAL MILLING MACHINE
Sold

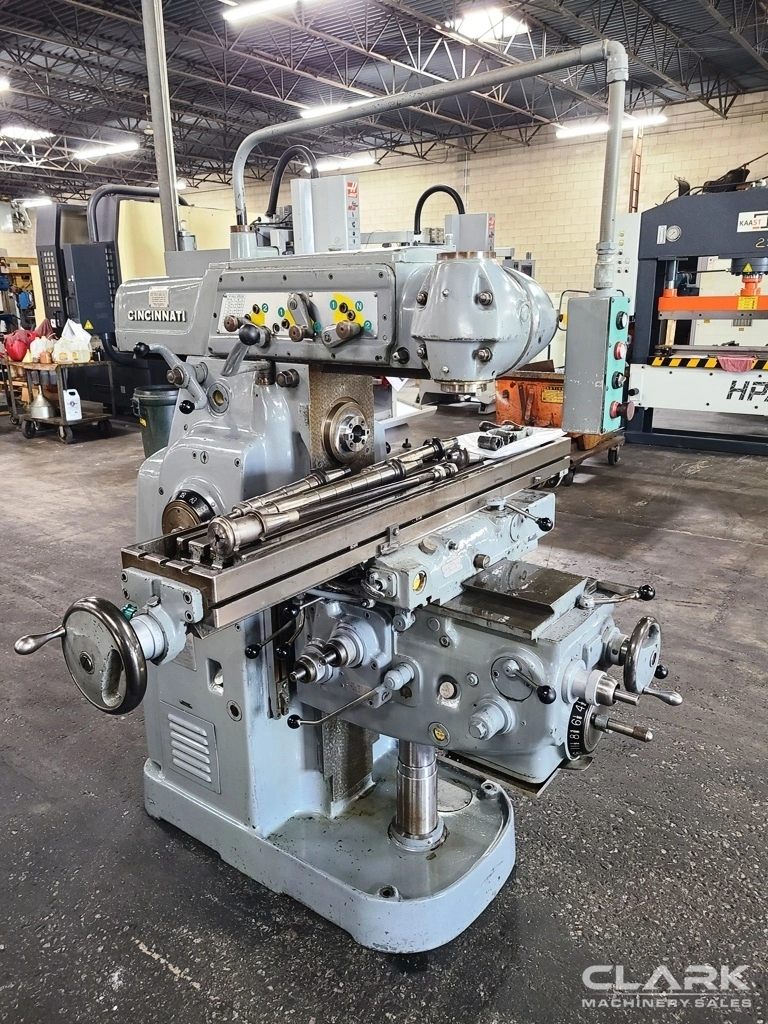

CINCINNATI HORIZONTAL / VERTICAL MILLING MACHINE

Sell Your CINCINNATI HZ VT MILL
MILLERS, UNIVERSAL
Manufacturer:
CINCINNATI
Model:
HZ VT MILL
Year:
1957
Stock #:
498910
CINCINNATI HORIZONTAL/VERTICAL MILLING MACHINE, Model HZ VT MILL, Year 1957, in used condition. Features: 54" x 9" table, 16 spindle speeds (25-1500 RPM), 40 NS taper, lubrication system, 3 HP motor, and assorted 40 taper arbors. Prompt inspection and purchase available.

TABLE SIZE............. 54" X 9"
T SLOTS................ (3) X 11/16"
DISTANCE BTW T SLOTS... 2-5/16"
TABLE LONGITUD TRAVEL.. 28"
TABLE CROSS TRAVEL..... 10"
TABLE VERTICAL TRAVEL.. 16-1/2"
CENTERLINE OF SPINDLE TO TABLE TOP: 0" MIN TO 16-1/2" MAX
SPINDLE TAPER.......... 40 NS
SPINDLE SPEEDS......... 25 TO 1500 RPM
FEEDS.................. 16
LONG AND CROSS......... 1/4" TO 30" PER MIN
VERTICAL............... 1/8" X 15" PER MIN
POWER RAPID TRAVERSE
LONG AND CROSS......... 150" PER MINUTE
VERTICAL............... 75" PER MINUTE

INDEPENDENT OVERARM SPINDLE (IOS)
TAPER IN HEAD: 40 NS
SPINDLE SPEEDS: (8) 100 TO 1530 RPM
UNIVERSAL MILLING HEAD (NO QUILL FEED)
2 HP MOTOR
REAR/SIDE CONTROLS
CONVENTIONAL OR CLIMB MILLING
RAPIDS
LUBRICATION SYSTEM
BASE MOUNTED COOLANT PUMP
ASSORTED 40 TAPER ARBORS
ALL SOFT SCRAPED WAYS IN VERY GOOD CONDITION
SPINDLE TAPERS IN EXCELLENT CONDITION
VERY GOOD OVERALL RUNNING CONDITION
NO AUTOMATIC TABLE CYCLES ON THIS MILL
MISSING (1) TABLE FEED TRIP DOG
3 HP MAIN MOTOR
WIRED FOR 3 PHASE, 60 CYCLE, 220 VOLTS

** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
