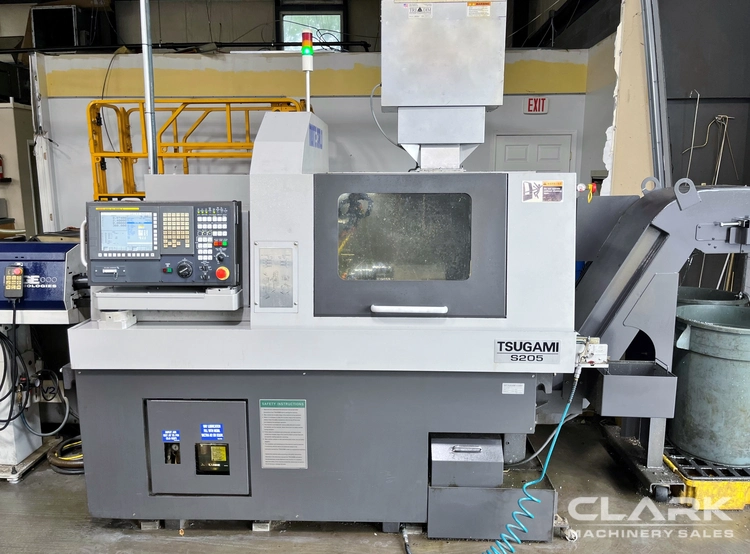

2018 TSUGAMI S205 & EDGE BAR FEEDER

20mm, Fanuc 32iMB Control, Edge Minuteman 320 Bar Feeder, MP Systems High-Pressure Coolant Unit, Mist Collector, FireTrace, Chip Conveyor & Chucker Kit. This 2018 Tsugami S205 CNC swiss lathe is in plant, under power and available immediately.

FANUC 32iMB CONTROL
EDGE TECHNOLOGIES MINUTEMAN 320 SE MAGAZINE BAR FEEDER (8’)
CHUCKER KIT OPTION (ALLOWS MACHINE TO SWITCH FROM GUIDE BUSHING TO NON-GUIDE BUSHING)
MP SYSTEMS V2 SWISS HIGH-PRESSURE COOLANT SYSTEM (2,000 PSI)
FIRETRACE FIRE SUPPRESSION
TRI-MIST MIST COLLECTOR
PARTS CATCHER
PARTS CONVEYOR
CHIP CONVEYOR
SUB SPINDLE AIR BLAST
FULL C-AXIS MAIN & SUB SPINDLE
SIMULTANEOUS MACHINING OF MAIN & SUB SPINDLE
(1) ADJUSTABLE FRONT MILL FACE UNIT (WITH (2) MAIN LIVE & (2) SUB LIVE STATIONS)
BACK WORKING ATTACHMENT TOOL
13MM PUSHER & CHANNELS
20MM PUSHER & CHANNELS

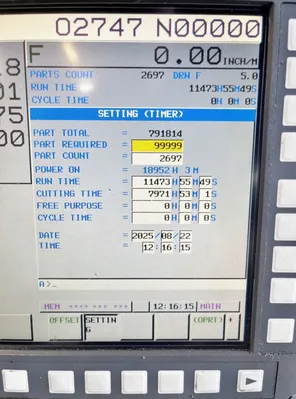

** AS OF AUGUST 2025, CUTTING TIME –7,971 HOURS

** MACHINE CUT PRIMARILY ALUMINUM & BRASS
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

** INSTALLED IN CUSTOMER’S SHOP IN 2021, WAS A DEMO MACHINE PRIOR TO THEN
