CINCINNATI HEALD 2EF73 CNC BALL GRINDER

CINCINNATI HEALD 2EF73 CNC BALL GRINDER

Sell Your CINCINNATI HEALD 2EF73
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your CINCINNATI HEALD 2EF73

Overview

Type:
Internal Grinders
Manufacturer:
CINCINNATI HEALD
Model:
2EF73
Stock #:
498923
Status:
For Sale

Description

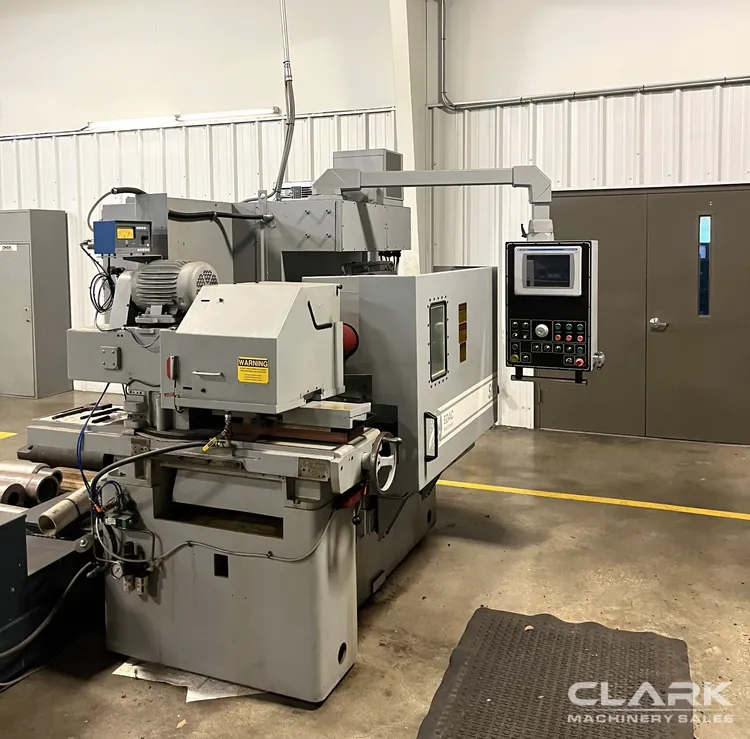

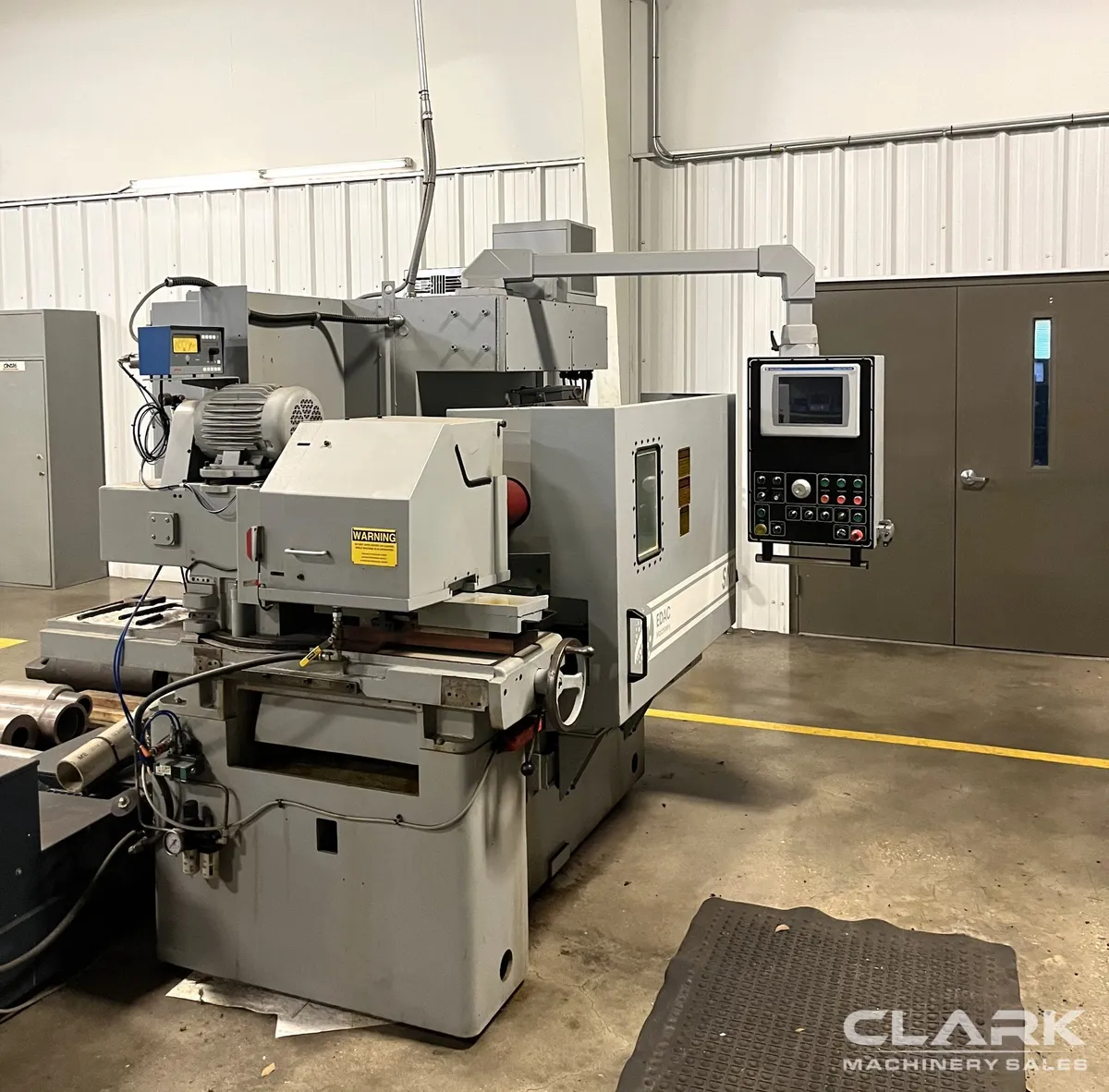

Cincinnati Heald 2EF73 CNC Ball Grinder - Used internal grinder with 23" max swing over workhead guard, 16" grinding stroke, and CNC control. Features Allen Bradley PanelView Plus 1000, Marposs P3ME gauging, and Kinetix 6500 servo drives. Rebuilt and retrofit in 2011.

MAX SWING OVER WORKHEAD GUARD23"584.2 mm
MAX SWING ID SPINDLE TO MACHINE FRAME20"508 mm
WORKHEAD SWIVELUP TO 90 DEGREESUP TO 90 DEGREES
GRINDING STROKE16"406.4 mm
WORKHEAD SPEED500 RPM500 RPM
WHEEL HEAD SPEED3,985 RPM3,985 RPM
TRAVEL - LONG20"508 mm
ControlCNCCNC

ALLEN BRADLEY PANELVIEW PLUS 1000 CNC CONTROL 2-XIS CNC CONTROL
6000 RPM SPINDLE REBUILT BY GROS-ITE INDUSTRIES
MARPOSS P3ME GAUGING SYSTEM
GRAYMILLS BFTS80-F PAPER FILTER SYSTEM (NEW: 2013)
KINETIX 6500 SERVO DRIVES ON X AND Z AXES
ALLEN-BRADLEY POWERFLEX 525 HARDWARE

THIS CINCINNATI-HEALD GRINDER WAS REBUILT AND RETROFIT BY SNI (SERVICE NETWORK INC) IN 2014. ELECTRICS AND CONTROL ARE ENTIRELY NEW AS OF 2014 FOR A COST OF $233,000.

TWO MACHINES AVAILABLE AT SAME LOCATION: ONE SET UP FOR SEAT GRINDING, THE OTHER FOR BALL GRINDING.
