Used 1997 MAKINO A55 DELTA | Horizontal Machining Centers

Sell Your MAKINO A55 DELTA
410.252.5494
Sales@ClarkMachinerySales.com
$34,500.00 USD

Or as low as $683.44 USD/month over 60 months

ConditionUsed
1 available
Sell Your MAKINO A55 DELTA

Overview

Type:
Horizontal Machining Centers
Manufacturer:
MAKINO
Model:
A55 DELTA
Year:
1997
Stock #:
498965
Status:
For Sale

Description

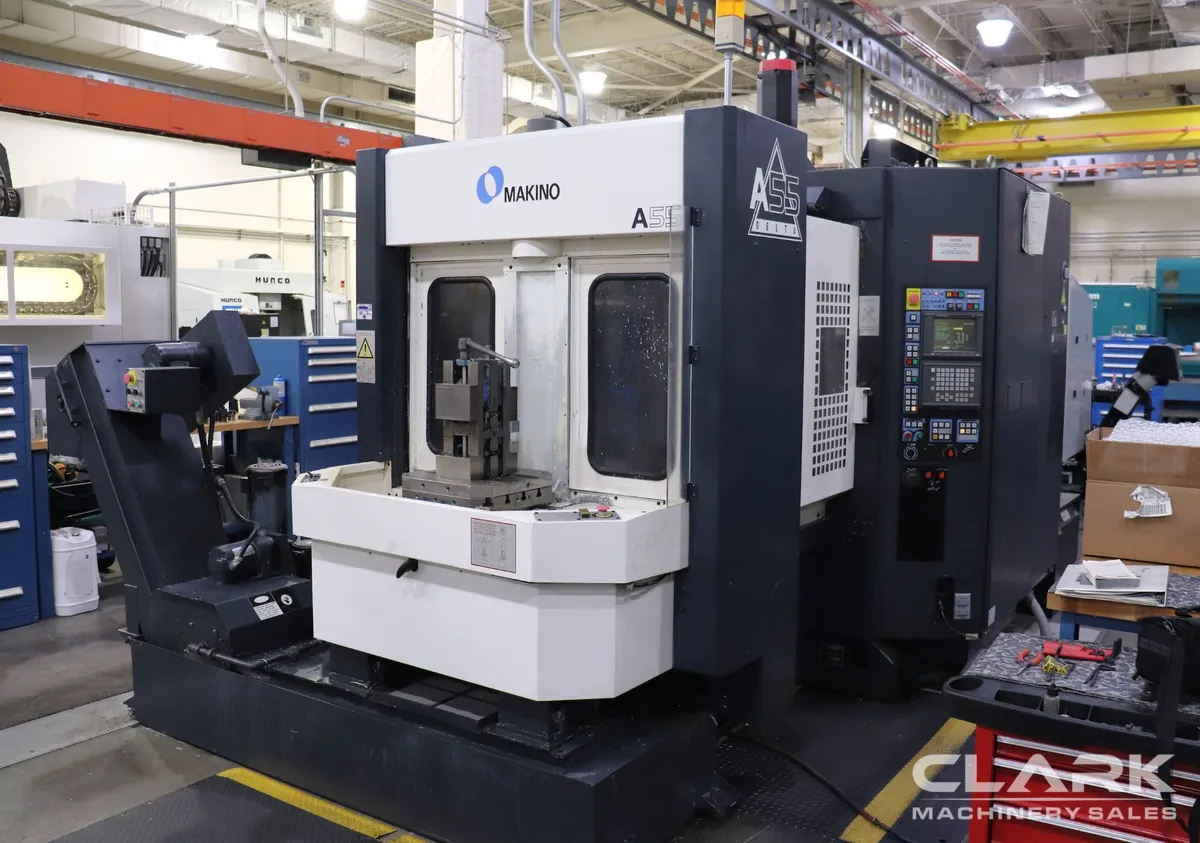

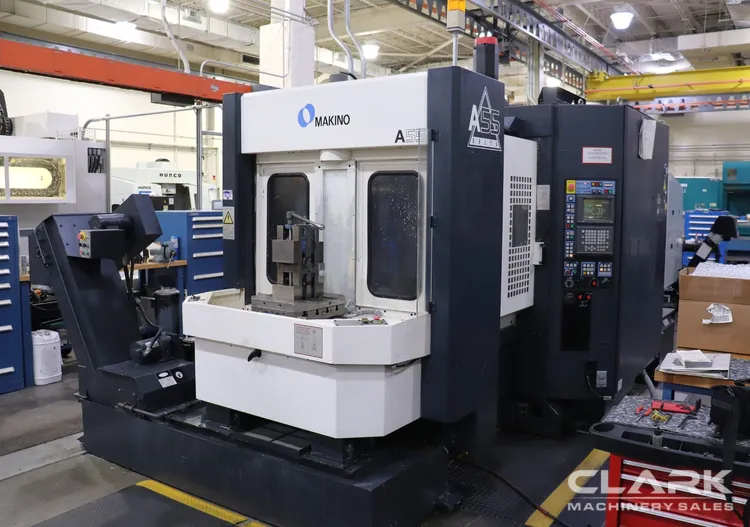

1997 MAKINO A55 DELTA Horizontal Machining Center. Used, well-maintained from government facility and equipped with a FANUC/MAKINO Pro 3 control, 20,000 RPM HSK spindle, through spindle coolant, extra pallet, and many advanced features including 4th axis, spindle chiller, and helical interpolation. Ready for immediate inspection and purchase.

PALLET WIDTH15.75"400.05 mm
PALLET LENGTH15.75"400.05 mm
PALLET INDEXINGFULL 4THFULL 4TH
NUMBER OF PALLETS22
MAX WORKPIECE WEIGHT880 lb399.2 kg
X-AXIS TRAVEL22"558.8 mm
Y-AXIS TRAVEL22"558.8 mm
Z-AXIS TRAVEL22"558.8 mm
SPINDLE SPEED20,000 RPM20,000 RPM
SPINDLE MOTOR30 hp22.4 kW
SPINDLE TAPERHSK 63AHSK 63A
TOOL POSITIONS (ATC)4040
RAPID TRAVERSE RATE1,575 in/min.4,000.5 cm/min.
Dimensions156" X 108" X 119"156" X 108" X 119"
Weight23,000 LBS23,000 LBS

FANUC/MAKINO PROFESSIONAL 3 CONTROL
1 EXTRA PALLET
HIGH TORQUE, 2-RANGE SPINDLE
WORK LIGHT
THROUGH SPINDLE COOLANT
8-NOZZLE SPINDLE NOSE COOLANT
SIDE DISCHARGE LIFT UP CHIP CONVEYOR
RIGID TAPPING
X,Y,Z SCALES
FULL 4TH AXIS
HELICAL INTERPOLATION
SPINDLE CHILLER
TRANSFORMER
WIRED FOR 3 PHASE, 60 CYCLE, 460 VOLTS

NOTE: MACHINE CAME OUT OF GOVERNMENT FACILITY. LIGHTLY USED.

REPLACEMENT COST FOR ABOVE EQUIPPED MACHINE IF PURCHASE NEW: $425,000

** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
