2015 HURCO VMX84I | Vertical Machining Centers

Sell Your HURCO VMX84I
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your HURCO VMX84I

Overview

Type:
Vertical Machining Centers
Manufacturer:
HURCO
Model:
VMX84I
Year:
2015
Stock #:
498971
Status:
For Sale

Description

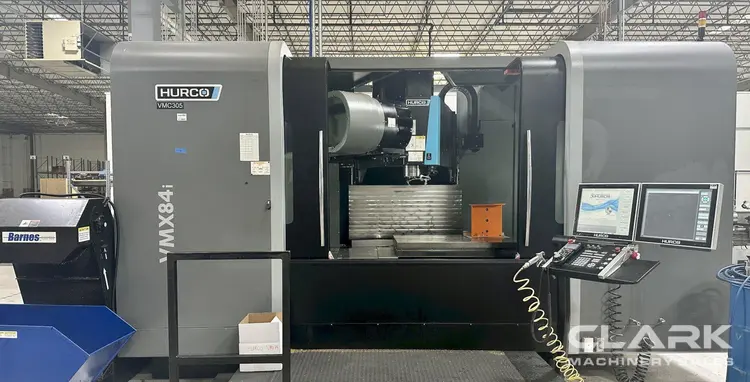

HURCO VMX84I Vertical Machining Center, 2015 model, used. Specifications: 86" x 34" table, 5,000 lb capacity, 84" X-axis, 34" Y-axis, 30" Z-axis, 12,000 RPM spindle, 24 hp motor, CAT 40 taper. Equipped with WINMAX CNC, 4th axis rotary table, high pressure coolant system, and more. 2138 spindle hours.

TABLE LENGTH86"2,184.4 mm
TABLE WIDTH34"863.6 mm
TABLE CAPACITY5,000 lb2,268 kg
X-AXIS TRAVEL84"2,133.6 mm
Y-AXIS TRAVEL34"863.6 mm
Z-AXIS TRAVEL30"762 mm
DISTANCE FROM WORK FACE TO SPINDLE35.8"909.32 mm
SPINDLE SPEED12,000 RPM12,000 RPM
SPINDLE MOTOR24 hp17.9 kW
SPINDLE TAPERCAT 40 (BIG PLUS)CAT 40 (BIG PLUS)
TOOL CAPACITY (ATC)4040
RAPID TRAVERSE - X AXIS709 in/min.18 m/min.
RAPID TRAVERSE - Y AXIS709 in/min.18 m/min.
RAPID TRAVERSE - Z-AXIS530 in/min.13.5 m/min.
CUTTING FEEDRATE530 ipm
APPROX MACHINE WEIGHT40,000 lb18,143.7 kg
APPROX MACHINE DIMENSIONS298" X 175" X 128"298" X 175" X 128"

HURCO WINMAX DUAL SCREEN CNC CONTROL
HURCO 10" H320 4TH AXIS ROTARY TABLE
LNS CHIP BLASTER HIGH PRESSURE COOLANT SYSTEM
THROUGH SPINDLE COOLANT
GRUNDFOS PUMP FOR WASHDOWN
COOLANT FILTRATION SYSTEM
40 ATC SIDEMEOUNT TOOL CHANGER
RENISHAW PART AND TOOL PROBE
BARNES CHIP CONVEYOR

** SPINDLE HOURS - 2138 HOURS (SEE PHOTO)
** REMOVED FROM CLEAN HIGH-TECH SHOP

** NEW REPLACEMENT COST AS EQUIPPED - $290,000
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
