2014 MAKINO EDNC85
ConditionUsed
1 available

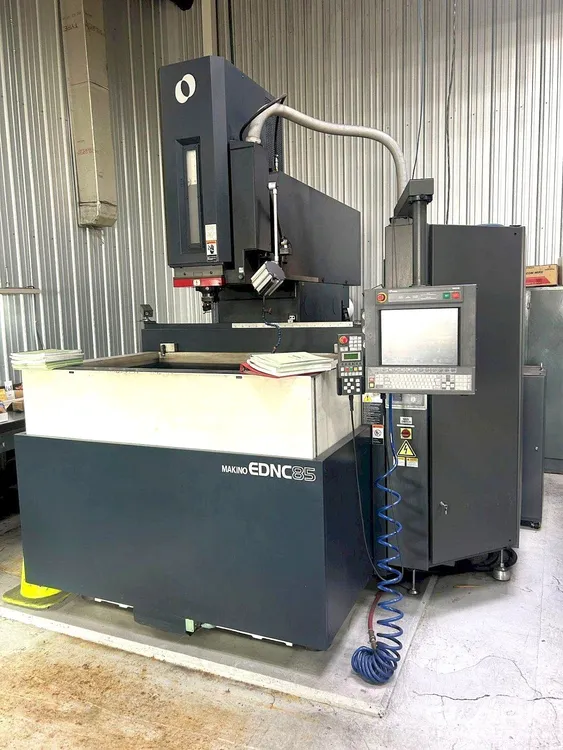

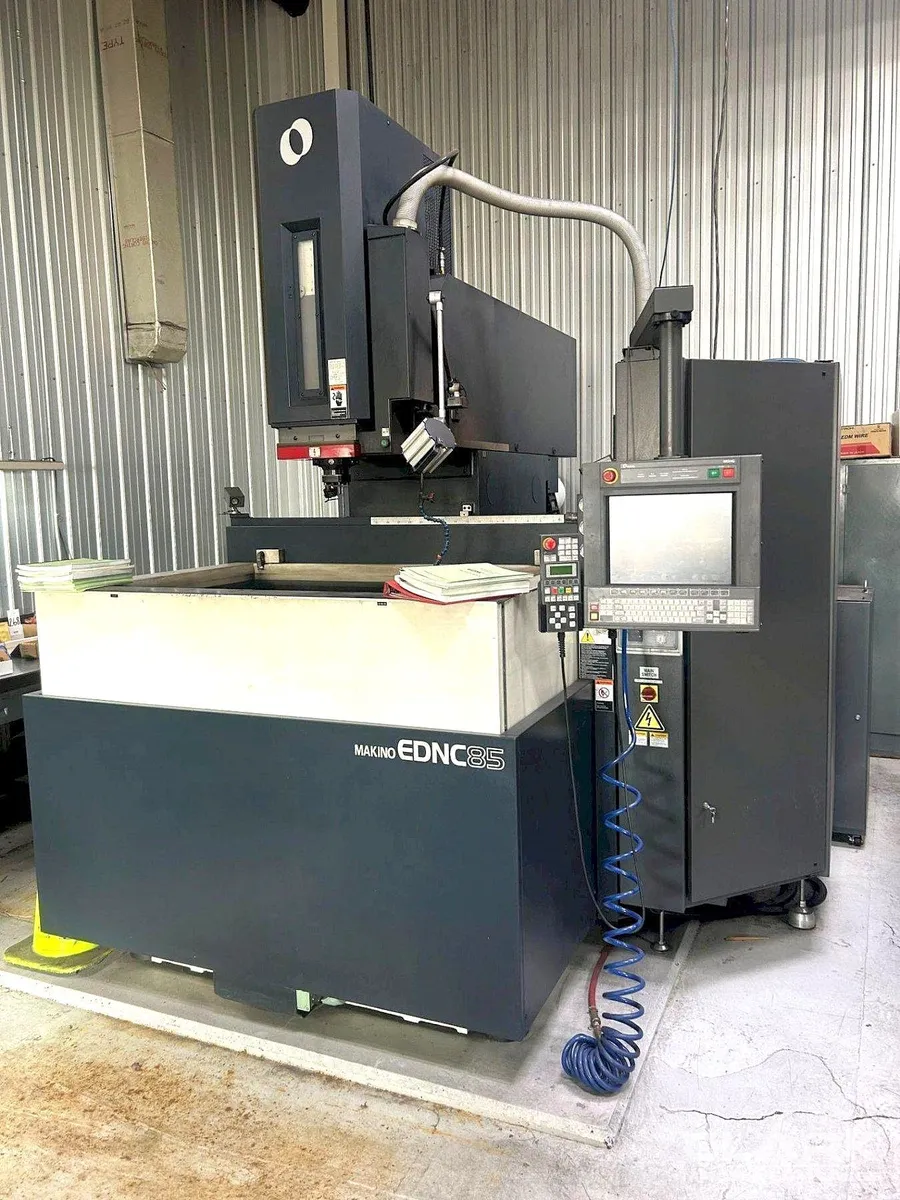

MAKINO EDNC85 EDM, 2014, featuring 31.49" X-axis, 19.68" Y-axis, 15.74" Z-axis, 43.3" x 27.55" work table, 6,615 lb max load, 55.1" x 35.4" x 19.68" work tank, 1,200 gal dielectric, MGH6 CNC control, drop tank, magnetic chuck, fluid chiller, transformer.
MAKINO MGH6 CNC CONTROL
DROP TANK DESIGN
6" X 12" WALKER MAGNETIC CHUCK BOLTED TO TABLE
FLUID CHILLER
TRANSFORMER
ALL AVAILABLE MANUALS
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
MAKINO EDNC85 EDM, 2014, featuring 31.49" X-axis, 19.68" Y-axis, 15.74" Z-axis, 43.3" x 27.55" work table, 6,615 lb max load, 55.1" x 35.4" x 19.68" work tank, 1,200 gal dielectric, MGH6 CNC control, drop tank, magnetic chuck, fluid chiller, transformer.
Imperial
| X-AXIS TRAVEL | 31.49" |
| Y-AXIS TRAVEL | 19.68" |
| Z-AXIS TRAVEL | 15.74" |
| WORK TABLE WIDTH | 43.3" |
| WORK TABLE LENGTH | 27.55" |
| MAX TABLE LOAD CAPACITY | 6,615 lb |
| WORK TANK WIDTH | 55.1" |
| WORK TANK LENGTH | 35.4" |
| WORK TANK HEIGHT | 19.68" |
| Dimensions | 120" X 144" X 144" |
| Weight | 15,000 LBS |
MAKINO MGH6 CNC CONTROL
DROP TANK DESIGN
6" X 12" WALKER MAGNETIC CHUCK BOLTED TO TABLE
FLUID CHILLER
TRANSFORMER
ALL AVAILABLE MANUALS
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
