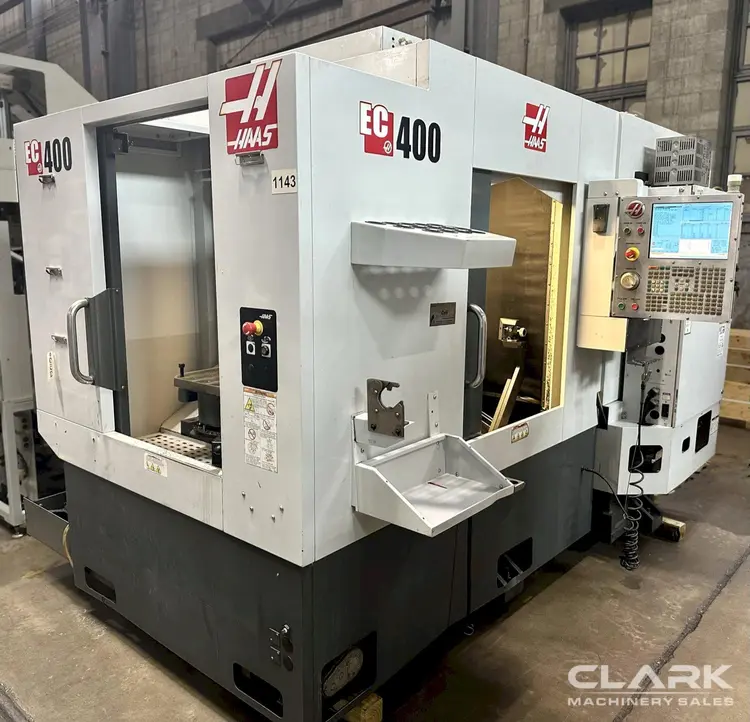

2011 HAAS EC-400 | Horizontal Machining Centers

Sell Your HAAS EC-400
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your HAAS EC-400

Overview

Type:
Horizontal Machining Centers
Manufacturer:
HAAS
Model:
EC-400
Year:
2011
Stock #:
498975
Status:
For Sale

Description

HAAS EC-400 Horizontal Machining Center (2011) with 15.75" pallet dimensions, 20" XYZ travel, 8,000 RPM spindle speed, CAT 40 taper. Equipped with full contouring, thru spindle coolant, chip conveyor, programmable nozzle, and Renishaw.

PALLET WIDTH15.75"400.05 mm
PALLET LENGTH15.75"400.05 mm
PALLET INDEXINGFULL 4THFULL 4TH
NUMBER OF PALLETS22
MAX WORKPIECE WEIGHT1,000 lb453.6 kg
X-AXIS TRAVEL20"508 mm
Y-AXIS TRAVEL20"508 mm
Z-AXIS TRAVEL20"508 mm
SPINDLE SPEED8,000 RPM8,000 RPM
SPINDLE MOTOR20 hp14.9 kW
SPINDLE TAPERCAT 40CAT 40
TOOL POSITIONS (ATC)2424
RAPID TRAVERSE RATE1,000 in/min.2,540 cm/min.
CUTTING FEEDRATE500 in/min.1,270 cm/min.
Weight22000 LBS22000 LBS

FULL CONTOURING ON PALLETS
THROUGH SPINDLE COOLANT
CHIP AUGER
PROGRAMMABLE COOLANT NOZZLE & FLOOD COOLANT
COOLANT SYSTEM
RENISHAW

** AVAILABLE FOR IMMEDIATE INSPECTION &PURCHASE
