| TABLE WIDTH | 14" | 355.6 mm |
| TABLE LENGTH | 76" | 1,930.4 mm |
| MAX WEIGHT OF WORKPIECE | 2,200 lb | 997.9 kg |
| TABLE TRAVEL (X-AXIS) | 60" | 1,524 mm |
| SADDLE TRAVEL (Y-AXIS) | 23" | 584.2 mm |
| HEAD TRAVEL (Z-AXIS) | 20.5" | 520.7 mm |
| QUILL DIAMETER | 5.06" | 128.52 mm |
| SPINDLE MOTOR | 7.5 hp | 5.6 kW |
| SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| SPINDLE TAPER | #40 | #40 |
| Weight | 7,975 LBS | 7,975 LBS |

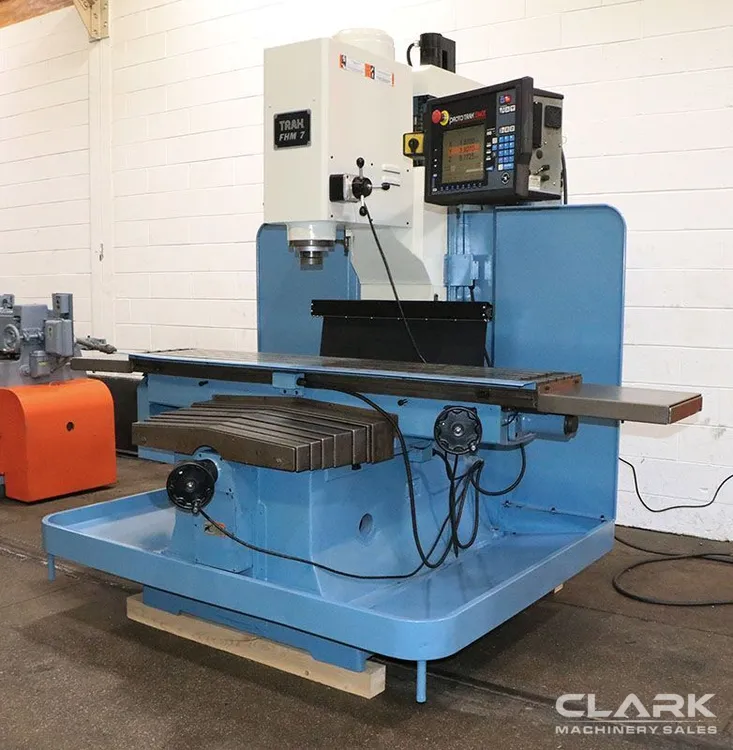

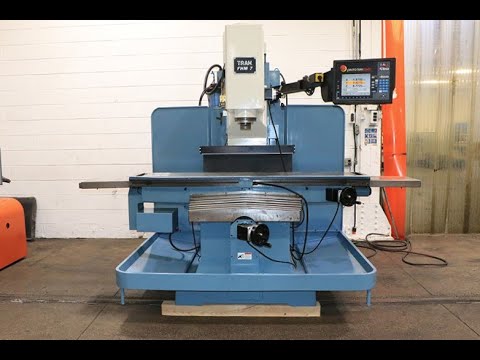

PROTO-TRAK MODEL: SMX CONTROL,
WINDOWS OPERATING SYSTEM,
ADVANCED FEATURES, PROGRAMMABLE E HEAD, TRAKing
10.4" LCD SCREEN, RS232 PORT& RJ45 CONNECTOR,
AUTO GEOMETRY ENGINE, LINEAR & CIRCULAR INTERPOLATION,
TWO OR THREE AXIS, ROTATE OR MIRROR, (2) USB PORTS,
TRAKing/ELECTRONIC HANDWHEELS
BALL SCREWS & AC SERVO MOTORS FOR X,Y & Z AXES
YASKAWA SPINDLE DRIVE
TORQUE-RITE POWER DRAW BAR
HARDENED & GROUND BOX WAYS
AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM w/CHIP PAN & SPLASH SHIELD
7.5 HORSE POWER SPINDLE MOTOR & INVERTER
MACHINE TABLE REGROUND & NEW TURCITE PUT ON MARCH 2025
REPLACEMENT COST FOR ABOVE EQUIPPED MACHINE IF PURCHASED NEW: $71,000
MACHINE CAN BE INSPECTED UNDER POWER AND IS AVAILABLE FOR IMMEDIATE SALE.
