2006 KITAMURA MYCENTER 7X, 15,000 RPM

2006 KITAMURA MYCENTER 7X, 15,000 RPM

Sell Your KITAMURA MYCENTER 7X #40
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your KITAMURA MYCENTER 7X #40

Overview

Type:
Vertical Machining Centers
Manufacturer:
KITAMURA
Model:
MYCENTER 7X #40
Year:
2006
Stock #:
499171
Status:
For Sale

Description

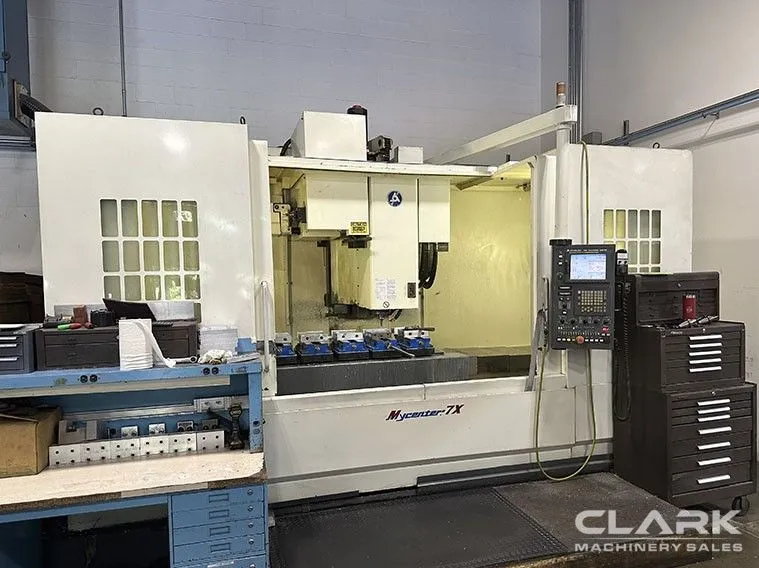

KITAMURA MYCENTER 7X 40 Taper Vertical Machining Center, 2006, used. Table 66.9" x 25.6", travels X/Y/Z: 60.2"/25.6"/27", spindle 15,000 RPM, 30 hp, CAT 40 taper. FANUC CNC, geared head, spindle chiller, ATC, chip conveyor. Ready to inspect and purchase.

TABLE LENGTH66.9"1,699.3 mm
TABLE WIDTH25.6"650.24 mm
X-AXIS TRAVEL60.2"1,529.1 mm
Y-AXIS TRAVEL25.6"650.24 mm
Z-AXIS TRAVEL27"685.8 mm
SPINDLE SPEED15,000 RPM15,000 RPM
SPINDLE MOTOR30 hp22.4 kW
SPINDLE TAPERCAT 40CAT 40
TOOL CAPACITY (ATC)3030
RAPID TRAVERSE - X AXIS945 in/min.24 m/min.
RAPID TRAVERSE - Y AXIS945 in/min.24 m/min.
RAPID TRAVERSE - Z-AXIS787 in/min.20 m/min.
CUTTING FEEDRATE472 ipm
Weight30,000 LBS30,000 LBS

FANUC 16IMB CNC CONTROL
REMOTE JOG HANDLE
GEARED HEAD
BOX WAY CONSTRUCTION
SPINDLE CHILLER
DOUBLE ARM, SIDE MOUNT AUTOMATIC TOOL CHANGER
DOUBLE AUGERS
CHIP CONVEYOR

** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
