Used 2005 HAAS VF-3B | Vertical Machining Centers

Sell Your HAAS VF-3B
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Request Financing
Sell Your HAAS VF-3B

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-3B
Year:
2005
Stock #:
499250
Status:
For Sale

Description

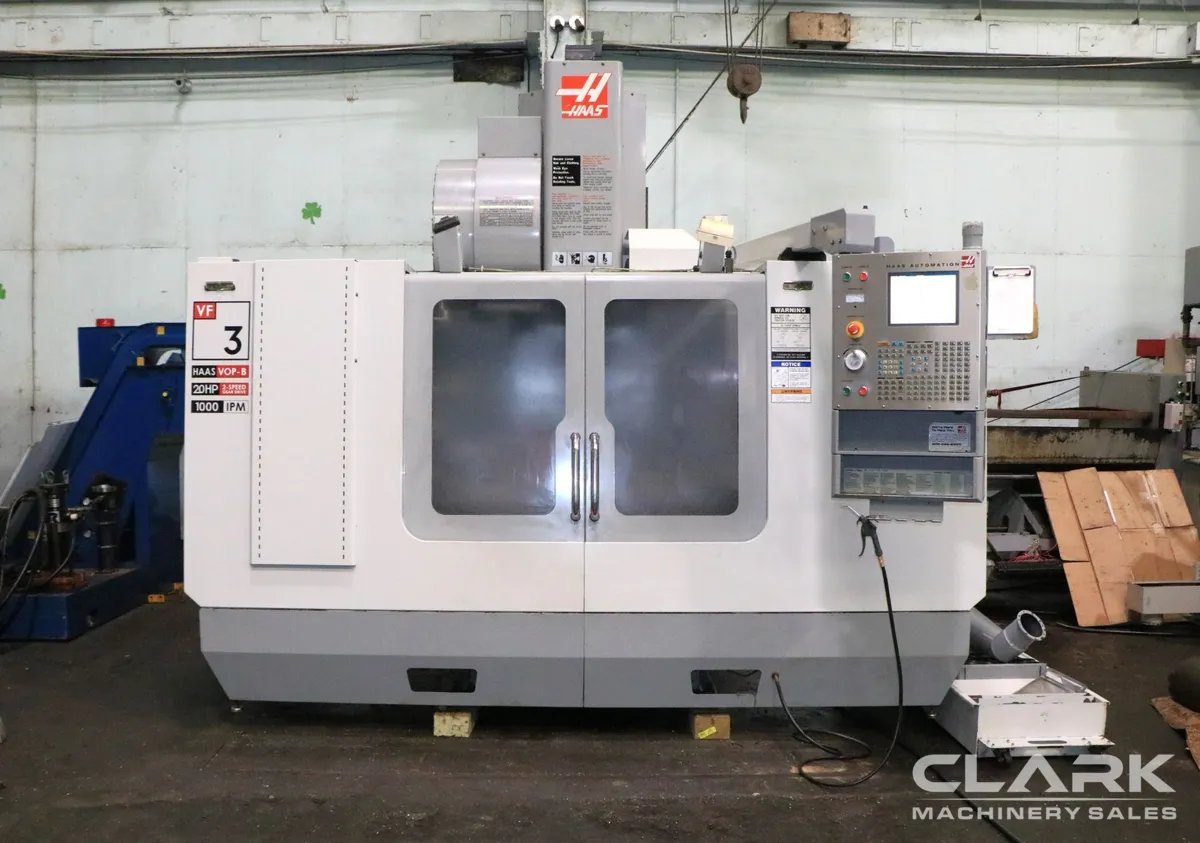

2005 HAAS VF-3B Vertical Machining Center with 48" x 18" table, 40"x20"x25" travel, and 7,500 RPM spindle. Features include gearbox, chip auger, high intensity lighting, and 24 ATC. Servo: 13,432 hrs, Motion: 10,237 hrs, Spindle: 11,297 hrs.

TABLE LENGTH48"1,219.2 mm
TABLE WIDTH18"457.2 mm
TABLE CAPACITY3,500 lb1,587.6 kg
X-AXIS TRAVEL40"1,016 mm
Y-AXIS TRAVEL20"508 mm
Z-AXIS TRAVEL25"635 mm
SPINDLE SPEED7,500 RPM7,500 RPM
SPINDLE MOTOR20 hp14.9 kW
SPINDLE TAPERCAT 40CAT 40
TOOL CAPACITY (ATC)2424
MAX RAPIDS1,000 in/min.25.4 m/min.
APPROX MACHINE WEIGHT12,500 lb5,669.9 kg
APPROX MACHINE DIMENSIONS110" X 118" X 117.5"110" X 118" X 117.5"

2-SPEED GEARBOX
CHIP AUGER
HIGH INTENSITY LIGHTING
SIDEMOUNT TOOL CHANGER (24 ATC)
PROGRAMMABLE COOLANT NOZZLE
ADVANCED TOOL MANAGEMENT
4TH AXIS DRIVE AND WIRING
RIGID TAPPING
SPINDLE LOAD MONITOR
ROTATION & SCALING
M19 SPINDLE ORIENTATION
QUICK CODE

HOURS AS OF 2/2025:
- SERVO TIME: 13,435 HOURS
- MOTION TIME: 10,237 HOURS
- SPINDLE TIME: 11,297 HOURS

REPLACEMENT COST FOR ABOVE EQUIPPED MACHINE IF PURCHASE NEW: $109,665

MACHINE IS AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE
