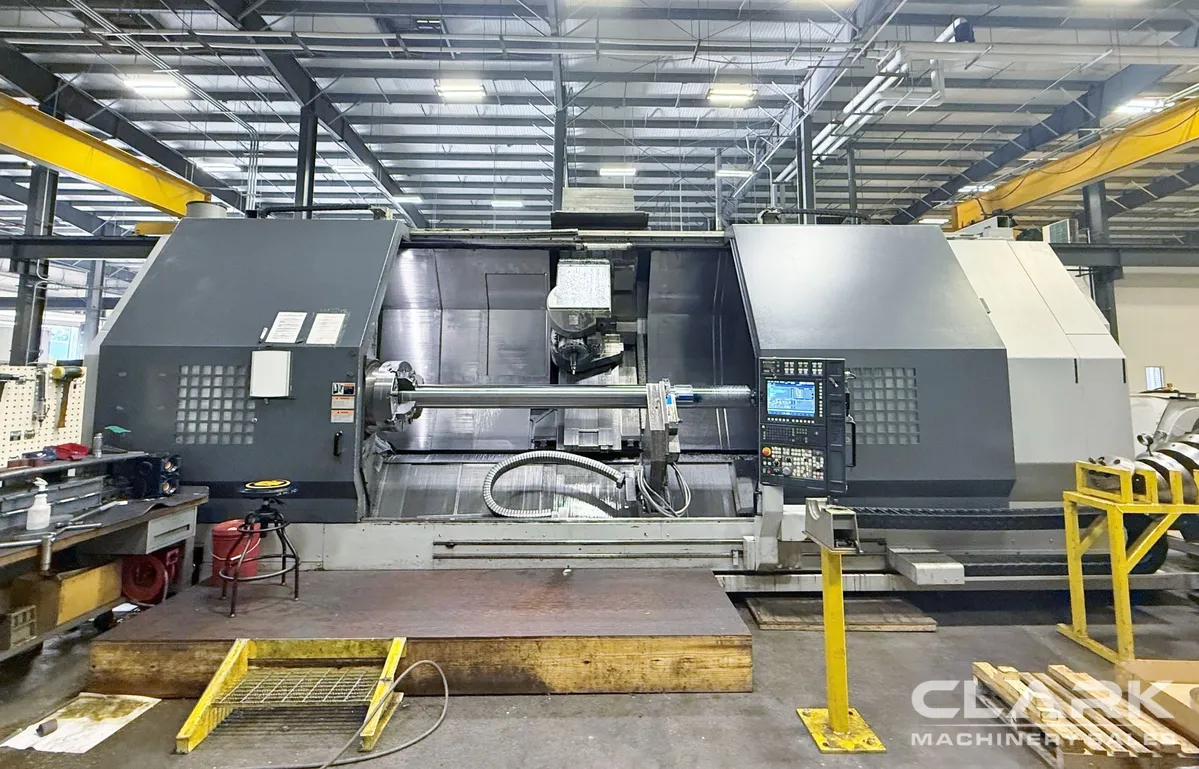

| MAX CUTTING DIAMETER | 37" | 939.8 mm |
| MAX CUTTING LENGTH | 120" | 3,048 mm |
| X-AXIS TRAVEL | 39.6" | 1,005.8 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 11.81 (+/- 5.9") | 11.81 (+/- 5.9") |
| Z-AXIS TRAVEL | 124" | 3,149.6 mm |
| CHUCK SIZE | 24" | 609.6 mm |
| SPINDLE BORE | 10.8" | 274.32 mm |
| SPINDLE NOSE | A1-20 | A1-20 |
| SPINDLE MOTOR | 50 hp | 37.3 kW |
| SPINDLE SPEED | 1,000 RPM | 1,000 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 944 in/min. | 24 m/min. |
| RAPID TRAVERSE RATE - Y-AXIS | 944 in/min. | 24 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 787 in/min. | 20 m/min. |
| B-AXIS SPINDLE MOTOR | 20 hp | 14.9 kW |
| B-AXIS MILLING SPEED | 6,000 RPM | 6,000 RPM |
| B-AXIS SPINDLE TAPER | CAPTO C8 | CAPTO C8 |
| B-AXIS TOOL POSITIONS | 120 | 120 |
| B-AXIS TRAVEL | -120 DEGREES/+105 DEGREES | -120 DEGREES/+105 DEGREES |
| Weight | 95000 | 95000 |
COMPLETELY REBUILT MILLING SPINDLE IN 2023
MORI SEIKI MSX-502III CONTROL
B-AXIS MILLING SPINDLE (6,000 RPM, CAPTO C8)
Y-AXIS
50 HP TURNING SPINDLE
24”, 4-JAW BISON MANUAL CHUCK
10.8” SPINDLE BORE
3000MM/120” CUTTING LENGTH
120 TOOL POSITIONS
ROHM SLZ-325 HYDRAULIC STEADY REST (1.5” – 9.4” CAPACITY)
LONG BORING BAR ATTACHMENT (NEEDS REALIGNMENT)
TAILSTOCK
CHIP CONVEYOR
COOLJET HIGH-PRESSURE COOLANT UNIT (1,000 PSI)
ROYAL MIST COLLECTOR (FX1200)
** MACHINE CUT PRIMARILY 4140 STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $1,000,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** B-AXIS MILLING SPINDLE WAS SENT TO JAPAN & COMPLETELY REBUILT IN 2023
** LONG BORING BAR ATTACHMENT NEEDS TO BE REALIGNED IN ORDER TO FUNCTION
** THE MACHINE HAS ISSUES WHEN DOING WRAP MILLING. IT CANNOT MAINTAIN TOLERANCES LESS THAN .02”.
** HOWEVER, THE MILLING IS FULLY FUNCTIONAL & CAN HIT .002” TOLERANCE WITH THE C-AXIS BRAKE ENGAGED
This equipment has been sold. Similar equipment available now is shown below.
