| MAX CUTTING DIAMETER | 11.75" | 298.45 mm |
| MAX CUTTING LENGTH | 22.5" | 571.5 mm |
| X-AXIS TRAVEL | 8.4" | 213.36 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 2" | +/- 2" |
| Z-AXIS TRAVEL | 22.5" | 571.5 mm |
| C-AXIS INDEXING | FULL C-AXIS | FULL C-AXIS |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.5" | 63.5 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 5" | 127 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| TURRET CAPACITY | 24 | 24 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 4,000 RPM | 4,000 RPM |
HAAS NEXTGEN CONTROL
Y-AXIS
LIVE MILLING
SUB SPINDLE
8”, 3-JAW HYDRAULIC CHUCK (MAIN)
5”, 3-JAW SAMCHULLY (HS-05) HYDRAULIC CHUCK (SUB)
24-POSITION BMT65 TURRET
CHUCK AIR BLAST (MAIN SPINDLE)
AUTO DOOR
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
CHIP TRAY FILTER KIT

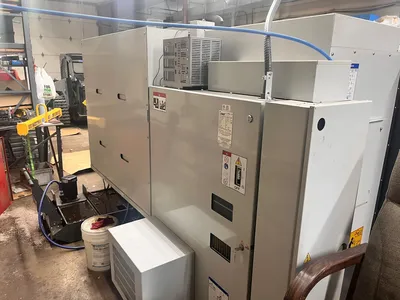

CNC CONTROL CABINET COOLER
EARLY POWER-FAILURE DETECTION MODULE
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
HAASCONNECT: REMOTE MONITORING
WIFI CONNECT FOR THE HAAS CONTROL
(1) RADIAL LIVE TOOL HOLDER
(1) AXIAL LIVE TOOL HOLDER
** AS OF JUNE 2025, FEED CUTTING TIME - 946 HOURS
** MACHINE IS LIKE-NEW
** FULL REPLACEMENT COST, AS EQUIPPED – $155,000
** MACHINE CUT PRIMARILY ALUMINUM & MILD STEEL (1018)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
